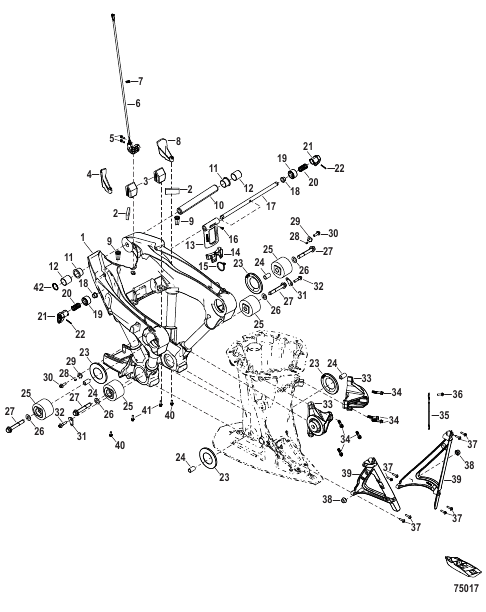

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0200063 |
FRAME Cradle Mount
|
1 |
|
| 10 |
895390 |
TILT PIN
|
1 |
superseded
|
| 11 |
8M0161423 |
BEARING SHOULDER
|
2 |
|
| 12 |
8M0180025 |
BEARING
|
2 |
|
| 13 |
8M0109693 |
BRACKET Tilt Lock
|
1 |
|
| 14 |
8M0076907 |
PAD Tilt Lock
|
1 |
|
| 15 |
816311T |
TIE STRAP (8.00 Inches)
|
1 |
|
| 16 |
889546 |
SCREW (M5 x 10)
|
1 |
|
| 17 |
880650003 |
SHAFT Tilt Lock
|
1 |
|
| 18 |
8806641 |
BEARING (.625 Inch)
|
2 |
|
| 19 |
889540A03 |
CLUTCH KIT
|
2 |
|
| 2 |
8M0147892 |
FOAM CRADLE
|
2 |
|
| 20 |
47968 |
SPRING
|
2 |
|
| 21 |
880649002 |
LEVER Tilt Lock
|
2 |
|
| 22 |
73194 |
PIN Roll (.125 x 1.12)
|
2 |
|
| 23 |
8M0200009 |
WASHER Mount Snubber
|
4 |
|
| 24 |
8M0147872 |
PIN DOWEL
|
4 |
superseded
|
| 25 |
8M0199859 |
MOUNT Lower
|
4 |
|
| 26 |
8M0142711 |
WASHER (28.4 MM x 1.6 MM)
|
4 |
superseded
|
| 27 |
8M0200068 |
SCREW
|
4 |
superseded
|
| 28 |
8M0200069 |
PIN Roll
|
2 |
|
| 29 |
8M0161417 |
WASHER Mount
|
2 |
|
| 3 |
8M0200064 |
BUMPER
|
2 |
|
| 30 |
8M0151155 |
SCREW Nylon Push In
|
2 |
|
| 31 |
8M0142816 |
WASHER Mount
|
2 |
|
| 32 |
4010735 |
SCREW (M8 x 35)
|
2 |
|
| 33 |
8M0205786 |
BRACKET Mount Support
|
2 |
superseded
|
| 34 |
8M0211309 |
SCREW M10 x 1.5 x 40 HEX FLG HD
|
6 |
|
| 35 |
8M0200071 |
CABLE ASSEMBLY
|
1 |
|
| 36 |
8M0103804 |
SCREW (M6 x 12 MM) Stainless Steel
|
1 |
|
| 37 |
8M0142822 |
SCREW (M6 x T30)
|
8 |
|
| 38 |
8M0142713 |
CAP Chap Support
|
2 |
|
| 39 |
8M0200072 |
COVER Bracket
|
1 |
|
| 4 |
8M0200065 |
INSERT Seal Port
|
1 |
|
| 40 |
8M0103806 |
SCREW (M6 x 20 MM) Stainless Steel
|
2 |
|
| 41 |
8M0103805 |
SCREW (M6 x 16mm) Stainless Steel
|
2 |
|
| 42 |
8M0038931 |
RING Retaining
|
1 |
|
| 5 |
40011107 |
SCREW (M5 x 16) Stainless Steel
|
2 |
|
| 6 |
8M0161231 |
SENSOR Trim Position
|
1 |
|
| 7 |
8M0214940 |
TIE STRAP
|
1 |
|
| 8 |
8M0200066 |
INSERT Seal Starboard
|
1 |
|
| 9 |
8M0142710 |
DRAIN Cowl
|
2 |
|
