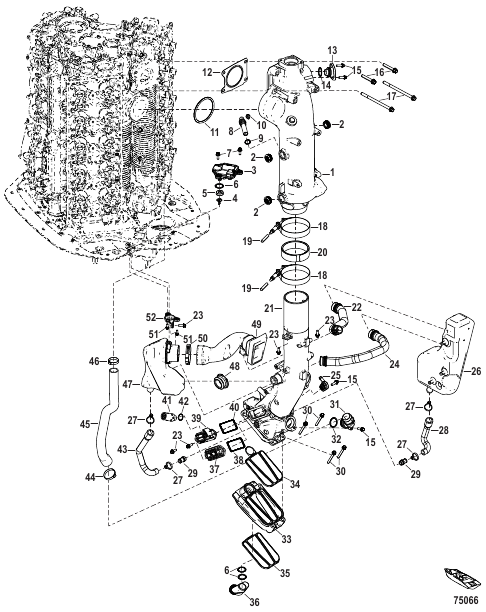

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0208127 |
VALVE ASSEMBLY Exhaust Pressure Relief Sportmaster Model
|
1 |
|
| - |
8M0200003 |
GASKET SET Powerhead
|
1 |
|
| - |
8M0203874 |
LONG BLOCK
|
1 |
|
| 1 |
8M0200049 |
MANIFOLD Exhaust
|
1 |
superseded
|
| 10 |
8M0103804 |
SCREW (M6 x 12 MM) Stainless Steel
|
1 |
|
| 11 |
8M0200017 |
O-RING
|
1 |
|
| 12 |
8M0200051 |
GASKET Exhaust Manifold
|
1 |
|
| 13 |
8M0200014 |
CAP Cam
|
1 |
|
| 14 |
86614 |
O-RING (1.049 x .103)
|
1 |
|
| 15 |
8M0103806 |
SCREW (M6 x 20 MM) Stainless Steel
|
4 |
|
| 16 |
8M0103816 |
SCREW M8 x 50 HEX FLG
|
2 |
|
| 17 |
8M0200052 |
SCREW M8 x 135 HX
|
2 |
|
| 18 |
8M0161579 |
CLAMP 93.7 MM
|
2 |
|
| 19 |
8M0148727 |
CAP Vinyl
|
2 |
|
| 2 |
8M0177458 |
PLUG
|
3 |
|
| 20 |
8M0172179 |
COUPLING Exhaust Assembly
|
1 |
|
| 21 |
8M0200053 |
PIPE Exhaust
|
1 |
|
| 22 |
8M0142766 |
HOSE Idle Relief
|
1 |
|
| 23 |
8M0103805 |
SCREW (M6 x 16mm) Stainless Steel
|
5 |
|
| 24 |
8M0142741 |
HOSE Crossover, Idle Relief
|
1 |
|
| 25 |
8M0157112 |
FITTING STRAINER
|
1 |
|
| 26 |
8M0200054 |
MUFFLER Starboard
|
1 |
|
| 27 |
816311T |
TIE STRAP (8.00 Inches)
|
4 |
|
| 28 |
8M0142739 |
HOSE Drain Starboard
|
1 |
|
| 29 |
8M0200055 |
FITTING Muffler Drain
|
2 |
|
| 3 |
8M0142768 |
ACTUATOR
|
1 |
|
| 30 |
8M0142726 |
SCREW (M6)
|
4 |
|
| 31 |
8M0142731 |
FITTING ELBOW
|
1 |
|
| 32 |
86614 |
O-RING (1.049 x .103)
|
1 |
|
| 33 |
8M0200153 |
EXHAUST SEAL CARRIER
|
1 |
superseded
|
| 34 |
8M0200160 |
SEAL Upper
|
1 |
|
| 35 |
8M0200201 |
SEAL Lower
|
1 |
|
| 36 |
8M0142732 |
FITTING ELBOW
|
1 |
|
| 37 |
8M0200058 |
PLATE Block off
|
1 |
|
| 38 |
8M0142720 |
SEAL
|
1 |
|
| 39 |
8M0205427 |
RELIEF VALVE CAP Sportmaster Model
|
1 |
|
| 4 |
8M0142773 |
COUPLER Exhaust Shaft
|
1 |
|
| 40 |
8M0142720 |
SEAL Sportmaster Model
|
1 |
|
| 41 |
8M0176569 |
POPPET VALVE ASSEMBLY Sportmaster Model
|
1 |
superseded
|
| 42 |
55801 |
O-RING Sportmaster Model
|
1 |
|
| 43 |
8M0142738 |
HOSE Drain Port
|
1 |
|
| 44 |
888988011 |
CLAMP (38.1 MM)
|
1 |
|
| 45 |
8M0142727 |
TUBE Water Outlet
|
1 |
|
| 46 |
8M0028753 |
CLAMP Oetiker (31.6 Diameter)
|
1 |
|
| 47 |
8M0200059 |
MUFFLER Port
|
1 |
superseded
|
| 48 |
8M0200060 |
GROMMET Idle Relief
|
1 |
|
| 49 |
8M0200061 |
GROMMET Outlet
|
1 |
|
| 5 |
8M0142769 |
SEAL Actuator
|
1 |
|
| 50 |
8M0200062 |
CLAMP
|
1 |
|
| 51 |
88552514 |
SCREW (M6 x 14 MM) Stainless Steel
|
2 |
|
| 52 |
8M0200140 |
BRACKET
|
1 |
|
| 6 |
25439 |
O-RING (.862 x .103)
|
3 |
|
| 7 |
8M0142708 |
SCREW (M6)
|
2 |
|
| 8 |
8M0200050 |
FITTING Exhaust
|
1 |
|
| 9 |
892446 |
O-RING (14 X 1.78 MM)
|
1 |
|
