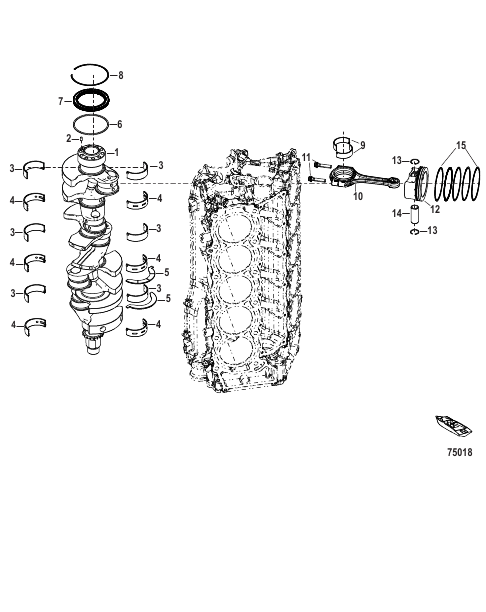

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0203874 |
LONG BLOCK
|
1 |
|
| - |
8M0200003 |
GASKET SET Powerhead
|
1 |
|
| 1 |
8M0200026 |
CRANKSHAFT
|
1 |
|
| 10 |
8M0200039 |
CONNECTING ROD ASSEMBLY
|
10 |
superseded
|
| 11 |
8M0206041 |
BOLT Connecting Rod
|
20 |
|
| 12 |
8M0200040 |
PISTON ASSEMBLY
|
10 |
|
| 13 |
8M0142383 |
CIRCLIP
|
20 |
|
| 14 |
NSS |
NOT SOLD SEPARATE Wrist Pin
|
10 |
|
| 15 |
8M0200041 |
RING KIT Piston
|
10 |
|
| 2 |
NSS |
NOT SOLD SEPARATE Dowel Pin
|
1 |
|
| 3 |
8M0200031 |
BEARING MAIN Orange Main Journal 1, 3, 5
|
AR |
|
| 3 |
8M0200030 |
BEARING MAIN White Main Journal 1, 3, 5
|
AR |
|
| 3 |
8M0200029 |
BEARING MAIN Blue Main Journal 1, 3, 5
|
AR |
|
| 3 |
8M0200028 |
BEARING MAIN Green Main Journal 1, 3, 5
|
AR |
|
| 4 |
8M0179291 |
BEARING MAIN Orange Main Journal 2, 4, 6
|
AR |
|
| 4 |
8M0179290 |
BEARING MAIN White Main Journal 2, 4, 6
|
AR |
|
| 4 |
8M0179289 |
BEARING MAIN Blue Main Journal 2, 4, 6
|
AR |
|
| 4 |
8M0179288 |
BEARING MAIN Green Main Journal 2, 4, 6
|
AR |
|
| 5 |
8M0179292 |
WASHER Thrust
|
2 |
|
| 6 |
8M0142385 |
SPACER
|
1 |
|
| 7 |
8M0168880 |
SEAL Main Bearing
|
1 |
|
| 8 |
8M0142386 |
RING RETAINING
|
1 |
|
| 9 |
8M0217817 |
BEARING Connecting Rod, Green
|
AR |
|
| 9 |
8M0217818 |
BEARING Connecting Rod, Blue
|
AR |
|
| 9 |
8M0217819 |
BEARING Connecting Rod, White
|
AR |
|
