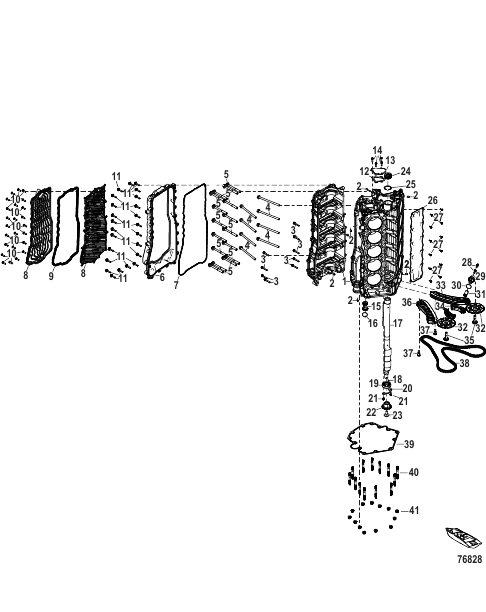

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0203874 |
LONG BLOCK
|
1 |
|
| - |
8M0200003 |
GASKET SET Powerhead
|
1 |
|
| 1 |
8M0199990 |
CYLINDER BLOCK
|
1 |
superseded
|
| 10 |
8M0142830 |
SCREW (M6 x 20)
|
24 |
|
| 11 |
8M0142555 |
SCREW (M6 x 30)
|
24 |
|
| 12 |
8M0199994 |
GASKET Cover Plate
|
1 |
|
| 13 |
8M0199995 |
COVER
|
1 |
|
| 14 |
8M0080651 |
SCREW (M6 x 20)
|
4 |
|
| 15 |
8M0199996 |
PLUG O-Ring
|
1 |
|
| 16 |
8M0206018 |
O-RING
|
1 |
|
| 17 |
8M0199997 |
BALANCE SHAFT
|
1 |
|
| 18 |
8M0142426 |
PIN Dowel
|
1 |
|
| 19 |
8M0142429 |
BEARING Ball
|
1 |
|
| 2 |
893540 |
PIN Dowel, 8x12 long
|
7 |
|
| 20 |
8M0142427 |
PLATE Retainer
|
1 |
|
| 21 |
8M0142428 |
SCREW (M5 x 12) HEX FLG
|
2 |
|
| 22 |
8M0142422 |
SPROCKET
|
1 |
|
| 23 |
8M0142423 |
SCREW (M8 x 1.25) HEX FL SEMS
|
1 |
|
| 24 |
8M0199998 |
PLUG O-Ring
|
1 |
|
| 25 |
8M0199999 |
O-RING
|
1 |
|
| 26 |
8M0200001 |
COVER Balancer
|
1 |
|
| 27 |
40011106 |
SCREW (M5 x 13) Stainless Steel
|
12 |
|
| 28 |
8M0103807 |
SCREW (M6 x 25 mm) Stainless Steel
|
2 |
|
| 29 |
8M0064752 |
END CAP Cam Tensioner
|
1 |
|
| 3 |
8M0103809 |
SCREW (M6 x 40 mm) Stainless Steel
|
9 |
|
| 30 |
898836 |
O-RING Brown
|
1 |
superseded
|
| 31 |
8M0205685 |
TENSIONER ASSEMBLY
|
1 |
|
| 32 |
8M0142390 |
SPROCKET Camshaft
|
2 |
|
| 33 |
8M0142392 |
GUIDE Moveable
|
1 |
|
| 34 |
8M0142400 |
GUIDE SHORT SPAN
|
2 |
|
| 35 |
8M0142395 |
CAM BOLT M12 Special Left Hand
|
2 |
|
| 36 |
8M0142393 |
GUIDE Cam Drive
|
1 |
|
| 37 |
8M0086569 |
SCREW Shoulder (M8 x 1.25)
|
2 |
|
| 38 |
8M0142399 |
CHAIN CAM DRIVE
|
1 |
|
| 39 |
8M0205773 |
GASKET Adapter Plate
|
1 |
|
| 4 |
8M0178218 |
SCREW M10 x 150
|
8 |
|
| 40 |
8M0158595 |
STUD (M10)
|
13 |
|
| 41 |
8M0142743 |
NUT (M10 x 1.5)
|
13 |
|
| 5 |
8M0142346 |
SCREW (M11 x 107 MM) 12 POINT HEX HEAD
|
16 |
|
| 6 |
8M0199991 |
COVER Crankcase
|
1 |
|
| 7 |
8M0199992 |
GASKET
|
1 |
|
| 8 |
NSS |
NOT SOLD SEPARATE Cover
|
1 |
|
| 9 |
8M0199993 |
SEAL Crankcase
|
1 |
|
