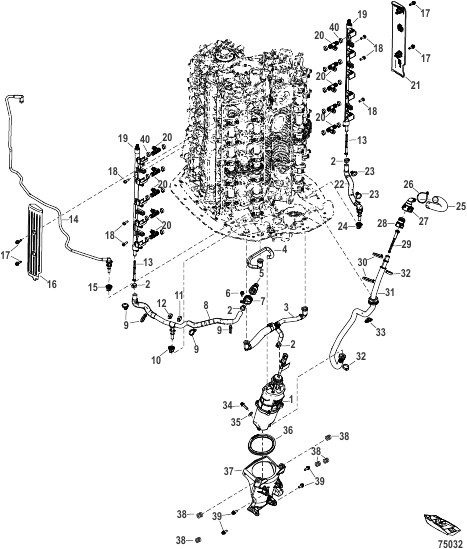

Fuel System
Parts (43)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0189030 |
FUEL INLET KIT FUEL INLET KIT |
1 | superseded |
| - | 8M0205423 |
DECAL Fuel Inlet DECAL Fuel Inlet |
1 | |
| 1 | 8M0161584 |
FUEL SUPPLY MODULE FUEL SUPPLY MODULE |
1 | |
| 10 | 884546 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 11 | 13791 |
ЗАЖИМ (15.7) CLAMP (15.7) |
1 | superseded |
| 12 | 855697 |
ЗАЖИМ CLAMP |
1 | superseded |
| 13 | 8M0090809 |
ФИЛЬТР SCREEN Fuel Rail |
2 | |
| 14 | 8M0199968 |
HOSE ASSEMBLY Upper Manifold HOSE ASSEMBLY Upper Manifold |
1 | |
| 15 | 884546 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 16 | 8M0199969 |
COVER Fuel Rail Port COVER Fuel Rail Port |
1 | |
| 17 | 8M0012661 |
ВИНТ SCREW M6 x 14 HEX FLG SS |
4 | |
| 18 | 8M0142830 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
6 | |
| 19 | 8M0199970 |
FUEL RAIL Port FUEL RAIL Port |
1 | superseded |
| 19 | 8M0199971 |
FUEL RAIL Starboard FUEL RAIL Starboard |
1 | superseded |
| 2 | 8M0204696 |
CLAMP CLAMP |
3 | |
| 20 | 8M0142264 |
ТОПЛИВНАЯ ФОРСУНКА FUEL INJECTOR |
10 | |
| 21 | 8M0199972 |
COVER Fuel Rail Starboard COVER Fuel Rail Starboard |
1 | |
| 22 | 8M0199973 |
HOSE ASSEMBLY Fuel Rail Starboard HOSE ASSEMBLY Fuel Rail Starboard |
1 | |
| 23 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
2 | |
| 24 | 884546 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 25 | 8M0192184 |
SLEEVE SLEEVE |
1 | superseded |
| 26 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
1 | |
| 27 | 8M0192175 |
FITTING Quick Connect FITTING Quick Connect |
1 | |
| 28 | 8M0199974 |
PLUG PLUG |
1 | |
| 29 | 8M0179353 |
SCREEN Fuel Filter SCREEN Fuel Filter |
1 | |
| 3 | 8M0142437 |
ШЛАНГ В СБОРЕ FSM к топливной направляющей HOSE ASSEMBLY FSM To Fuel Rail |
1 | |
| 30 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
2 | |
| 31 | 8M0199975 |
HOSE ASSEMBLY HOSE ASSEMBLY |
1 | |
| 32 | 888988019 |
ЗАЖИМ (22.6 мм) CLAMP (22.6 mm) |
2 | |
| 33 | 899145 |
ЗАЖИМ Ленточный хомут CLIP Tie Strap |
1 | |
| 34 | 8M0103807 |
ВИНТ (M6 x 25 мм), нержавеющая сталь SCREW (M6 x 25 mm) Stainless Steel |
1 | |
| 35 | 65567 |
ШАЙБА (0.265 x 0.750 x 0.048), нержавеющая сталь WASHER (.265 x .750 x .048) Stainless Steel |
1 | |
| 36 | 8M0037209 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Фиксатор FSM GROMMET FSM Retainer |
1 | |
| 37 | 8M0142722 |
КРОНШТЕЙН FSM BRACKET FSM |
1 | |
| 38 | 8M0142724 |
РЕЗИНОВАЯ ВТУЛКА GROMMET |
5 | |
| 39 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
4 | |
| 4 | 8M0142432 |
РУКАВ Впуск к FSM HOSE Intake to FSM |
1 | superseded |
| 40 | 8M0221321 |
ORING KIT Contains 6 Upper and Lower Orings ORING KIT Contains 6 Upper and Lower Orings |
2 | |
| 5 | 8M0159600 |
SENSOR Pressure SENSOR Pressure |
1 | |
| 6 | 8M0103804 |
ВИНТ (M6 x 12 мм), нержавеющая сталь SCREW (M6 x 12 MM) Stainless Steel |
1 | |
| 7 | 8M0199830 |
CLAMP CLAMP |
1 | |
| 8 | 8M0199831 |
HOSE ASSEMBLY Fuel Rail Port HOSE ASSEMBLY Fuel Rail Port |
1 | |
| 9 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
4 |
