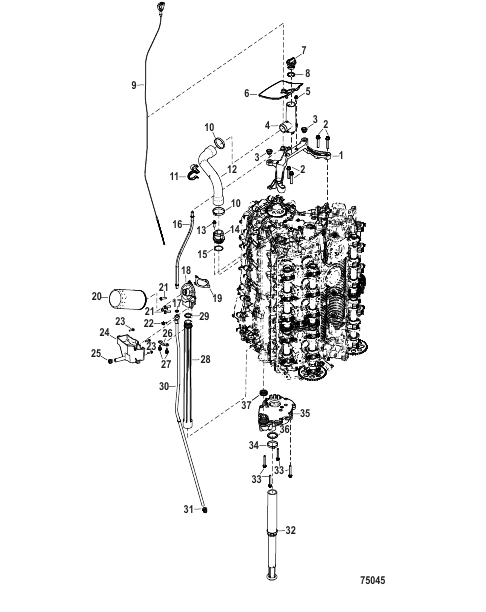

Oil System
Parts (39)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0203874 |
LONG BLOCK LONG BLOCK |
1 | |
| - | 8M0200003 |
GASKET SET Powerhead GASKET SET Powerhead |
1 | |
| 1 | 8M0199951 |
BRACKET Oil Dipstick BRACKET Oil Dipstick |
1 | |
| 10 | 8M6001459 |
ЗАЖИМ (45.5) CLAMP (45.5) |
2 | |
| 11 | 8M0199955 |
CLIP Hose CLIP Hose |
1 | |
| 12 | 8M0199956 |
HOSE Oil Fill HOSE Oil Fill |
1 | |
| 13 | 8M0103806 |
ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel |
1 | |
| 14 | 8M0142468 |
ТРУБА Заливка масла TUBE Oil Fill |
1 | |
| 15 | 8M0044601 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 16 | 8M0142480 |
ТРУБА Масляный щуп – верхний TUBE Dipstick- Upper |
1 | |
| 17 | 8M0142481 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0,362 x 0,103) O-RING (0.362 x 0.103) |
1 | |
| 18 | 8M0199957 |
ADAPTER Oil Filter ADAPTER Oil Filter |
1 | |
| 19 | 8M0199958 |
GASKET Oil Filter Adapter GASKET Oil Filter Adapter |
1 | |
| 2 | 8M0142460 |
ВИНТ (M8 x 45) ШЕСТИГР. ФЛАНЕЦ SCREW (M8 x 45) Hex Flg |
4 | |
| 20 | 8M0205848 |
OIL FILTER (MPP) OIL FILTER (MPP) |
1 | |
| 21 | 8M0142830 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
4 | |
| 22 | 8M0103804 |
ВИНТ (M6 x 12 мм), нержавеющая сталь SCREW (M6 x 12 MM) Stainless Steel |
1 | |
| 23 | 895054 |
ВИНТ (M4 x 16 мм) SCREW (M4 x 16 MM) |
3 | |
| 24 | 8M0199959 |
TRAY Oil Drip TRAY Oil Drip |
1 | |
| 25 | 8M0143229 |
ПРОБКА Лоток для сбора PLUG Drip Tray |
1 | |
| 26 | 8M0199960 |
BRACKET Oil Tube BRACKET Oil Tube |
1 | |
| 27 | 8M0142485 |
ВИНТ (M6) ШЕСТИГР. ФЛАНЕЦ SCREW (M6) HX FLG |
2 | |
| 28 | 8M0199961 |
OIL TUBE ASSEMBLY OIL TUBE ASSEMBLY |
1 | |
| 29 | 8M0199962 |
O-RING O-RING |
1 | |
| 3 | 8M0096302 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
2 | |
| 30 | 8M0199963 |
TUBE Oil Dipstick TUBE Oil Dipstick |
1 | superseded |
| 31 | 8M0178207 |
GROMMET GROMMET |
1 | |
| 32 | 8M0142402 |
МАСЛОЗАБОРНИК В СБОРЕ OIL PICK UP ASSEMBLY |
1 | |
| 33 | 8M0142401 |
ВИНТ (M6) HX FL УМЕНЬШЕННАЯ ГОЛОВКА SCREW (M6) HX FL REDUCED HEAD |
4 | |
| 34 | 8M0187146 |
CLAMP CLAMP |
1 | |
| 35 | 8M0199964 |
OIL PUMP ASSEMBLY OIL PUMP ASSEMBLY |
1 | superseded |
| 36 | 8M0199965 |
O-RING O-Ring O-RING O-Ring |
1 | superseded |
| 37 | 8M0199962 |
O-RING O-RING |
2 | |
| 4 | 8M0199952 |
NECK Oil Fill NECK Oil Fill |
1 | |
| 5 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
1 | |
| 6 | 8M0199953 |
GROMMET Oil Dipstick GROMMET Oil Dipstick |
1 | |
| 7 | 8M0142290 |
ПРОБКА Масло CAP Oil |
1 | |
| 8 | 8M0204673 |
O-Ring .921 x .139 O-Ring .921 x .139 |
1 | |
| 9 | 8M0199954 |
DIPSTICK DIPSTICK |
1 | superseded |
