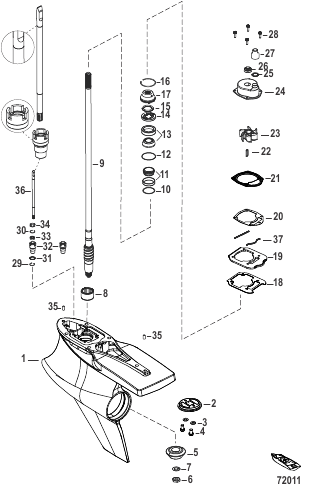

Gear Housing, Driveshaft, Sport Master (1.60 Gear Ratio)
Parts (43)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0166390 |
GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation Long 1.60 Silver GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation Long 1.60 Silver |
1 | superseded |
| - | 8M0166391 |
GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation Long 1.60 Silver GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation Long 1.60 Silver |
1 | superseded |
| - | 8M0205802 |
REPAIR KIT Water Pump Mercury REPAIR KIT Water Pump Mercury |
1 | |
| - | 8M0142980 |
РЕМОНТНЫЙ КОМПЛЕКТ КРЫЛЬЧАТКИ QuickSilver IMPELLER REPAIR KIT QuickSilver |
1 | superseded |
| - | 8M0142979 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
1 | |
| 1 | 8M0168312 |
GEAR HOUSING ASSEMBLY Basic Sport Master Silver GEAR HOUSING ASSEMBLY Basic Sport Master Silver |
1 | |
| 10 | 8M0063268 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 11 | 8M0146553 |
БЛОК ПОДШИПНИКА Стакан/конус BEARING ASSEMBLY Cup/Cone |
1 | |
| 12 | 8M0063267 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 13 | 8M0146566 |
БЛОК ПОДШИПНИКА Стакан/конус BEARING ASSEMBLY Cup/Cone |
1 | |
| 14 | 8245191 |
ФИКСАТОР RETAINER |
1 | |
| 15 | 8M0142854 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING (2.175 x .103) |
1 | |
| 16 | 880719 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 17 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО OIL SEAL CARRIER ASSY NOT SOLD SEPARATE OIL SEAL CARRIER ASSY |
1 | |
| 18 | 8M0146938 |
ПРОКЛАДКА Основание водяного насоса GASKET Water Pump Base |
1 | |
| 19 | 8M0174560 |
COVER Gearcase Housing COVER Gearcase Housing |
1 | |
| 2 | 847635001 |
АНОД ANODE |
1 | |
| 20 | 8M0168838 |
GASKET Faceplate GASKET Faceplate |
1 | |
| 21 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО NOT SOLD SEPARATE |
1 | |
| 22 | 8M0032833 |
КЛЮЧ KEY |
1 | superseded |
| 23 | 43026Q02 |
КРЫЛЬЧАТКА IMPELLER |
1 | |
| 24 | 817275A1 |
КОМПЛЕКТ КОРПУСА Водяной насос HOUSING KIT Water Pump |
1 | |
| 25 | 21836 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.796 x 0.139) O-RING (.796 x .139) |
1 | superseded |
| 26 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО NOT SOLD SEPARATE |
1 | |
| 27 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО COUPLING WATER PUMP [3B268928] & Below NOT SOLD SEPARATE COUPLING WATER PUMP [3B268928] & Below |
1 | |
| 27 | 8M0200112 |
COUPLING Water Pump [3B268929] & Up COUPLING Water Pump [3B268929] & Up |
1 | |
| 28 | 1993720 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
4 | superseded |
| 29 | 8M0142866 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 3 | 8M0036047 |
ВИНТ (0.375 x 0.62) SCREW (.375 x .62) |
2 | |
| 30 | 8M0046563 |
СТОПОРНОЕ КОЛЬЦО RING Retaining |
1 | |
| 31 | 8M0142860 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING .706 x .097 |
1 | |
| 32 | 8M0164967 |
BUSHING Shift Shaft BUSHING Shift Shaft |
1 | |
| 33 | 8164641 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | superseded |
| 34 | 77674 |
ШАЙБА WASHER (.35 x .75 x .12) |
1 | |
| 35 | 43044 |
ШТИФТ Штифт – без отверстия (0.375 x 0.625) PIN Dowel - Without Hole (.375 x .625) |
2 | |
| 36 | 8M0164969 |
SHIFT SHAFT XLong Includes Bushing SHIFT SHAFT XLong Includes Bushing |
1 | |
| 37 | 8M0142659 |
УПЛОТНЕНИЕ SEAL Formed, Actuator |
2 | |
| 4 | 841388 |
ШАЙБА (0.410 x 0.810 x 0.050), нержавеющая сталь WASHER (.410 x .810 x .050) Stainless Steel |
2 | |
| 5 | 8M0158926 |
GEAR SET 1.60 Rev/Fwd/Pinion GEAR SET GEAR SET 1.60 Rev/Fwd/Pinion GEAR SET |
1 | |
| 6 | 8M0046636 |
ГАЙКА NUT |
1 | |
| 7 | 8M0062703 |
ШАЙБА WASHER |
1 | |
| 8 | 8M0045676 |
ПОДШИПНИК Ролик BEARING Roller |
1 | |
| 9 | 8M0149608 |
ДЛИННЫЙ ВЕДУЩИЙ ВАЛ В СБОРЕ DRIVESHAFT ASSEMBLY Long |
1 |
