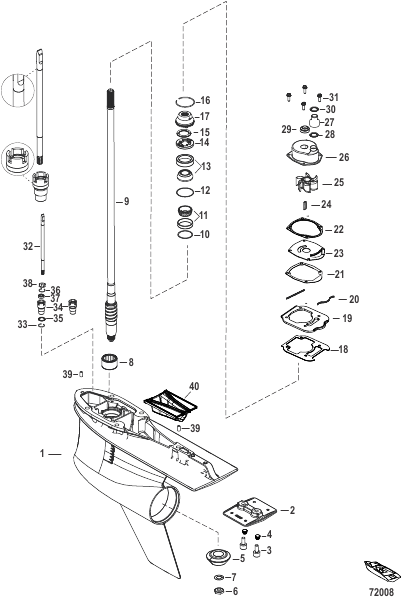

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0142323 |
GEAR HOUSING ASSEMBLY Silver (Camber) (Standard Long) (1.85)
|
1 |
superseded
|
| - |
8M0142328 |
GEAR HOUSING ASSEMBLY Silver (Camber) (Counter Rotation Long) (1.85)
|
1 |
superseded
|
| - |
8M0142324 |
GEAR HOUSING ASSEMBLY Silver (Camber) (Standard X-Long) (1.85)
|
1 |
superseded
|
| - |
8M0142325 |
GEAR HOUSING ASSEMBLY Silver (Camber) (Counter Rotation X-Long) (1.85)
|
1 |
superseded
|
| - |
8M0142326 |
GEAR HOUSING ASSEMBLY Silver (Camber) (Standard XX-Long) (1.85)
|
1 |
superseded
|
| - |
8M0142327 |
GEAR HOUSING ASSEMBLY Silver (Camber) (Counter Rotation XX-Long) (1.85)
|
1 |
superseded
|
| - |
8M0205802 |
REPAIR KIT Water Pump Mercury
|
1 |
|
| - |
8M0142980 |
IMPELLER REPAIR KIT QuickSilver
|
1 |
superseded
|
| - |
8M0142979 |
SEAL KIT
|
1 |
|
| - |
8M0146649 |
GEAR SET Forward Gear Pinion 13/24 1.85 Gear Ratio, Standard Rotation
|
1 |
|
| - |
8M0146667 |
GEAR SET Forward Gear Pinion 13/24 1.85 Gear Ratio, Counter Rotation
|
1 |
|
| - |
8M0168204 |
DRIVESHAFT KIT Long
|
1 |
|
| - |
8M0168208 |
DRIVESHAFT KIT X-Long
|
1 |
|
| - |
8M0168210 |
DRIVESHAFT KIT XX-Long
|
1 |
|
| - |
8M0237497 |
BEARING CARRIER KIT Counter Rotation
|
1 |
|
| 1 |
8M0145769 |
GEAR HOUSING ASSEMBLY Basic, Silver (Camber) (Standard)
|
1 |
superseded
|
| 1 |
8M0145770 |
GEAR HOUSING ASSEMBLY Basic, Silver (Camber) (Counter Rotation)
|
1 |
superseded
|
| 10 |
8M0063268 |
SHIM SET
|
1 |
|
| 11 |
8M0146553 |
BEARING ASSEMBLY Cup/Cone
|
1 |
|
| 12 |
8M0063267 |
SHIM SET
|
1 |
|
| 13 |
8M0146566 |
BEARING ASSEMBLY Cup/Cone
|
1 |
|
| 14 |
8245191 |
RETAINER
|
1 |
|
| 15 |
8M0142854 |
O-RING (2.175 x .103)
|
1 |
|
| 16 |
880719 |
RING Retaining
|
1 |
|
| 17 |
8M0046297 |
OIL SEAL CARRIER ASSEMBLY
|
1 |
|
| 18 |
8M0146938 |
GASKET Water Pump Base
|
1 |
|
| 19 |
8M0174560 |
COVER Gearcase Housing
|
1 |
|
| 2 |
8M0137814 |
ANODE Antivent Plate (Aluminum)
|
1 |
|
| 2 |
8M0200103 |
ANODE Antivent Plate (Magnesium)
|
AR |
|
| 20 |
8M0142659 |
SEAL Formed, Actuator
|
2 |
|
| 21 |
8M0142616 |
GASKET Face Plate to Gearcase
|
1 |
|
| 22 |
8172771 |
GASKET Water Pump, Upper
|
1 |
|
| 23 |
8172761 |
FACEPLATE
|
1 |
superseded
|
| 24 |
8M0032833 |
KEY
|
1 |
superseded
|
| 25 |
43026T2 |
IMPELLER
|
1 |
|
| 26 |
817275A1 |
HOUSING KIT Water Pump
|
1 |
|
| 27 |
8M0142435 |
COUPLING Water Pump [3B268928] & Below
|
1 |
|
| 27 |
8M0200112 |
COUPLING Water Pump [3B268929] & Up
|
1 |
|
| 28 |
21836 |
O-RING (.796 x .139)
|
1 |
superseded
|
| 29 |
8M0142851 |
VRING Face Seal
|
1 |
|
| 3 |
8M0142850 |
SCREW (M10 X 25)
|
2 |
|
| 30 |
8M0142712 |
O-RING (0.796 x 0.139)
|
1 |
|
| 31 |
1993720 |
SCREW (M6 x 20)
|
4 |
superseded
|
| 32 |
8M0164968 |
SHIFT SHAFT Long Includes Bushing
|
1 |
|
| 32 |
8M0164969 |
SHIFT SHAFT XLong Includes Bushing
|
1 |
|
| 32 |
8M0164970 |
SHIFT SHAFT XX-Long Includes Bushing
|
1 |
|
| 33 |
8M0142866 |
RING Retaining
|
1 |
|
| 34 |
8M0164967 |
BUSHING Shift Shaft
|
1 |
|
| 35 |
8M0142860 |
O-RING .706 x .097
|
1 |
|
| 36 |
8M0046563 |
RING Retaining
|
1 |
|
| 37 |
8164641 |
SEAL Oil
|
1 |
superseded
|
| 38 |
77674 |
WASHER (.35 x .75 x .12)
|
1 |
|
| 39 |
8M0084244 |
PIN Dowel, .375 x .620
|
2 |
|
| 4 |
8M0142878 |
PLUG Screw
|
2 |
|
| 40 |
8M0142786 |
MUFFLER Lower Exhaust
|
1 |
superseded
|
| 5 |
NSS |
NOT SOLD SEPARATE Pinion 13 Tooth
|
1 |
|
| 6 |
8M0046636 |
NUT
|
1 |
|
| 7 |
8M0062703 |
WASHER
|
2 |
|
| 8 |
8M0045676 |
BEARING Roller
|
1 |
|
| 9 |
8M0168204 |
DRIVESHAFT KIT Long
|
1 |
|
| 9 |
8M0168208 |
DRIVESHAFT KIT X-Long
|
1 |
|
| 9 |
8M0168210 |
DRIVESHAFT KIT XX-Long
|
1 |
|
