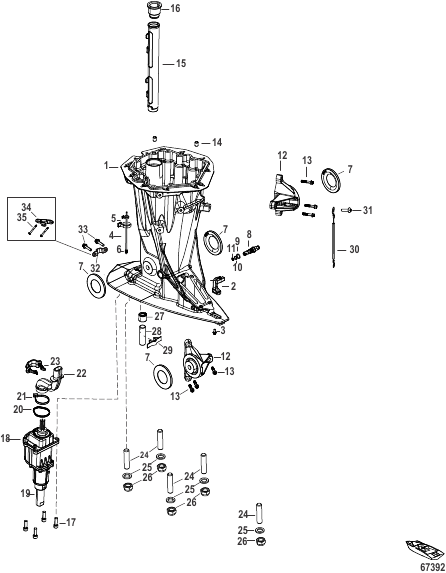

Driveshaft Housing 3B268928 and Below
Parts (41)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0205845 |
HARDWARE UPGRADE KIT Driveshaft Housing HARDWARE UPGRADE KIT Driveshaft Housing |
1 | |
| 1 | 8M0163108 |
HOUSING Driveshaft, Silver Order 8M0200077 Housing and 8M0205845 Update Kit Required [3B268928] & Below HOUSING Driveshaft, Silver Order 8M0200077 Housing and 8M0205845 Update Kit Required [3B268928] & Below |
1 | superseded |
| 10 | 863006 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (10,82 x 1,78) O-RING (10.82 x 1.78) |
1 | |
| 11 | 8M0036228 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (8.1 x 1.6) O-RING (8.1 X 1.6) |
1 | |
| 12 | 8M0154653 |
BRACKET MOUNT SUPPORT [3B268928] & Below BRACKET MOUNT SUPPORT [3B268928] & Below |
2 | |
| 12 | 8M0205786 |
BRACKET Mount Support [3B268929] & Up BRACKET Mount Support [3B268929] & Up |
2 | superseded |
| 13 | 8M0084475 |
ВИНТ (M8 x 40) [3B268928] & Below SCREW (M8 x 40) [3B268928] & Below |
6 | |
| 13 | 8M0200075 |
SCREW [3B268929] & Up SCREW [3B268929] & Up |
6 | superseded |
| 14 | 821327 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 15 | 8M0142784 |
КРОНШТЕЙН Жгут проводов переключения передач BRACKET Shift Harness |
1 | |
| 16 | 8M0142785 |
КРОНШТЕЙН Жгут проводов переключения передач BRACKET Shift Harness |
1 | |
| 17 | 8M0142829 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
4 | |
| 18 | 8M0177404 |
SHIFT ACTUATOR SHIFT ACTUATOR |
1 | superseded |
| 19 | 8M0147857 |
ВАЛ Соединительная муфта SHAFT Coupling |
1 | |
| 2 | 8M0142782 |
КРОНШТЕЙН В СБОРЕ BRACKET ASSEMBLY |
1 | |
| 20 | 8M0142978 |
УПЛОТНЕНИЕ ПРИВОДА SEAL ACTUATOR |
1 | |
| 21 | 69355 |
ЛЕНТОЧНЫЙ ХОМУТ (5.50") TIE STRAP (5.50 Inches) |
1 | superseded |
| 22 | 8M0147674 |
ЧЕХОЛ Провода привода переключения передач BOOT Shift Actuator Wires |
1 | |
| 23 | 8M0147675 |
ЗАЖИМ CLIP |
1 | |
| 24 | 8M0008031 |
ШПИЛЬКА (M12 x 1.75 x 52) Long Models STUD (M12 x 1.75 x 52) Long Models |
5 | |
| 24 | 8M0142781 |
ШПИЛЬКА (M12 x 179) XLong Models STUD (M12 x 179) XLong Models |
5 | |
| 24 | 8M0142788 |
ШПИЛЬКА (M12 x 306) XXLong Models STUD (M12 x 306) XXLong Models |
5 | |
| 25 | 856982 |
ШАЙБА (0.500 x 0.810 x 0.090), нержавеющая сталь WASHER (.500 x .810 x .090) Stainless Steel |
5 | |
| 26 | 896895 |
ГАЙКА (M12) NUT (M12) |
5 | |
| 27 | 8M0200171 |
COUPLING COUPLING |
1 | |
| 28 | 8M0200170 |
EXTENSION Water Tube XLong Models EXTENSION Water Tube XLong Models |
1 | |
| 28 | 8M0200173 |
EXTENSION Water Tube XXLong Models EXTENSION Water Tube XXLong Models |
1 | |
| 29 | 8M0200169 |
GUIDE Water Tube GUIDE Water Tube |
1 | |
| 3 | 88552514 |
ВИНТ (M6 x 14 мм), нержавеющая сталь SCREW (M6 x 14 MM) Stainless Steel |
1 | |
| 30 | 8M0200071 |
CABLE ASSEMBLY CABLE ASSEMBLY |
1 | |
| 31 | 8M0103804 |
ВИНТ (M6 x 12 мм), нержавеющая сталь SCREW (M6 x 12 MM) Stainless Steel |
1 | |
| 32 | 8M0200079 |
CLAMP Design 1 CLAMP Design 1 |
1 | |
| 33 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь Design 1 SCREW (M6 x 16mm) Stainless Steel Design 1 |
2 | |
| 34 | 8M0222234 |
CLAMP Design 2 CLAMP Design 2 |
1 | |
| 35 | 8M0144417 |
ВИНТ Design 2 SCREW (M6 x 16) Design 2 |
2 | |
| 4 | 85944975 |
ТРУБОПРОВОД (Общая длина 72.00") TUBING (72.00 Inches Bulk) |
1 | |
| 5 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
2 | |
| 6 | 8M0142714 |
ФИТИНГ FITTING |
1 | |
| 7 | 8M0183005 |
WASHER Mount Snubber WASHER Mount Snubber |
4 | superseded |
| 8 | 8M0112869 |
МАСЛЯНАЯ ПРОБКА В СБОРЕ OIL PLUG ASSEMBLY |
1 | |
| 9 | 85045 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.551 x 0.070) O-RING (.551 x .070) |
1 |
