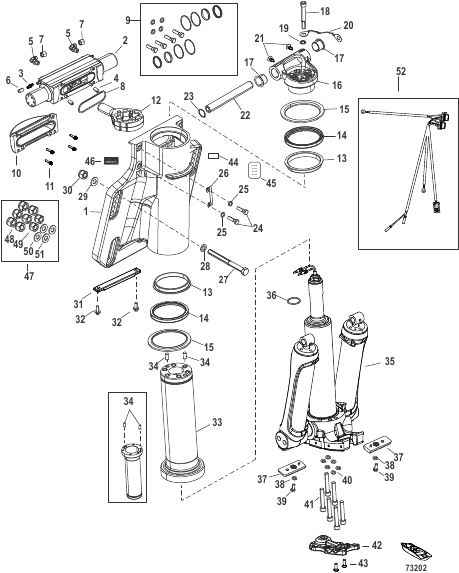

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0147728 |
PEDESTAL Silver
|
1 |
superseded
|
| 10 |
893405T |
COVER Counter Rotation Only
|
1 |
superseded
|
| 11 |
8M0076906 |
SCREW (M8) Counter Rotation Only
|
4 |
|
| 12 |
880665T01 |
ARM Steering
|
1 |
|
| 13 |
8806621 |
BEARING
|
2 |
superseded
|
| 14 |
880661 |
SEAL
|
2 |
superseded
|
| 15 |
8806561 |
BEARING
|
2 |
superseded
|
| 16 |
8M0174099 |
STEERING HEAD Gray
|
1 |
|
| 17 |
8M0161423 |
BEARING SHOULDER
|
2 |
|
| 18 |
885094105 |
SCREW (M14 x 105)
|
6 |
|
| 19 |
885112 |
WASHER
|
7 |
superseded
|
| 2 |
8M0118141 |
STEERING CYLINDER
|
1 |
|
| 20 |
8M0155769 |
GROUND STRAP
|
1 |
superseded
|
| 21 |
95925 |
PLUG
|
2 |
|
| 22 |
895390 |
TILT PIN
|
1 |
superseded
|
| 23 |
8M0038931 |
RING Retaining
|
1 |
|
| 24 |
88509530 |
SCREW (M8 x 30)
|
4 |
|
| 25 |
895853 |
WASHER
|
4 |
|
| 26 |
8M0168425 |
RETAINER
|
2 |
|
| 27 |
8M0038370 |
SCREW (.500-20 x 5.50)
|
4 |
|
| 28 |
895062 |
WASHER
|
4 |
superseded
|
| 29 |
28421 |
WASHER (1.5 x 3.05 x 0.13) Stainless Steel
|
4 |
superseded
|
| 3 |
8M0141330 |
FITTING Bleeder
|
1 |
|
| 30 |
82671117 |
NUT (.500-20)
|
4 |
|
| 31 |
8M0012083 |
ANODE
|
1 |
superseded
|
| 32 |
4010720 |
SCREW (M8 x 20)
|
2 |
|
| 33 |
880660T02 |
TUBE Steering
|
1 |
superseded
|
| 34 |
885111 |
PIN Dowel (.375 x .875)
|
4 |
|
| 35 |
8M0161425 |
POWER TRIM ASSEMBLY
|
1 |
|
| 36 |
895854 |
O-RING
|
1 |
superseded
|
| 37 |
893404 |
ANODE
|
2 |
|
| 38 |
8M0161430 |
WASHER Flat
|
2 |
|
| 39 |
889543016 |
BOLT
|
2 |
|
| 4 |
885111 |
PIN Dowel (.375 x .875)
|
2 |
|
| 40 |
889549 |
WASHER
|
6 |
|
| 41 |
8M0007798 |
SCREW (M10 x 65)
|
6 |
|
| 42 |
8M0001734 |
ANODE
|
1 |
superseded
|
| 43 |
832838 |
SCREW (M6 x 20)
|
2 |
superseded
|
| 44 |
NSS |
NOT SOLD SEPARATE Decal-Serial Overlaminate
|
1 |
|
| 45 |
8M0043059 |
DECAL Warning
|
1 |
|
| 46 |
8M0161427 |
DECAL Caution Multiple Engine
|
1 |
|
| 47 |
8M0109756 |
DOUBLE NUT KIT Transom Bolt Optional for 300 HP
|
1 |
|
| 48 |
8M0104274 |
NUT (.500-20) HEX, Brass
|
6 |
superseded
|
| 49 |
82671117 |
NUT (.500-20)
|
2 |
|
| 5 |
889552 |
FITTING -6 ORB to -6 ORFS (90 Degree)
|
1 |
|
| 50 |
28421 |
WASHER (1.5 x 3.05 x 0.13) Stainless Steel
|
2 |
superseded
|
| 51 |
54012 |
WASHER (.530 x .870 x .105) Stainless Steel
|
2 |
superseded
|
| 52 |
8M0142682 |
WIRE HARNESS Trim
|
1 |
|
| 6 |
889550 |
CAP Bleeder - Vinyl
|
2 |
|
| 7 |
892524 |
FITTING
|
2 |
|
| 8 |
880667 |
SEAL
|
1 |
superseded
|
| 9 |
8M0045604 |
SEAL KIT Steering Cylinder
|
1 |
|
