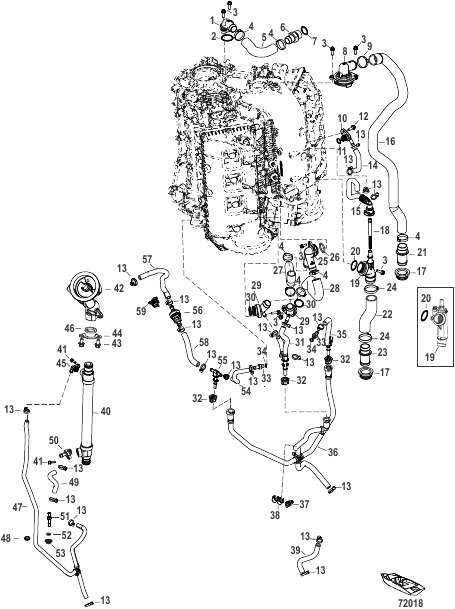

Cooling System
Parts (63)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0149557 |
ЛОНГ-БЛОК LONG BLOCK |
1 | |
| - | 8M0147117 |
НАБОР ПРОКЛАДОК СИЛОВОЙ ГОЛОВКИ POWERHEAD GASKET SET |
1 | |
| 1 | 8M0142494 |
ФИТИНГ Water Outlet FITTING Water Outlet |
1 | |
| 10 | 8M0172178 |
FITTING ASSEMBLY FITTING ASSEMBLY |
1 | |
| 11 | 201951 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.487 x 0.103) O-RING (.487 x .103) |
1 | |
| 12 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
1 | |
| 13 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
19 | |
| 14 | 8M0142513 |
РУКАВ Water Sprayer Exhaust - Sec HOSE Water Sprayer Exhaust - Sec |
1 | |
| 15 | 8M0142511 |
РУКАВ Water Sprayer Exhaust HOSE Water Sprayer Exhaust |
1 | |
| 16 | 8M0142500 |
РУКАВ Выпуск термостата HOSE Thermostat Outlet |
1 | |
| 17 | 8M0142501 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Chap Plate GROMMET Chap Plate |
2 | |
| 18 | 8M0142515 |
СЕТЧАТЫЙ ФИЛЬТР Вода Design I STRAINER Water Design I |
1 | |
| 19 | 8M0173463 |
FITTING Inlet Design II FITTING Inlet Design II |
1 | |
| 2 | 35480 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.237 x 0.103) O-RING (1.237 x .103) |
1 | |
| 20 | 86614 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.049 x 0.103) Design I O-RING (1.049 x .103) Design I |
1 | |
| 20 | 29845 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.924 x 0.103) Design II O-RING (.924 x .103) Design II |
1 | superseded |
| 21 | 8M0142509 |
ФИТИНГ Соединитель FITTING Connector |
1 | |
| 22 | 8M0172176 |
HOSE Water Inlet HOSE Water Inlet |
1 | |
| 23 | 8M0142506 |
ФИТИНГ Соединитель FITTING Connector |
1 | |
| 24 | 888988011 |
ЗАЖИМ (38,1 ММ) CLAMP (38.1 MM) |
2 | |
| 25 | 8M0142507 |
Y-ОБРАЗНЫЙ ФИТИНГ Exhaust to Cylinder Head YFITTING Exhaust to Cylinder Head |
1 | |
| 26 | 26317 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING (1.109 x .139) |
1 | |
| 27 | 8M0142505 |
РУКАВ Water to Port Cylinder Head HOSE Water to Port Cylinder Head |
1 | |
| 28 | 8M0142504 |
РУКАВ Water to Starboard Cylinder Head HOSE Water to Starboard Cylinder Head |
1 | |
| 29 | 8M0142510 |
ФИТИНГ Water Inlet FITTING Water Inlet |
2 | |
| 3 | 8M0103806 |
ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel |
8 | |
| 30 | 29845 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.924 x 0.103) O-RING (.924 x .103) |
2 | superseded |
| 31 | 8M0142518 |
ШЛАНГ В СБОРЕ Cylinder Head Drain HOSE ASSEMBLY Cylinder Head Drain |
1 | |
| 32 | 884546 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
3 | |
| 33 | 8M0142522 |
ФИТИНГ Зазубренный FITTING Barbed |
2 | superseded |
| 34 | 8M0142523 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (В.Д. 8,1 ММ X 1,6 ММ) O-RING (8.1 MM ID X 1.6MM) |
2 | |
| 35 | 8M0161583 |
HOSE ASSEMBLY Water Outlet, Starboard HOSE ASSEMBLY Water Outlet, Starboard |
1 | |
| 36 | 8M0142486 |
ШЛАНГ В СБОРЕ Water Drain Assembly HOSE ASSEMBLY Water Drain Assembly |
1 | |
| 37 | 899145 |
ЗАЖИМ Ленточный хомут CLIP Tie Strap |
1 | |
| 38 | 888523001 |
ЗАЖИМ CLIP |
1 | |
| 39 | 8M0142524 |
РУКАВ Water Inlet FSM HOSE Water Inlet FSM |
1 | |
| 4 | 8M0028753 |
ЗАЖИМ Oetiker (диаметр 31,6) CLAMP Oetiker (31.6 Diameter) |
6 | |
| 40 | 8M0177072 |
OIL COOLER ASSEMBLY [3B538954] & Below OIL COOLER ASSEMBLY [3B538954] & Below |
1 | |
| 40 | 8M0232949 |
OIL COOLER ASSEMBLY [3B538955] & Up OIL COOLER ASSEMBLY [3B538955] & Up |
1 | |
| 41 | 40011107 |
ВИНТ (M5 x 16), нержавеющая сталь [3B538954] & Below SCREW (M5 x 16) Stainless Steel [3B538954] & Below |
2 | |
| 42 | 8M0156635 |
ADAPTER Oil Filter ADAPTER Oil Filter |
1 | |
| 43 | 8M0103804 |
ВИНТ (M6 x 12 мм), нержавеющая сталь SCREW (M6 x 12 MM) Stainless Steel |
2 | |
| 44 | 8M0142484 |
КРОНШТЕЙН Масляный фильтр BRACKET Oil FIlter |
1 | |
| 45 | 8M0150517 |
ФИТИНГ Вода [3B538954] & Below FITTING Water [3B538954] & Below |
1 | |
| 46 | 8M0171370 |
SEAL Oil Tube SEAL Oil Tube |
2 | |
| 47 | 8M0177069 |
HOSE Strainer to Mount Cooler Strainer to Mount Cooler HOSE Strainer to Mount Cooler Strainer to Mount Cooler |
1 | |
| 48 | 8M0058484 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 49 | 8M0177064 |
HOSE Oil Cooler Out HOSE Oil Cooler Out |
1 | superseded |
| 5 | 8M0142503 |
РУКАВ Охлаждение Port Cylinder to Exhaust HOSE Cooling Port Cylinder to Exhaust |
1 | |
| 50 | 8M0159612 |
FITTING ASSY WATER [3B538954] & Below FITTING ASSY WATER [3B538954] & Below |
1 | |
| 51 | 8M0177071 |
FITTING Water FITTING Water |
1 | |
| 52 | 8M0042642 |
ШАЙБА (0.323 x 0.562 x 0.063) WASHER (.323 x .562 x .063) |
1 | |
| 53 | 401388 |
ГАЙКА (M8), нержавеющая сталь NUT (M8) Stainless Steel |
1 | |
| 54 | 8M0142496 |
ШЛАНГ В СБОРЕ Выпуск воды, левый борт HOSE ASSEMBLY Water Outlet, Port |
1 | |
| 55 | 8M0142497 |
ФИТИНГ Слив промывки FITTING Flush Drain |
1 | |
| 56 | 8M0153722 |
HOSE ASSEMBLY Flush HOSE ASSEMBLY Flush |
1 | |
| 57 | 8M0156634 |
HOSE Cowl to Flush Valve HOSE Cowl to Flush Valve |
1 | |
| 58 | 8M0142530 |
ШЛАНГ В СБОРЕ Flush Valve Tee Fitting HOSE ASSEMBLY Flush Valve Tee Fitting |
1 | |
| 59 | 8M0142531 |
ЗАЖИМ CLIP |
1 | |
| 6 | 8M0142516 |
ФИТИНГ Зазубренный FITTING Barbed |
1 | |
| 7 | 8M0142517 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (В.Д. 23,6 ММ X 2,9 ММ) O-RING (23.6 MM ID X 2.9 MM) |
1 | |
| 8 | 8M0162139 |
THERMOSTAT ASSEMBLY THERMOSTAT ASSEMBLY |
1 | |
| 9 | 888988008 |
ЗАЖИМ (34,6 ММ) CLAMP (34.6 MM) |
1 | superseded |
