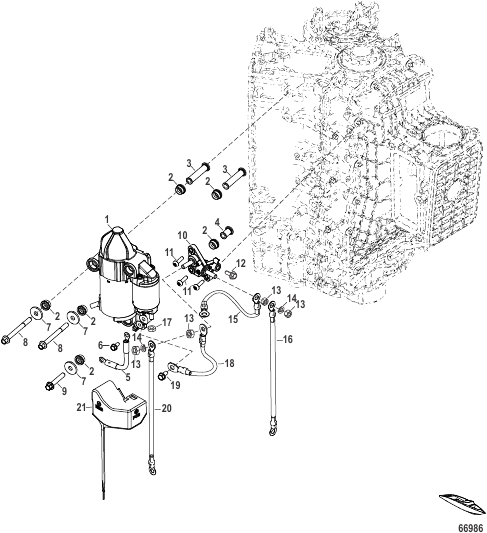

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0149557 |
LONG BLOCK
|
1 |
|
| 1 |
8M0142679 |
STARTER
|
1 |
superseded
|
| 10 |
8M0142680 |
BRACKET HOT STUD
|
1 |
|
| 11 |
8M0080651 |
SCREW (M6 x 20)
|
3 |
|
| 12 |
40011145 |
SCREW (M8 x 10) Stainless Steel
|
1 |
|
| 13 |
8M0146003 |
NUT M8 x 1.25 Hex
|
4 |
|
| 14 |
400257 |
LOCKWASHER (M8)
|
2 |
|
| 15 |
8M0142681 |
CABLE ASSEMBLY Starter - Postitive
|
1 |
|
| 16 |
88439A46 |
CABLE ASSEMBLY Battery - Positive
|
1 |
|
| 17 |
401388 |
NUT (M8) Stainless Steel
|
1 |
|
| 18 |
8M0146902 |
CABLE ASSEMBLY Starter - Negative
|
1 |
|
| 19 |
40011148 |
SCREW (M8 x 20)
|
1 |
superseded
|
| 2 |
8M0154659 |
MOUNT TUBULAR 8 MM
|
6 |
|
| 20 |
88439A26 |
CABLE ASSEMBLY Battery - Negative
|
1 |
|
| 21 |
8M0142687 |
COVER Hot Stud
|
1 |
|
| 3 |
8M0070369 |
SPACER (8.3 I.D. X 11.8 O.D.)
|
2 |
|
| 4 |
8M0070368 |
SPACER (8.3 I.D. X 11.8 O.D.)
|
1 |
|
| 5 |
8M0056666 |
GROUND STRAP Starter
|
1 |
|
| 6 |
40011126 |
SCREW (M6 x 13) Stainless Steel
|
1 |
|
| 7 |
43430 |
WASHER
|
3 |
|
| 8 |
8M0142896 |
SCREW (M8 x 80)
|
2 |
superseded
|
| 9 |
88552645 |
SCREW (M8X45)
|
1 |
|
