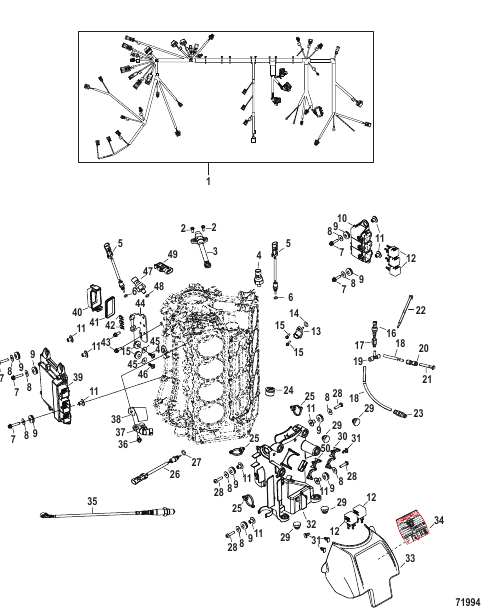

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0149557 |
LONG BLOCK
|
1 |
|
| 1 |
8M0142260 |
ENGINE HARNESS DTS
|
1 |
|
| 10 |
8M0142684 |
RELAY HOUSING
|
1 |
|
| 11 |
856954 |
BUSHING
|
9 |
|
| 12 |
8M0057697 |
CUBE RELAY
|
5 |
superseded
|
| 13 |
891663001 |
SENSOR Temperature Intake Air
|
1 |
|
| 14 |
8M0142578 |
GASKET MAT Sensor
|
1 |
|
| 15 |
895054 |
SCREW (M4 x 16 MM)
|
2 |
|
| 16 |
881879T11 |
SENSOR Pressure (0 - 100 PSI) Pitot
|
1 |
|
| 17 |
892403 |
FITTING
|
1 |
superseded
|
| 18 |
85944975 |
TUBING (72.00 Inches Bulk)
|
2 |
|
| 19 |
8M0157114 |
FITTING TEE 4 MM
|
1 |
|
| 2 |
40011106 |
SCREW (M5 x 13) Stainless Steel
|
2 |
|
| 20 |
859747 |
COUPLER
|
1 |
superseded
|
| 21 |
859732 |
PLUG
|
1 |
|
| 22 |
816311T |
TIE STRAP (8.00 Inches)
|
1 |
|
| 23 |
859448T |
FITTING
|
1 |
|
| 24 |
8M0087451 |
PLUG (18MM)
|
1 |
|
| 25 |
899145 |
CLIP Tie Strap
|
3 |
|
| 26 |
8M0161580 |
SENSOR Temperature Exhaust
|
1 |
|
| 27 |
896699 |
O-RING (1.78 mm x .08 mm)
|
1 |
|
| 28 |
8M0142686 |
SCREW (M6 x 25)
|
4 |
|
| 29 |
8M0096302 |
GROMMET
|
4 |
|
| 3 |
8M0082988 |
SENSOR Crankshaft Position
|
1 |
|
| 30 |
858954 |
CLIP (.625)
|
1 |
|
| 31 |
879962 |
CLIP
|
4 |
|
| 32 |
8M0153944 |
PLATE Electrical
|
1 |
|
| 33 |
8M0142479 |
COVER Electrical Plate
|
1 |
|
| 34 |
8M0149571 |
DECAL Maintenance Schedule
|
1 |
|
| 35 |
8M0142695 |
SENSOR Oxygen
|
1 |
|
| 36 |
8M0103806 |
SCREW (M6 x 20 MM) Stainless Steel
|
1 |
|
| 37 |
8M0011987 |
SENSOR Cam Position
|
1 |
superseded
|
| 38 |
8M0142691 |
BRACKET Cam Sensor
|
1 |
|
| 39 |
8M0207601 |
PCM 300R DTS AMS
|
1 |
|
| 4 |
8M0142696 |
SENSOR Pressure Block
|
1 |
|
| 40 |
8M0147858 |
COVER Fuse Box
|
1 |
|
| 41 |
8M0147903 |
SEAL Fuse Box
|
1 |
|
| 42 |
8329692 |
FUSE Mini - Gray - 2 Ampere
|
1 |
superseded
|
| 42 |
83296910 |
FUSE Mini - Red - 10 Ampere
|
1 |
|
| 42 |
832969T20 |
FUSE Mini - Yellow - 20 Ampere
|
4 |
|
| 43 |
8M0103805 |
SCREW (M6 x 16mm) Stainless Steel
|
2 |
|
| 44 |
8M0142455 |
BRACKET Fuse Box
|
1 |
|
| 45 |
42118 |
WASHER
|
2 |
|
| 46 |
878609 |
SCREW (#10-16 x .600)
|
2 |
|
| 47 |
8M0142688 |
SENSOR Pressure (Oil/Water) Oil
|
1 |
|
| 48 |
896699 |
O-RING (1.78 mm x .08 mm)
|
1 |
|
| 49 |
8M0142690 |
SENSOR MAP
|
1 |
|
| 5 |
8M0142542 |
SENSOR Temperature Block Water Temperature, Oil Temperature
|
2 |
superseded
|
| 50 |
883066 |
CLIP (.865)
|
1 |
|
| 6 |
896699 |
O-RING (1.78 mm x .08 mm)
|
2 |
|
| 7 |
8M0103807 |
SCREW (M6 x 25 mm) Stainless Steel
|
5 |
|
| 8 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
9 |
|
| 9 |
834985 |
GROMMET
|
11 |
superseded
|
