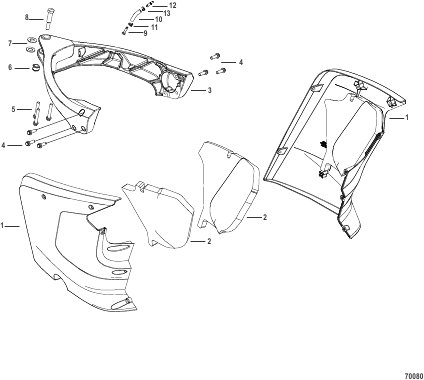

Tie Bar
Parts (15)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0161421 |
COVER CRADLE ASSEMBLY Cold Fusion Tie Bar COVER CRADLE ASSEMBLY Cold Fusion Tie Bar |
1 | |
| 1 | 8M0161420 |
COVER CRADLE ASSEMBLY Graphite Grey Tie Bar COVER CRADLE ASSEMBLY Graphite Grey Tie Bar |
1 | |
| 10 | 8M0161443 |
TUBING TUBING |
1 | |
| 11 | 895851 |
ЗАЖИМ (8.00") CLAMP (8.00 Inches) |
1 | |
| 12 | 8M0161441 |
FITTING BARB FITTING BARB |
1 | |
| 13 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
1 | |
| 2 | 8M0164954 |
SOUND BLANKET Port/Starboard SOUND BLANKET Port/Starboard |
1 | |
| 3 | 8M0161446 |
TIEBAR ASSEMBLY Cold Fusion TIEBAR ASSEMBLY Cold Fusion |
1 | superseded |
| 3 | 8M0161447 |
TIEBAR ASSEMBLY Graphite Grey TIEBAR ASSEMBLY Graphite Grey |
1 | superseded |
| 4 | 8M0161437 |
SCREW (M10x1.5x30) SCREW (M10x1.5x30) |
6 | |
| 5 | 8M0161438 |
SCREW (M10x1.5x60) SCREW (M10x1.5x60) |
3 | |
| 6 | 47379 |
ГАЙКА (0.625-18), нержавеющая сталь NUT (.625-18) Stainless Steel |
1 | |
| 7 | 844850 |
ШАЙБА (0.660 x 1.310 x 0.09), нержавеющая сталь WASHER (.660 x 1.310 x .09) Stainless Steel |
2 | |
| 8 | 8M0161439 |
BOLT BOLT |
1 | superseded |
| 9 | 895797001 |
ФИТИНГ FITTING |
1 |
