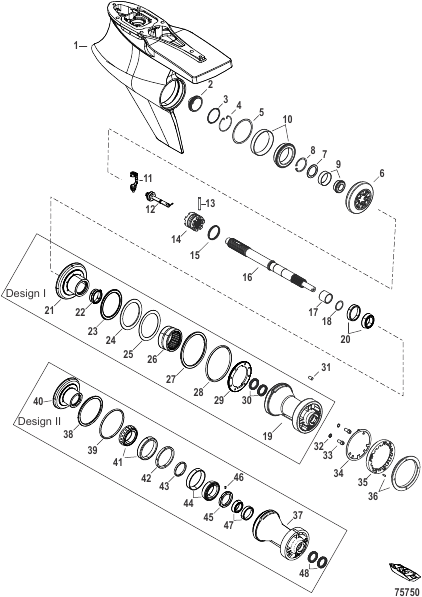

Gear Housing, Prop Shaft-Counter Rotation, Sport Master 1.60
Parts (65)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0159662 |
GEAR HOUSING ASSEMBLY Complete, SportMaster Counter Rotation Long 1.60 Graphite Gray GEAR HOUSING ASSEMBLY Complete, SportMaster Counter Rotation Long 1.60 Graphite Gray |
1 | superseded |
| - | 8M0159664 |
GEAR HOUSING ASSEMBLY Complete, SportMaster Counter Rotation X-Long 1.60 Graphite Gray GEAR HOUSING ASSEMBLY Complete, SportMaster Counter Rotation X-Long 1.60 Graphite Gray |
1 | superseded |
| - | 8M0159666 |
GEAR HOUSING ASSEMBLY Complete, SportMaster Counter Rotation XX-Long 1.60 Graphite Gray GEAR HOUSING ASSEMBLY Complete, SportMaster Counter Rotation XX-Long 1.60 Graphite Gray |
1 | superseded |
| - | 8M0159670 |
GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation Long Cambered Skeg 1.60 Graphite Gray GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation Long Cambered Skeg 1.60 Graphite Gray |
1 | superseded |
| - | 8M0159671 |
GEAR HOUSING ASSENBLY Complete SportMaster Counter Rotation X-Long Cambered Skeg 1.60 Graphite Gray GEAR HOUSING ASSENBLY Complete SportMaster Counter Rotation X-Long Cambered Skeg 1.60 Graphite Gray |
1 | superseded |
| - | 8M0159672 |
GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation XX-Long Cambered Skeg 1.60 Graphite Gray GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation XX-Long Cambered Skeg 1.60 Graphite Gray |
1 | superseded |
| - | 8M0159687 |
GEAR HOUSING ASSEMBLY Completely SportMaster Counter Rotation Long 1.60 Cold Fusion White GEAR HOUSING ASSEMBLY Completely SportMaster Counter Rotation Long 1.60 Cold Fusion White |
1 | superseded |
| - | 8M0159691 |
GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation X-Long 1.60 Cold Fusion White GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation X-Long 1.60 Cold Fusion White |
1 | superseded |
| - | 8M0159694 |
GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation XX-Long 1.60 Cold Fusion White GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation XX-Long 1.60 Cold Fusion White |
1 | superseded |
| - | 8M0159700 |
GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation Long Cambered Skeg 1.60 Cold Fusion White GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation Long Cambered Skeg 1.60 Cold Fusion White |
1 | superseded |
| - | 8M0159701 |
GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation X-Long Camber Skeg 1.60 Cold Fusion White GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation X-Long Camber Skeg 1.60 Cold Fusion White |
1 | superseded |
| - | 8M0159703 |
GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation XX-Long Camber Skeg 1.60 Cold Fusion White GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation XX-Long Camber Skeg 1.60 Cold Fusion White |
1 | superseded |
| - | 8M0146386 |
НАБОР ПРОКЛАДОК SHIM SET |
AR | |
| - | 8M0166531 |
GEARCASE SEAL KIT GEARCASE SEAL KIT |
1 | |
| 1 | 8M0159714 |
GEAR HOUSING ASSEMBLY Basic SportMaster Counter Rotation Camber Skeg Cold Fusion White GEAR HOUSING ASSEMBLY Basic SportMaster Counter Rotation Camber Skeg Cold Fusion White |
1 | superseded |
| 1 | 8M0159715 |
GEAR HOUSING ASSEMBLY Basic SportMaster Counter Rotation Camber Skeg Graphite Grey GEAR HOUSING ASSEMBLY Basic SportMaster Counter Rotation Camber Skeg Graphite Grey |
1 | |
| 10 | 884323T01 |
БЛОК ПОДШИПНИКА Ролик BEARING ASSEMBLY Roller |
1 | superseded |
| 11 | 8M0046215 |
КОЛЕНЧАТЫЙ ВАЛ, рычаг переключения передач Палец шарнира 1/4 CRANK, Shifter 1/4 Pivot Pin |
1 | superseded |
| 12 | 8M0142857 |
ЗОЛОТНИК SPOOL ASSEMBLY |
1 | superseded |
| 13 | 8M0045493 |
ШТИФТ PIN Cross |
1 | |
| 14 | 8M0142871 |
МУФТА СЦЕПЛЕНИЯ Скользящий, 6-кулачковый CLUTCH Sliding 6 Jaw |
1 | |
| 15 | 8M0050575 |
ПРУЖИНА SPRING Cross |
1 | |
| 16 | 8M0156191 |
ВАЛ Гребной винт SHAFT Propeller |
1 | |
| 17 | 8M0064306 |
ПРОСТАВКА SPACER Thrust |
1 | |
| 18 | 8M0050434 |
ШАЙБА 0.040 WASHER .040 |
1 | |
| 19 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Design I NOT SOLD SEPARATE Design I |
1 | |
| 19 | 8M0199860 |
BEARING CARRIER ASSEMBLY Design II BEARING CARRIER ASSEMBLY Design II |
1 | |
| 2 | 8M0142853 |
ПРОБКА Torpedo PLUG Torpedo |
1 | superseded |
| 20 | 8M0148319 |
ПОДШИПНИК Стакан/конус Design I BEARING Roller Taper Cup/Cone Design I |
1 | |
| 21 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gear Set NOT SOLD SEPARATE Gear Set |
1 | |
| 22 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Adapter Design I NOT SOLD SEPARATE Adapter Design I |
1 | |
| 23 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Bearing Design I NOT SOLD SEPARATE Bearing Design I |
1 | |
| 24 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Washer Design I NOT SOLD SEPARATE Washer Design I |
1 | |
| 25 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Shim Set Design I NOT SOLD SEPARATE Shim Set Design I |
1 | |
| 26 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Bearing-Needle Design I NOT SOLD SEPARATE Bearing-Needle Design I |
1 | |
| 27 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Ring-Thrust Design I NOT SOLD SEPARATE Ring-Thrust Design I |
1 | |
| 28 | 8M0000190 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (4.475 x 0.210) Design I O-RING (4.475 x .210) Design I |
1 | |
| 29 | 8M0056639 |
КОЛЬЦО Фиксатор Design I RING Retainer Design I |
1 | |
| 3 | 8M0142854 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING (2.175 x .103) |
1 | |
| 30 | 888483 |
УПЛОТНЕНИЕ Масло Design I SEAL Oil Design I |
2 | superseded |
| 31 | 8M0109164 |
ШТИФТ PIN 3/8 Dia x .625 LG |
1 | |
| 32 | 830749 |
УПЛОТНЕНИЕ SEAL |
2 | superseded |
| 33 | 8M0071653 |
ВИНТ Специальный SCREW Special, .375-16 UNC |
2 | |
| 34 | 8M0108527 |
ШАЙБА Транцевая плита Design I WASHER Tab Design I |
1 | |
| 34 | 8M0191587 |
WASHER Tab Design II WASHER Tab Design II |
1 | |
| 35 | 8M0111653 |
ГАЙКА Фиксатор NUT Retainer |
1 | superseded |
| 36 | 8M0050821 |
КОМПЛЕКТ КРЫШЕК Промывка, стандарт COVER KIT Flush, Standard |
1 | superseded |
| 37 | 8M0199860 |
BEARING CARRIER ASSEMBLY Design II BEARING CARRIER ASSEMBLY Design II |
1 | |
| 38 | 8M0161546 |
THRUST RING Design II THRUST RING Design II |
1 | |
| 39 | 8M0000190 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (4.475 x 0.210) Design II O-RING (4.475 x .210) Design II |
1 | |
| 4 | 880719 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 40 | 8M0208545 |
GEAR SET 1.60 Rev/Fwd/Pinion Design II GEAR SET 1.60 Rev/Fwd/Pinion Design II |
1 | |
| 41 | 8M0199861 |
BEARING Roller Taper (Cup/Cone) Design II BEARING Roller Taper (Cup/Cone) Design II |
1 | |
| 42 | 8M0199862 |
SPACER Bearing Cup Design II SPACER Bearing Cup Design II |
1 | |
| 43 | 8M0199863 |
SPACER Design II SPACER Design II |
1 | |
| 44 | 8M0199864 |
BEARING Roller Taper (Cup/Cone) Design II BEARING Roller Taper (Cup/Cone) Design II |
1 | |
| 45 | 8M0064178 |
КОНТРГАЙКА Design II LOCK NUT Design II |
1 | |
| 46 | 8M0066130 |
УСТАНОВОЧНЫЙ ВИНТ С КОРОТКИМ ЦИЛИНДРИЧЕСКИМ КОНЦОМ Design II SCREW- HALF DOG POINT SET Design II |
1 | |
| 47 | 8M0148319 |
ПОДШИПНИК Стакан/конус Design II BEARING Roller Taper Cup/Cone Design II |
1 | |
| 48 | 888483 |
УПЛОТНЕНИЕ Масло Design II SEAL Oil Design II |
2 | superseded |
| 5 | 8M0063270 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 6 | 8M0208545 |
GEAR SET 1.60 Rev/Fwd/Pinion GEAR SET 1.60 Rev/Fwd/Pinion |
1 | |
| 7 | 8M0053823 |
УПОРНАЯ ШАЙБА WASHER Thrust, (1.50 ID x 2.046 OD) |
1 | |
| 8 | 8M0051043 |
СТОПОРНОЕ КОЛЬЦО RING Retaining |
1 | |
| 9 | 884325T01 |
БЛОК ПОДШИПНИКА Ролик – конический BEARING ASSEMBLY Roller-Tappered |
1 | superseded |
