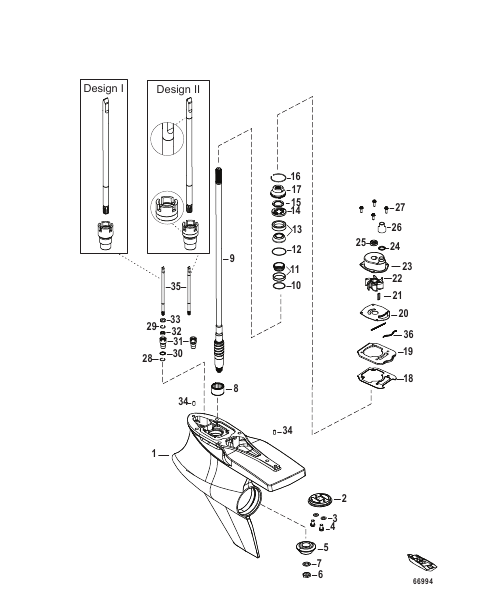

Gear Housing, Driveshaft, Sport Master 1.60
Parts (77)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0159661 |
GEAR HOUSING ASSEMBLY Complete, SportMaster Standard Long 1.60 Graphite Gray GEAR HOUSING ASSEMBLY Complete, SportMaster Standard Long 1.60 Graphite Gray |
1 | superseded |
| - | 8M0159662 |
GEAR HOUSING ASSEMBLY Complete, SportMaster Counter Rotation Long 1.60 Graphite Gray GEAR HOUSING ASSEMBLY Complete, SportMaster Counter Rotation Long 1.60 Graphite Gray |
1 | superseded |
| - | 8M0159663 |
GEAR HOUSING ASSEMBLY Complete, SportMaster Standard Rotation X-Long 1.60 Graphite Gray GEAR HOUSING ASSEMBLY Complete, SportMaster Standard Rotation X-Long 1.60 Graphite Gray |
1 | superseded |
| - | 8M0159664 |
GEAR HOUSING ASSEMBLY Complete, SportMaster Counter Rotation X-Long 1.60 Graphite Gray GEAR HOUSING ASSEMBLY Complete, SportMaster Counter Rotation X-Long 1.60 Graphite Gray |
1 | superseded |
| - | 8M0159665 |
GEAR HOUSING ASSEMBLY Complete, SportMaster Standard Rotation XX-Long 1.60 Graphite Gray GEAR HOUSING ASSEMBLY Complete, SportMaster Standard Rotation XX-Long 1.60 Graphite Gray |
1 | superseded |
| - | 8M0159666 |
GEAR HOUSING ASSEMBLY Complete, SportMaster Counter Rotation XX-Long 1.60 Graphite Gray GEAR HOUSING ASSEMBLY Complete, SportMaster Counter Rotation XX-Long 1.60 Graphite Gray |
1 | superseded |
| - | 8M0159667 |
GEAR HOUSING ASSEMBLY Complete SportMaster Standard Long Cambered Skeg 1.60 Graphite Gray GEAR HOUSING ASSEMBLY Complete SportMaster Standard Long Cambered Skeg 1.60 Graphite Gray |
1 | superseded |
| - | 8M0159668 |
GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation X-Long Cambered Skeg Graphite Gray GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation X-Long Cambered Skeg Graphite Gray |
1 | superseded |
| - | 8M0159669 |
GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation XX-Long Cambered Skeg Graphite Gray GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation XX-Long Cambered Skeg Graphite Gray |
1 | superseded |
| - | 8M0159670 |
GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation Long Cambered Skeg 1.60 Graphite Gray GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation Long Cambered Skeg 1.60 Graphite Gray |
1 | superseded |
| - | 8M0159671 |
GEAR HOUSING ASSENBLY Complete SportMaster Counter Rotation X-Long Cambered Skeg 1.60 Graphite Gray GEAR HOUSING ASSENBLY Complete SportMaster Counter Rotation X-Long Cambered Skeg 1.60 Graphite Gray |
1 | superseded |
| - | 8M0159672 |
GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation XX-Long Cambered Skeg 1.60 Graphite Gray GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation XX-Long Cambered Skeg 1.60 Graphite Gray |
1 | superseded |
| - | 8M0159685 |
GEAR HOUSING ASSEMBLY Complete SportMaster Long 1.60 Cold Fusion White GEAR HOUSING ASSEMBLY Complete SportMaster Long 1.60 Cold Fusion White |
1 | superseded |
| - | 8M0159687 |
GEAR HOUSING ASSEMBLY Completely SportMaster Counter Rotation Long 1.60 Cold Fusion White GEAR HOUSING ASSEMBLY Completely SportMaster Counter Rotation Long 1.60 Cold Fusion White |
1 | superseded |
| - | 8M0159689 |
GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation X-Long 1.60 Cold Fusion White GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation X-Long 1.60 Cold Fusion White |
1 | superseded |
| - | 8M0159691 |
GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation X-Long 1.60 Cold Fusion White GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation X-Long 1.60 Cold Fusion White |
1 | superseded |
| - | 8M0159693 |
GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation XX-Long 1.60 Cold Fusion White GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation XX-Long 1.60 Cold Fusion White |
1 | superseded |
| - | 8M0159694 |
GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation XX-Long 1.60 Cold Fusion White GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation XX-Long 1.60 Cold Fusion White |
1 | superseded |
| - | 8M0159696 |
GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation Long Cambered Skeg 1.60 Cold Fusion White GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation Long Cambered Skeg 1.60 Cold Fusion White |
1 | superseded |
| - | 8M0159697 |
GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation X-Long Cambered Skeg 1.60 Cold Fusion White GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation X-Long Cambered Skeg 1.60 Cold Fusion White |
1 | superseded |
| - | 8M0159700 |
GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation Long Cambered Skeg 1.60 Cold Fusion White GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation Long Cambered Skeg 1.60 Cold Fusion White |
1 | superseded |
| - | 8M0159701 |
GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation X-Long Camber Skeg 1.60 Cold Fusion White GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation X-Long Camber Skeg 1.60 Cold Fusion White |
1 | superseded |
| - | 8M0159699 |
GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation XX-Long Cambered Skeg 1.60 Cold Fusion White GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation XX-Long Cambered Skeg 1.60 Cold Fusion White |
1 | superseded |
| - | 8M0159703 |
GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation XX-Long Camber Skeg 1.60 Cold Fusion White GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation XX-Long Camber Skeg 1.60 Cold Fusion White |
1 | superseded |
| - | 8M0185160 |
IMPELLER REPAIR KIT IMPELLER REPAIR KIT |
1 | |
| - | 8M0166531 |
GEARCASE SEAL KIT GEARCASE SEAL KIT |
1 | |
| 1 | 8M0159710 |
GEAR HOUSING ASSEMBLY Basic SportMaster Cold Fusion White GEAR HOUSING ASSEMBLY Basic SportMaster Cold Fusion White |
1 | |
| 1 | 8M0159711 |
GEAR HOUSING ASSEMBLY Basic SportMaster Graphite Gray GEAR HOUSING ASSEMBLY Basic SportMaster Graphite Gray |
1 | |
| 1 | 8M0159712 |
GEAR HOUSING ASSEMBLY Basic SportMaster Cold Fusion White Camber Skeg GEAR HOUSING ASSEMBLY Basic SportMaster Cold Fusion White Camber Skeg |
1 | superseded |
| 1 | 8M0159713 |
GEAR HOUSING ASSEMBLY Basic, SportMaster Camber Skeg Graphite Grey GEAR HOUSING ASSEMBLY Basic, SportMaster Camber Skeg Graphite Grey |
1 | |
| 1 | 8M0159714 |
GEAR HOUSING ASSEMBLY Basic SportMaster Counter Rotation Camber Skeg Cold Fusion White GEAR HOUSING ASSEMBLY Basic SportMaster Counter Rotation Camber Skeg Cold Fusion White |
1 | superseded |
| 1 | 8M0159715 |
GEAR HOUSING ASSEMBLY Basic SportMaster Counter Rotation Camber Skeg Graphite Grey GEAR HOUSING ASSEMBLY Basic SportMaster Counter Rotation Camber Skeg Graphite Grey |
1 | |
| 10 | 8M0063268 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 11 | 8M0146553 |
БЛОК ПОДШИПНИКА Стакан/конус BEARING ASSEMBLY Cup/Cone |
1 | |
| 12 | 8M0063267 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 13 | 8M0146566 |
БЛОК ПОДШИПНИКА Стакан/конус BEARING ASSEMBLY Cup/Cone |
1 | |
| 14 | 8245191 |
ФИКСАТОР RETAINER |
1 | |
| 15 | 8M0142854 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING (2.175 x .103) |
1 | |
| 16 | 880719 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 17 | 8M0161436 |
OIL SEAL CARRIER ASSEMBLY OIL SEAL CARRIER ASSEMBLY |
1 | |
| 18 | 8M0146938 |
ПРОКЛАДКА Основание водяного насоса GASKET Water Pump Base |
1 | |
| 19 | 8M0142869 |
КОЖУХ КРЫШКИ Редуктор COVER HOUSING Gearcase |
1 | superseded |
| 2 | 847635001 |
АНОД ANODE |
1 | |
| 20 | 8M0161897 |
FACEPLATE GASKET FACEPLATE GASKET |
1 | superseded |
| 21 | 8M0032833 |
КЛЮЧ KEY |
1 | superseded |
| 22 | 43026Q02 |
КРЫЛЬЧАТКА IMPELLER |
1 | |
| 23 | 817275A1 |
КОМПЛЕКТ КОРПУСА Водяной насос HOUSING KIT Water Pump |
1 | |
| 24 | 21836 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.796 x 0.139) O-RING (.796 x .139) |
2 | superseded |
| 25 | 8M0142851 |
КОЛЬЦЕВОЕ УПЛОТНЕНИЕ V-ОБРАЗНОГО СЕЧЕНИЯ Торцевое уплотнение VRING Face Seal |
1 | |
| 26 | 8M0166309 |
COUPLING Water Pump [1E093311] & Below COUPLING Water Pump [1E093311] & Below |
1 | |
| 26 | 8M0200112 |
COUPLING Water Pump [1E093312] & Up COUPLING Water Pump [1E093312] & Up |
1 | |
| 27 | 1993720 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
4 | superseded |
| 28 | 8M0142858 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ Длинный Design I SHIFT SHAFT Long Design I |
1 | superseded |
| 28 | 8M0164968 |
SHIFT SHAFT Long Includes Bushing Design II Design II SHIFT SHAFT Long Includes Bushing Design II Design II |
1 | |
| 28 | 8M0142865 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ Сверхдлинный, XL Design I SHIFT SHAFT X-Long Design I |
1 | superseded |
| 28 | 8M0164969 |
SHIFT SHAFT XLong Includes Bushing Design II Design II SHIFT SHAFT XLong Includes Bushing Design II Design II |
1 | |
| 28 | 8M0142885 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ Сверхдлинный, XXL Design I SHIFT SHAFT XX-Long Design I |
1 | superseded |
| 28 | 8M0164970 |
SHIFT SHAFT XX-Long Includes Bushing Design II Design II SHIFT SHAFT XX-Long Includes Bushing Design II Design II |
1 | |
| 29 | 8M0142859 |
ВТУЛКА Вал переключения передач Design I BUSHING Shift Shaft Design I |
1 | |
| 29 | 8M0164967 |
BUSHING Shift Shaft Design II BUSHING Shift Shaft Design II |
1 | |
| 3 | 8M0036047 |
ВИНТ (0.375 x 0.62) SCREW (.375 x .62) |
2 | |
| 30 | 8M0142866 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 31 | 8M0046563 |
СТОПОРНОЕ КОЛЬЦО RING Retaining |
1 | |
| 32 | 8M0142860 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING .706 x .097 |
1 | |
| 33 | 8164641 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | superseded |
| 34 | 77674 |
ШАЙБА WASHER (.35 x .75 x .12) |
1 | |
| 35 | 43044 |
ШТИФТ Штифт – без отверстия (0.375 x 0.625) PIN Dowel - Without Hole (.375 x .625) |
2 | |
| 36 | 8M0142659 |
УПЛОТНЕНИЕ SEAL Formed, Actuator |
2 | |
| 4 | 841388 |
ШАЙБА (0.410 x 0.810 x 0.050), нержавеющая сталь WASHER (.410 x .810 x .050) Stainless Steel |
2 | |
| 5 | 8M0158926 |
GEAR SET 1.60 Rev/Fwd/Pinion Standard Rotation GEAR SET 1.60 Rev/Fwd/Pinion Standard Rotation |
1 | |
| 5 | 8M0208545 |
GEAR SET 1.60 Rev/Fwd/Pinion Counter Rotation GEAR SET 1.60 Rev/Fwd/Pinion Counter Rotation |
1 | |
| 6 | 8M0046636 |
ГАЙКА NUT |
1 | |
| 7 | 8M0062703 |
ШАЙБА WASHER |
1 | |
| 8 | 8M0045676 |
ПОДШИПНИК Ролик BEARING Roller |
1 | |
| 9 | 8M0149608 |
ДЛИННЫЙ ВЕДУЩИЙ ВАЛ В СБОРЕ DRIVESHAFT ASSEMBLY Long |
1 | |
| 9 | 8M0141337 |
DRIVESHAFT ASSEMBLY X-Long DRIVESHAFT ASSEMBLY X-Long |
1 | |
| 9 | 8M0141338 |
DRIVESHAFT ASSEMBLY XX-Long DRIVESHAFT ASSEMBLY XX-Long |
1 |
