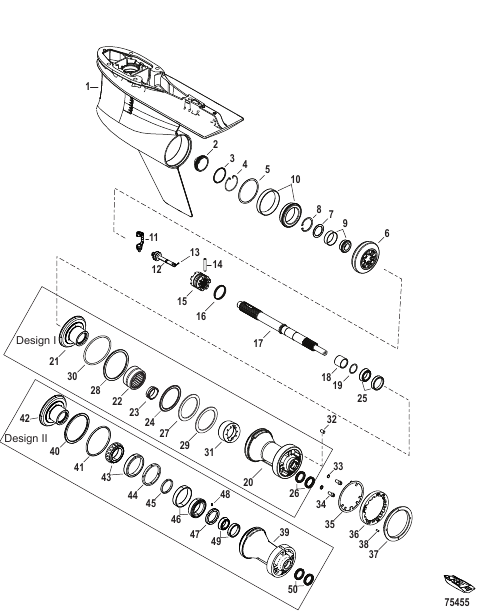

Gear Housing, Prop Shaft - Counter Rotation, 5.44 Torpedo 1.60
Parts (70)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0159650 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 GRAPHITE GREY |
1 | superseded |
| - | 8M0159652 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 GRAPHITE GREY |
1 | superseded |
| - | 8M0159654 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 GRAPHITE GREY |
1 | superseded |
| - | 8M0159658 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 Cambered Skeg GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 Cambered Skeg GRAPHITE GREY |
1 | superseded |
| - | 8M0159659 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 Cambered GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 Cambered GRAPHITE GREY |
1 | superseded |
| - | 8M0159660 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 Cambered Skeg GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 Cambered Skeg GRAPHITE GREY |
1 | superseded |
| - | 8M0159674 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 COLD FUSION WHITE |
1 | superseded |
| - | 8M0159676 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 COLD FUSION WHITE |
1 | superseded |
| - | 8M0159678 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 COLD FUSION WHITE |
1 | superseded |
| - | 8M0159682 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE |
1 | superseded |
| - | 8M0159683 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE |
1 | superseded |
| - | 8M0159684 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE |
1 | superseded |
| - | 8M0166531 |
GEARCASE SEAL KIT GEARCASE SEAL KIT |
1 | |
| 1 | 8M0159704 |
GEAR ASSEMBLY Basic, 5.44 1.60 COLD FUSION WHITE GEAR ASSEMBLY Basic, 5.44 1.60 COLD FUSION WHITE |
1 | superseded |
| 1 | 8M0159705 |
GEAR HOUSING ASSEMBLY Basic, 5.44 1.60 GRAPHITE GREY GEAR HOUSING ASSEMBLY Basic, 5.44 1.60 GRAPHITE GREY |
1 | superseded |
| 1 | 8M0159706 |
GEAR HOUSING ASSEMBLY Basic, 5.44 1.60 Camber Skeg COLD FUSION WHITE GEAR HOUSING ASSEMBLY Basic, 5.44 1.60 Camber Skeg COLD FUSION WHITE |
1 | superseded |
| 1 | 8M0159707 |
GEAR HOUSING ASSEMBLY Basic 5.44 1.60 Camber Skeg GRAPHITE GREY GEAR HOUSING ASSEMBLY Basic 5.44 1.60 Camber Skeg GRAPHITE GREY |
1 | superseded |
| 1 | 8M0159708 |
GEAR HOUSING ASSEMBLY Basic, (Counter Rotation) 5.44 1.60 Camber Skeg COLD FUSION WHITE GEAR HOUSING ASSEMBLY Basic, (Counter Rotation) 5.44 1.60 Camber Skeg COLD FUSION WHITE |
1 | superseded |
| 1 | 8M0159709 |
GEAR HOUSING ASSEMBLY Basic, (Counter Rotation) 5.44 1.60 Camber Skeg GRAPHITE GREY GEAR HOUSING ASSEMBLY Basic, (Counter Rotation) 5.44 1.60 Camber Skeg GRAPHITE GREY |
1 | superseded |
| 10 | 8M0142836 |
ПОДШИПНИК Конический ролик BEARING Roller Taper (Cup/Cone) |
1 | |
| 11 | 8M0046215 |
КОЛЕНЧАТЫЙ ВАЛ, рычаг переключения передач Палец шарнира 1/4 CRANK, Shifter 1/4 Pivot Pin |
1 | superseded |
| 12 | 8M0142857 |
ЗОЛОТНИК SPOOL ASSEMBLY |
1 | superseded |
| 13 | 469501 |
ШПЛИНТ COTTER PIN |
1 | |
| 14 | 8M0045493 |
ШТИФТ PIN Cross |
1 | |
| 15 | 8M0142871 |
МУФТА СЦЕПЛЕНИЯ Скользящий, 6-кулачковый CLUTCH Sliding 6 Jaw |
1 | |
| 16 | 8M0050575 |
ПРУЖИНА SPRING Cross |
1 | |
| 17 | 8M0142877 |
ВАЛ ГРЕБНОГО ВИНТА SHAFT Propeller |
1 | |
| 18 | 8M0064306 |
ПРОСТАВКА SPACER Thrust |
1 | |
| 19 | 8M0076745 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 2 | 8M0157111 |
PLUG Torpedo PLUG Torpedo |
1 | |
| 20 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Design I NOT SOLD SEPARATE Design I |
1 | |
| 20 | 8M0191582 |
BEARING CARRIER ASSEMBLY 1.60 Gear Ratio Design II BEARING CARRIER ASSEMBLY 1.60 Gear Ratio Design II |
1 | |
| 21 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gear Set Design I NOT SOLD SEPARATE Gear Set Design I |
1 | |
| 22 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Bearing-Needle Design I NOT SOLD SEPARATE Bearing-Needle Design I |
1 | |
| 23 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Adapter Design I NOT SOLD SEPARATE Adapter Design I |
1 | |
| 24 | 8M0046569 |
КОЛЬЦО Упор Design I RING Thrust Design I |
1 | superseded |
| 25 | 8M0148319 |
ПОДШИПНИК Стакан/конус Design I BEARING Roller Taper Cup/Cone Design I |
1 | |
| 26 | 888483 |
УПЛОТНЕНИЕ Масло Design I SEAL Oil Design I |
2 | superseded |
| 27 | 8M0000190 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (4.475 x 0.210) Design I O-RING (4.475 x .210) Design I |
1 | |
| 28 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Bearing Design I NOT SOLD SEPARATE Bearing Design I |
1 | |
| 29 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Shim Set Design I NOT SOLD SEPARATE Shim Set Design I |
1 | |
| 3 | 8M0046563 |
СТОПОРНОЕ КОЛЬЦО RING Retaining |
1 | |
| 30 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Washer Design I NOT SOLD SEPARATE Washer Design I |
1 | |
| 31 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Bearing-Adaptor Design I NOT SOLD SEPARATE Bearing-Adaptor Design I |
1 | |
| 32 | 8M0109164 |
ШТИФТ PIN 3/8 Dia x .625 LG |
1 | |
| 33 | 830749 |
УПЛОТНЕНИЕ SEAL |
2 | superseded |
| 34 | 8M0071653 |
ВИНТ Специальный SCREW Special, .375-16 UNC |
2 | |
| 35 | 8M0108527 |
ШАЙБА Транцевая плита WASHER Tab |
1 | |
| 36 | 8M0162798 |
RETAINER Bearing Carrier RETAINER Bearing Carrier |
1 | |
| 37 | 8M0050821 |
КОМПЛЕКТ КРЫШЕК Промывка, стандарт COVER KIT Flush, Standard |
1 | superseded |
| 38 | 8M0036819 |
УСТАНОВОЧНЫЙ ВИНТ (10-32) SET SCREW (10-32) |
1 | |
| 39 | 8M0191582 |
BEARING CARRIER ASSEMBLY 1.60 Gear Ratio Design II BEARING CARRIER ASSEMBLY 1.60 Gear Ratio Design II |
1 | |
| 4 | 880719 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 40 | 8M0161546 |
THRUST RING Design II THRUST RING Design II |
1 | |
| 41 | 8M0000190 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (4.475 x 0.210) Design II O-RING (4.475 x .210) Design II |
1 | |
| 42 | 8M0208545 |
GEAR SET 1.60 Rev/Fwd/Pinion Design II GEAR SET 1.60 Rev/Fwd/Pinion Design II |
1 | |
| 43 | 8M0199861 |
BEARING Roller Taper (Cup/Cone) Design II BEARING Roller Taper (Cup/Cone) Design II |
1 | |
| 44 | 8M0199862 |
SPACER Bearing Cup Design II SPACER Bearing Cup Design II |
1 | |
| 45 | 8M0199863 |
SPACER Design II SPACER Design II |
1 | |
| 46 | 8M0199864 |
BEARING Roller Taper (Cup/Cone) Design II BEARING Roller Taper (Cup/Cone) Design II |
1 | |
| 47 | 8M0064178 |
КОНТРГАЙКА Design II LOCK NUT Design II |
1 | |
| 48 | 8M0066130 |
УСТАНОВОЧНЫЙ ВИНТ С КОРОТКИМ ЦИЛИНДРИЧЕСКИМ КОНЦОМ Design II SCREW- HALF DOG POINT SET Design II |
1 | |
| 49 | 8M0148319 |
ПОДШИПНИК Стакан/конус Design II BEARING Roller Taper Cup/Cone Design II |
1 | |
| 5 | 8M0063270 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 50 | 888483 |
УПЛОТНЕНИЕ Масло Design II SEAL Oil Design II |
2 | superseded |
| 6 | 8M0208545 |
GEAR SET 1.60 Rev/Fwd/Pinion GEAR SET 1.60 Rev/Fwd/Pinion |
1 | |
| 7 | 8M0053823 |
УПОРНАЯ ШАЙБА WASHER Thrust, (1.50 ID x 2.046 OD) |
1 | |
| 8 | 8M0051043 |
СТОПОРНОЕ КОЛЬЦО RING Retaining |
1 | |
| 9 | 8M0142835 |
ПОДШИПНИК Конический ролик BEARING Roller Taper (Cup/Cone) |
1 | |
| NS | 8M0146386 |
НАБОР ПРОКЛАДОК Design II SHIM SET Design II |
AR |
