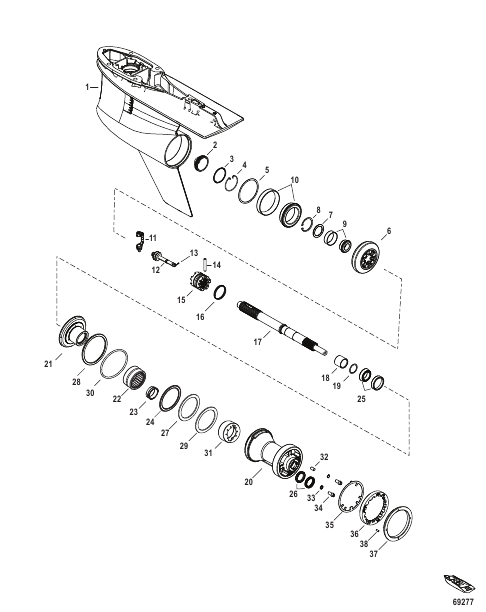

Gear Housing, Prop Shaft - Standard Rotation, 5.44 Torpedo, 1.60
Parts (56)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0159649 |
GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 GRAPHITE GREY |
1 | superseded |
| - | 8M0159651 |
GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 GRAPHITE GREY |
1 | superseded |
| - | 8M0159653 |
GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 GRAPHITE GREY |
1 | superseded |
| - | 8M0159655 |
GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 Cambered Skeg GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 Cambered Skeg GRAPHITE GREY |
1 | superseded |
| - | 8M0159656 |
GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 Cambered GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 Cambered GRAPHITE GREY |
1 | superseded |
| - | 8M0159657 |
GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 Cambered GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 Cambered GRAPHITE GREY |
1 | superseded |
| - | 8M0159673 |
GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 COLD FUSION WHITE |
1 | superseded |
| - | 8M0159675 |
GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 COLD FUSION WHITE |
1 | superseded |
| - | 8M0159677 |
GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 COLD FUSION WHITE |
1 | superseded |
| - | 8M0159679 |
GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE |
1 | superseded |
| - | 8M0159680 |
GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE |
1 | superseded |
| - | 8M0159681 |
GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE |
1 | superseded |
| - | 8M0166531 |
GEARCASE SEAL KIT GEARCASE SEAL KIT |
1 | |
| 1 | 8M0159704 |
GEAR ASSEMBLY Basic, 5.44 1.60 COLD FUSION WHITE GEAR ASSEMBLY Basic, 5.44 1.60 COLD FUSION WHITE |
1 | superseded |
| 1 | 8M0159705 |
GEAR HOUSING ASSEMBLY Basic, 5.44 1.60 GRAPHITE GREY GEAR HOUSING ASSEMBLY Basic, 5.44 1.60 GRAPHITE GREY |
1 | superseded |
| 1 | 8M0159706 |
GEAR HOUSING ASSEMBLY Basic, 5.44 1.60 Camber Skeg COLD FUSION WHITE GEAR HOUSING ASSEMBLY Basic, 5.44 1.60 Camber Skeg COLD FUSION WHITE |
1 | superseded |
| 1 | 8M0159707 |
GEAR HOUSING ASSEMBLY Basic 5.44 1.60 Camber Skeg GRAPHITE GREY GEAR HOUSING ASSEMBLY Basic 5.44 1.60 Camber Skeg GRAPHITE GREY |
1 | superseded |
| 1 | 8M0159708 |
GEAR HOUSING ASSEMBLY Basic, (Counter Rotation) 5.44 1.60 Camber Skeg COLD FUSION WHITE GEAR HOUSING ASSEMBLY Basic, (Counter Rotation) 5.44 1.60 Camber Skeg COLD FUSION WHITE |
1 | superseded |
| 1 | 8M0159709 |
GEAR HOUSING ASSEMBLY Basic, (Counter Rotation) 5.44 1.60 Camber Skeg GRAPHITE GREY GEAR HOUSING ASSEMBLY Basic, (Counter Rotation) 5.44 1.60 Camber Skeg GRAPHITE GREY |
1 | superseded |
| 10 | 8M0142836 |
ПОДШИПНИК Конический ролик BEARING Roller Taper (Cup/Cone) |
1 | |
| 11 | 8M0046215 |
КОЛЕНЧАТЫЙ ВАЛ, рычаг переключения передач Палец шарнира 1/4 CRANK, Shifter 1/4 Pivot Pin |
1 | superseded |
| 12 | 8M0142857 |
ЗОЛОТНИК SPOOL ASSEMBLY |
1 | superseded |
| 13 | 469501 |
ШПЛИНТ COTTER PIN |
1 | |
| 14 | 8M0045493 |
ШТИФТ PIN Cross |
1 | |
| 15 | 8M0142871 |
МУФТА СЦЕПЛЕНИЯ Скользящий, 6-кулачковый CLUTCH Sliding 6 Jaw |
1 | |
| 16 | 8M0050575 |
ПРУЖИНА SPRING Cross |
1 | |
| 17 | 8M0142877 |
ВАЛ ГРЕБНОГО ВИНТА SHAFT Propeller |
1 | |
| 18 | 8M0064306 |
ПРОСТАВКА SPACER Thrust |
1 | |
| 19 | 8M0076745 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 2 | 8M0157111 |
PLUG Torpedo PLUG Torpedo |
1 | |
| 20 | 8M0161449 |
BEARING CARRIER ASSEMBLY BEARING CARRIER ASSEMBLY |
1 | |
| 21 | 8M0158926 |
GEAR SET 1.60 Rev/Fwd/Pinion GEAR SET 1.60 Rev/Fwd/Pinion |
1 | |
| 22 | 8M0050704 |
ПОДШИПНИК Игла BEARING Needle |
1 | |
| 23 | 8M0053183 |
ADAPTER |
1 | |
| 24 | 8M0046569 |
КОЛЬЦО Упор RING Thrust |
1 | superseded |
| 25 | 8M0148319 |
ПОДШИПНИК Стакан/конус BEARING Roller Taper Cup/Cone |
1 | |
| 26 | 888483 |
УПЛОТНЕНИЕ Масло SEAL Oil |
2 | superseded |
| 27 | 8M0000190 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (4.475 x 0.210) O-RING (4.475 x .210) |
1 | |
| 28 | 8M0050692 |
ПОДШИПНИК BEARING |
1 | |
| 29 | 8M0053116 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 3 | 8M0046563 |
СТОПОРНОЕ КОЛЬЦО RING Retaining |
1 | |
| 30 | 8M0050688 |
ШАЙБА WASHER |
1 | |
| 31 | 8M0165801 |
BEARING Adaptor BEARING Adaptor |
1 | |
| 32 | 8M0109164 |
ШТИФТ PIN 3/8 Dia x .625 LG |
1 | |
| 33 | 830749 |
УПЛОТНЕНИЕ SEAL |
2 | superseded |
| 34 | 8M0071653 |
ВИНТ Специальный SCREW Special, .375-16 UNC |
2 | |
| 35 | 8M0108527 |
ШАЙБА Транцевая плита WASHER Tab |
1 | |
| 36 | 8M0162798 |
RETAINER Bearing Carrier RETAINER Bearing Carrier |
1 | |
| 37 | 8M0050821 |
КОМПЛЕКТ КРЫШЕК Промывка, стандарт COVER KIT Flush, Standard |
1 | superseded |
| 38 | 8M0036819 |
УСТАНОВОЧНЫЙ ВИНТ (10-32) SET SCREW (10-32) |
1 | |
| 4 | 880719 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 5 | 8M0063270 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 6 | 8M0158926 |
GEAR SET 1.60 Rev/Fwd/Pinion GEAR SET 1.60 Rev/Fwd/Pinion |
1 | |
| 7 | 8M0053823 |
УПОРНАЯ ШАЙБА WASHER Thrust, (1.50 ID x 2.046 OD) |
1 | |
| 8 | 8M0051043 |
СТОПОРНОЕ КОЛЬЦО RING Retaining |
1 | |
| 9 | 8M0142835 |
ПОДШИПНИК Конический ролик BEARING Roller Taper (Cup/Cone) |
1 |
