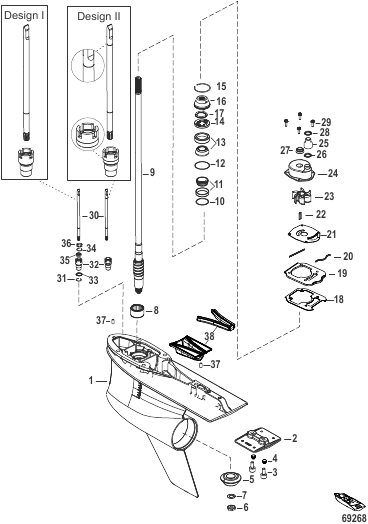

Gear Housing, Driveshaft, 5.44 Torpedo, 1.60
Parts (81)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0159649 |
GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 GRAPHITE GREY |
1 | superseded |
| - | 8M0159650 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 GRAPHITE GREY |
1 | superseded |
| - | 8M0159651 |
GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 GRAPHITE GREY |
1 | superseded |
| - | 8M0159652 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 GRAPHITE GREY |
1 | superseded |
| - | 8M0159653 |
GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 GRAPHITE GREY |
1 | superseded |
| - | 8M0159654 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 GRAPHITE GREY |
1 | superseded |
| - | 8M0159655 |
GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 Cambered Skeg GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 Cambered Skeg GRAPHITE GREY |
1 | superseded |
| - | 8M0159656 |
GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 Cambered GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 Cambered GRAPHITE GREY |
1 | superseded |
| - | 8M0159657 |
GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 Cambered GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 Cambered GRAPHITE GREY |
1 | superseded |
| - | 8M0159658 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 Cambered Skeg GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 Cambered Skeg GRAPHITE GREY |
1 | superseded |
| - | 8M0159659 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 Cambered GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 Cambered GRAPHITE GREY |
1 | superseded |
| - | 8M0159660 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 Cambered Skeg GRAPHITE GREY GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 Cambered Skeg GRAPHITE GREY |
1 | superseded |
| - | 8M0159673 |
GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 COLD FUSION WHITE |
1 | superseded |
| - | 8M0159674 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 COLD FUSION WHITE |
1 | superseded |
| - | 8M0159675 |
GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 COLD FUSION WHITE |
1 | superseded |
| - | 8M0159676 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 COLD FUSION WHITE |
1 | superseded |
| - | 8M0159677 |
GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 COLD FUSION WHITE |
1 | superseded |
| - | 8M0159678 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 COLD FUSION WHITE |
1 | superseded |
| - | 8M0159679 |
GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE |
1 | superseded |
| - | 8M0159680 |
GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE |
1 | superseded |
| - | 8M0159681 |
GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE |
1 | superseded |
| - | 8M0159682 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE |
1 | superseded |
| - | 8M0159683 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE |
1 | superseded |
| - | 8M0159684 |
GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE |
1 | superseded |
| - | 8M0185160 |
IMPELLER REPAIR KIT IMPELLER REPAIR KIT |
1 | |
| - | 8M0166531 |
GEARCASE SEAL KIT GEARCASE SEAL KIT |
1 | |
| 1 | 8M0159704 |
GEAR ASSEMBLY Basic, 5.44 1.60 COLD FUSION WHITE GEAR ASSEMBLY Basic, 5.44 1.60 COLD FUSION WHITE |
1 | superseded |
| 1 | 8M0159705 |
GEAR HOUSING ASSEMBLY Basic, 5.44 1.60 GRAPHITE GREY GEAR HOUSING ASSEMBLY Basic, 5.44 1.60 GRAPHITE GREY |
1 | superseded |
| 1 | 8M0159706 |
GEAR HOUSING ASSEMBLY Basic, 5.44 1.60 Camber Skeg COLD FUSION WHITE GEAR HOUSING ASSEMBLY Basic, 5.44 1.60 Camber Skeg COLD FUSION WHITE |
1 | superseded |
| 1 | 8M0159707 |
GEAR HOUSING ASSEMBLY Basic 5.44 1.60 Camber Skeg GRAPHITE GREY GEAR HOUSING ASSEMBLY Basic 5.44 1.60 Camber Skeg GRAPHITE GREY |
1 | superseded |
| 1 | 8M0159708 |
GEAR HOUSING ASSEMBLY Basic, (Counter Rotation) 5.44 1.60 Camber Skeg COLD FUSION WHITE GEAR HOUSING ASSEMBLY Basic, (Counter Rotation) 5.44 1.60 Camber Skeg COLD FUSION WHITE |
1 | superseded |
| 1 | 8M0159709 |
GEAR HOUSING ASSEMBLY Basic, (Counter Rotation) 5.44 1.60 Camber Skeg GRAPHITE GREY GEAR HOUSING ASSEMBLY Basic, (Counter Rotation) 5.44 1.60 Camber Skeg GRAPHITE GREY |
1 | superseded |
| 10 | 8M0063268 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 11 | 8M0146553 |
БЛОК ПОДШИПНИКА Стакан/конус BEARING ASSEMBLY Cup/Cone |
1 | |
| 12 | 8M0063267 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 13 | 8M0146566 |
БЛОК ПОДШИПНИКА Стакан/конус BEARING ASSEMBLY Cup/Cone |
1 | |
| 14 | 8245191 |
ФИКСАТОР RETAINER |
1 | |
| 15 | 880719 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 16 | 8M0161436 |
OIL SEAL CARRIER ASSEMBLY OIL SEAL CARRIER ASSEMBLY |
1 | |
| 17 | 8M0142854 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING (2.175 x .103) |
1 | |
| 18 | 8M0146938 |
ПРОКЛАДКА Основание водяного насоса GASKET Water Pump Base |
1 | |
| 19 | 8M0142869 |
КОЖУХ КРЫШКИ Редуктор COVER HOUSING Gearcase |
1 | superseded |
| 2 | 8M0137814 |
АНОД ПРОТИВОВЕНТИЛЯЦИОННАЯ ПЛАСТИНА ANODE Antivent Plate (Aluminum) |
1 | |
| 2 | 8M0200103 |
ANODE Antivent Plate (Magnesium) Not Included in Gear Housing Assembly ANODE Antivent Plate (Magnesium) Not Included in Gear Housing Assembly |
1 | |
| 20 | 8M0142659 |
УПЛОТНЕНИЕ SEAL Formed, Actuator |
2 | |
| 21 | 8M0161897 |
FACEPLATE GASKET FACEPLATE GASKET |
1 | superseded |
| 22 | 8M0032833 |
КЛЮЧ KEY |
1 | superseded |
| 23 | 43026T2 |
КРЫЛЬЧАТКА IMPELLER |
1 | |
| 24 | 817275A1 |
КОМПЛЕКТ КОРПУСА Водяной насос HOUSING KIT Water Pump |
1 | |
| 25 | 8M0166309 |
COUPLING Water Pump [1E093311] & Below COUPLING Water Pump [1E093311] & Below |
1 | |
| 25 | 8M0200112 |
COUPLING Water Pump [1E093312] & Up COUPLING Water Pump [1E093312] & Up |
1 | |
| 26 | 21836 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.796 x 0.139) O-RING (.796 x .139) |
1 | superseded |
| 27 | 8M0142851 |
КОЛЬЦЕВОЕ УПЛОТНЕНИЕ V-ОБРАЗНОГО СЕЧЕНИЯ Торцевое уплотнение VRING Face Seal |
1 | |
| 28 | 21836 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.796 x 0.139) O-RING (.796 x .139) |
1 | superseded |
| 29 | 1993720 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
4 | superseded |
| 3 | 8M0142850 |
ВИНТ (M10 X 25) SCREW (M10 X 25) |
2 | |
| 30 | 8M0142858 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ Длинный Design I SHIFT SHAFT Long Design I |
1 | superseded |
| 30 | 8M0164968 |
SHIFT SHAFT Long Includes Bushing Design II Design II SHIFT SHAFT Long Includes Bushing Design II Design II |
1 | |
| 30 | 8M0142865 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ Сверхдлинный, XL Design I SHIFT SHAFT X-Long Design I |
1 | superseded |
| 30 | 8M0164969 |
SHIFT SHAFT XLong Includes Bushing Design II Design II SHIFT SHAFT XLong Includes Bushing Design II Design II |
1 | |
| 30 | 8M0142885 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ Сверхдлинный, XXL Design I SHIFT SHAFT XX-Long Design I |
1 | superseded |
| 30 | 8M0164970 |
SHIFT SHAFT XX-Long Includes Bushing Design II Design II SHIFT SHAFT XX-Long Includes Bushing Design II Design II |
1 | |
| 31 | 8M0142866 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 32 | 8M0142859 |
ВТУЛКА Вал переключения передач Design I BUSHING Shift Shaft Design I |
1 | |
| 32 | 8M0164967 |
BUSHING Shift Shaft Design II BUSHING Shift Shaft Design II |
1 | |
| 33 | 8M0142860 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING .706 x .097 |
1 | |
| 34 | 8M0046563 |
СТОПОРНОЕ КОЛЬЦО RING Retaining |
1 | |
| 35 | 8164641 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | superseded |
| 36 | 77674 |
ШАЙБА WASHER (.35 x .75 x .12) |
1 | |
| 37 | 8M0084244 |
ШТИФТ Штифт PIN Dowel, .375 x .620 |
2 | |
| 38 | 8M0142786 |
ГЛУШИТЕЛЬ Нижний выхлоп JPO MUFFLER Lower Exhaust JPO |
1 | superseded |
| 38 | 8M0142587 |
ПРОБКА Нижний глушитель выхлопного отверстия Non-JPO PLUG Lower Relief Muffler Non-JPO |
1 | |
| 4 | 8M0142878 |
ПРОБКА Винт PLUG Screw |
2 | |
| 5 | 8M0158926 |
GEAR SET 1.60 Rev/Fwd/Pinion Standard Rotation GEAR SET 1.60 Rev/Fwd/Pinion Standard Rotation |
1 | |
| 5 | 8M0208545 |
GEAR SET 1.60 Rev/Fwd/Pinion Counter Rotation GEAR SET 1.60 Rev/Fwd/Pinion Counter Rotation |
1 | |
| 6 | 8M0046636 |
ГАЙКА NUT |
1 | |
| 7 | 8M0062703 |
ШАЙБА WASHER |
2 | |
| 8 | 8M0045676 |
ПОДШИПНИК Ролик BEARING Roller |
1 | |
| 9 | 8M0149608 |
ДЛИННЫЙ ВЕДУЩИЙ ВАЛ В СБОРЕ DRIVESHAFT ASSEMBLY Long |
1 | |
| 9 | 8M0141337 |
DRIVESHAFT ASSEMBLY X-Long DRIVESHAFT ASSEMBLY X-Long |
1 | |
| 9 | 8M0141338 |
DRIVESHAFT ASSEMBLY XX-Long DRIVESHAFT ASSEMBLY XX-Long |
1 |
