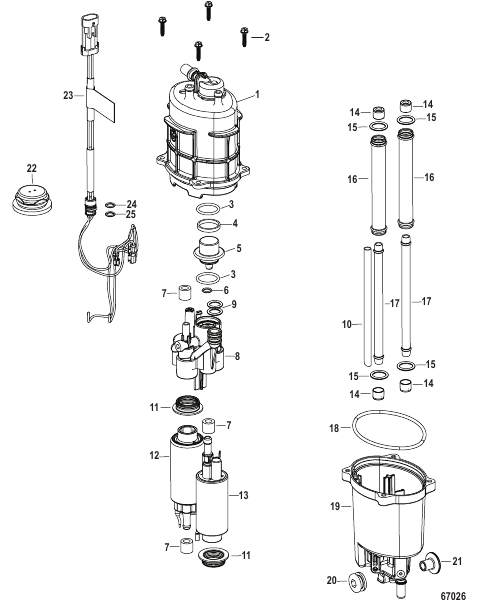

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0161387 |
FUEL SUPPLY MODULE
|
1 |
superseded
|
| - |
8M0133370 |
FSM SEAL KIT
|
1 |
|
| 1 |
8M0053726 |
FSM TOP HOUSING
|
1 |
superseded
|
| 10 |
8M0161398 |
TUBE SUCTION
|
1 |
|
| 11 |
NSS |
NOT SOLD SEPARATE Seal
|
2 |
|
| 12 |
8M0161400 |
PUMP ASSEMBLY HIGH PRESSURE
|
1 |
|
| 13 |
8M0161399 |
PUMP ASSEMBLY LOW PRESSURE
|
1 |
|
| 14 |
NSS |
NOT SOLD SEPARATE Seal
|
4 |
|
| 15 |
NSS |
NOT SOLD SEPARATE O-Ring
|
4 |
|
| 16 |
8M0120073 |
TUBE Water
|
2 |
|
| 17 |
8M0161401 |
TUBE FUEL
|
2 |
|
| 18 |
NSS |
NOT SOLD SEPARATE Seal
|
1 |
|
| 19 |
8M0130878 |
FSM BOTTOM HOUSING
|
1 |
superseded
|
| 2 |
8M0053756 |
SCREW Plastite W/ HX WSR HD
|
4 |
|
| 20 |
895319 |
GROMMET
|
1 |
|
| 21 |
856954 |
BUSHING
|
1 |
|
| 22 |
8M0086888 |
GROMMET FSM Harness Spacer
|
1 |
|
| 23 |
8M0161402 |
HARNESS ASSEMBLY
|
1 |
|
| 24 |
NSS |
NOT SOLD SEPARATE O-Ring
|
1 |
|
| 25 |
NSS |
NOT SOLD SEPARATE O-Ring
|
1 |
|
| 3 |
NSS |
NOT SOLD SEPARATE O-Ring
|
2 |
|
| 4 |
NSS |
NOT SOLD SEPARATE Spacer
|
1 |
|
| 5 |
8M0053749 |
REGULATOR ASSEMBLY
|
1 |
|
| 6 |
NSS |
NOT SOLD SEPARATE O-Ring
|
1 |
|
| 7 |
NSS |
NOT SOLD SEPARATE Seal
|
3 |
|
| 8 |
8M0161397 |
FSM CAP
|
1 |
|
| 9 |
NSS |
NOT SOLD SEPARATE O-Ring
|
2 |
|
