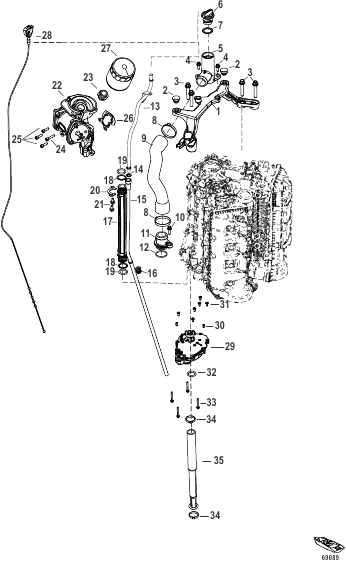

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0142467 |
BRACKET Oil Fill
|
1 |
|
| 10 |
8M0103805 |
SCREW (M6 x 16mm) Stainless Steel
|
1 |
|
| 11 |
8M0142468 |
TUBE Oil Fill
|
1 |
|
| 12 |
8M0044601 |
O-RING
|
1 |
|
| 13 |
8M0159624 |
TUBE DIPSTICK UPPER
|
1 |
|
| 14 |
8M0142481 |
O-RING (0.362 x 0.103)
|
1 |
|
| 15 |
8M0142463 |
TUBE Dipstick
|
1 |
superseded
|
| 16 |
8M0142471 |
GROMMET (0.375 IN)
|
1 |
superseded
|
| 17 |
8M0158591 |
OIL TUBE ASSEMBLY Pump to Filter
|
1 |
|
| 18 |
8M0142452 |
O-RING (70 Durometer)
|
2 |
|
| 19 |
8M0142450 |
O-RING (70 Durometer) Design 1 - Round and Orange
|
2 |
disc.
|
| 19 |
8M0171370 |
SEAL Oil Tube Design 2- Square and White
|
2 |
|
| 2 |
8M0096302 |
GROMMET
|
2 |
|
| 20 |
8M0142484 |
BRACKET Oil FIlter
|
1 |
|
| 21 |
8M0103804 |
SCREW (M6 x 12 MM) Stainless Steel
|
2 |
|
| 22 |
8M0159625 |
OIL COOLER ASSEMBLY
|
1 |
|
| 23 |
8M0159626 |
ADAPTER OIL FILTER
|
1 |
|
| 24 |
82494830 |
SCREW (M6 x 30)
|
1 |
|
| 25 |
4008820 |
SCREW (M6 x 20)
|
3 |
|
| 26 |
8M0159627 |
GASKET OIL FILTER APAPTER
|
1 |
|
| 27 |
8M0123025 |
OIL FILTER
|
1 |
|
| 28 |
8M0142576 |
DIPSTICK
|
1 |
|
| 29 |
8M0142403 |
OIL PUMP ASSEMBLY
|
1 |
|
| 3 |
8M0142460 |
SCREW (M8 x 45) Hex Flg
|
4 |
|
| 30 |
8M0142408 |
DOWEL Pin
|
2 |
|
| 31 |
8M0142407 |
SCREW (M6) HEX SOCKET FLAT X 16 LG
|
6 |
|
| 32 |
8M6001577 |
O-RING M6 X 46
|
1 |
|
| 33 |
8M0142401 |
SCREW (M6) HX FL REDUCED HEAD
|
4 |
|
| 34 |
8M6000385 |
CLAMP (39.6 MM)
|
2 |
superseded
|
| 35 |
8M0142402 |
OIL PICK UP ASSEMBLY
|
1 |
|
| 4 |
8M0103805 |
SCREW (M6 x 16mm) Stainless Steel
|
2 |
|
| 5 |
8M0142478 |
NECK Oil Fill
|
1 |
|
| 6 |
8M0142290 |
CAP Oil
|
1 |
|
| 7 |
90196 |
O-RING (.921 x .139)
|
1 |
superseded
|
| 8 |
8M6001459 |
CLAMP (45.5)
|
2 |
|
| 9 |
8M0142469 |
HOSE Oil Fill
|
1 |
superseded
|
