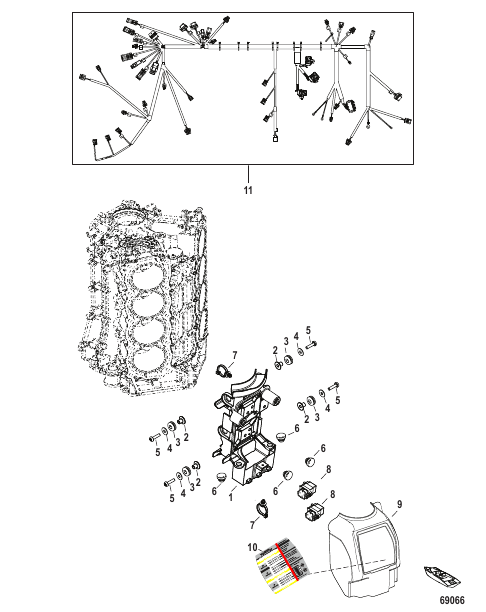

Electrical Plate
Parts (12)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0057697 |
КУБИЧЕСКОЕ РЕЛЕ MPR, Start, Fuel CUBE RELAY MPR, Start, Fuel |
3 | superseded |
| 1 | 8M0159601 |
PLATE ELECTRICAL PLATE ELECTRICAL |
1 | |
| 10 | 8M0159602 |
DECAL Maintenance Schedule DECAL Maintenance Schedule |
1 | |
| 11 | 8M0159599 |
HARNESS Engine Wiring HARNESS Engine Wiring |
1 | |
| 2 | 856954 |
ВТУЛКА BUSHING |
4 | |
| 3 | 834985 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 | superseded |
| 4 | 65567 |
ШАЙБА (0.265 x 0.750 x 0.048), нержавеющая сталь WASHER (.265 x .750 x .048) Stainless Steel |
4 | |
| 5 | 8M0142686 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
4 | |
| 6 | 8M0096302 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 | |
| 7 | 899145 |
ЗАЖИМ Ленточный хомут CLIP Tie Strap |
2 | |
| 8 | 882751 |
РЕЛЕ Trim RELAY Trim |
2 | superseded |
| 9 | 8M0142479 |
КРЫШКА Электрическая панель COVER Electrical Plate |
1 |
