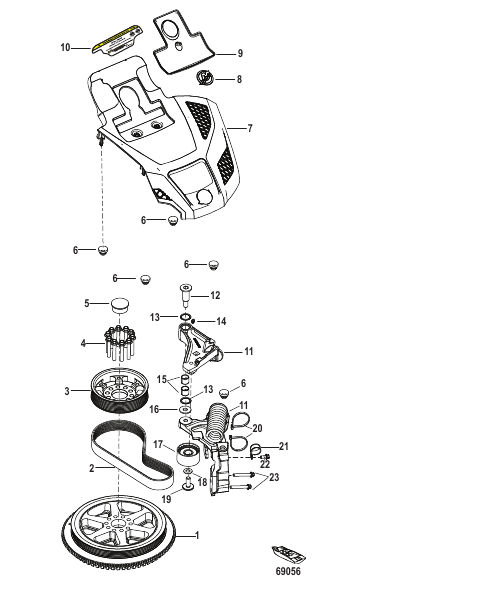

Flywheel and Tensioner Assembly
Parts (23)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0159593 |
FLYWHEEL FLYWHEEL |
1 | superseded |
| 10 | 8M0159598 |
DECAL Check Engine Oil DECAL Check Engine Oil |
1 | |
| 11 | 8M0164060 |
TENSIONER ASSEMBLY TENSIONER ASSEMBLY |
1 | |
| 12 | 8M0175978 |
SCREW Tensioner SCREW Tensioner |
1 | |
| 13 | 896522 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (799 x 0.103) O-RING (799 x .103) |
2 | |
| 14 | 98727 |
ФИТИНГ Смазка FITTING Grease |
1 | superseded |
| 15 | 823943 |
ВТУЛКА BUSHING |
2 | |
| 16 | 4002320 |
ШАЙБА WASHER |
1 | |
| 17 | 8M0164261 |
PULLEY Idler PULLEY Idler |
1 | |
| 18 | 841388 |
ШАЙБА (0.410 x 0.810 x 0.050), нержавеющая сталь WASHER (.410 x .810 x .050) Stainless Steel |
1 | |
| 19 | 885349501 |
ВИНТ SCREW |
1 | |
| 2 | 8M0159595 |
BELT BELT |
1 | |
| 20 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
1 | |
| 21 | 866029 |
ЗАЖИМ CLAMP |
1 | |
| 22 | 88552514 |
ВИНТ (M6 x 14 мм), нержавеющая сталь SCREW (M6 x 14 MM) Stainless Steel |
1 | |
| 23 | 8M0103817 |
ВИНТ (M8 x 60) SCREW (M8 x 60) |
1 | |
| 3 | 8M0159594 |
FLYWHEEL PULLEY FLYWHEEL PULLEY |
1 | |
| 4 | 8M0159596 |
SCREW M8 x 1 x 150 HEX FLANGE HD SCREW M8 x 1 x 150 HEX FLANGE HD |
10 | |
| 5 | 8M0142389 |
ПРОБКА Маховик PLUG Flywheel |
1 | superseded |
| 6 | 8M0096302 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
5 | |
| 7 | 8M0159597 |
COVER, FLYWHEEL ASSEMBLY COVER, FLYWHEEL ASSEMBLY |
1 | discontinued |
| 8 | 8M0080154 |
НАКЛЕЙКА ЗНАЧОК M, синий DECAL M-ICON, Blue |
1 | |
| 9 | 8M0142470 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 |
