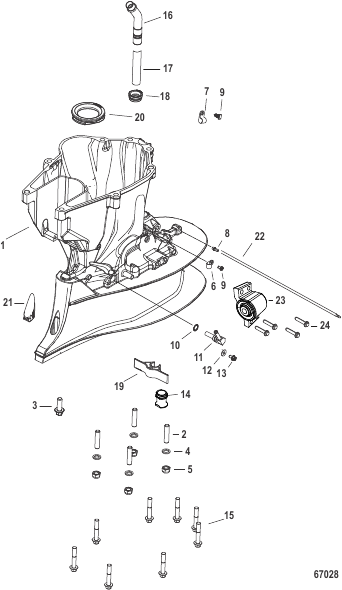

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0057710 |
DRIVESHAFT HOUSING X-long
|
1 |
disc.
|
| 1 |
8M0063489 |
DRIVESHAFT HOUSING Long
|
1 |
superseded
|
| 10 |
892446 |
O-RING (14 X 1.78 MM)
|
1 |
|
| 11 |
8M0050013 |
FITTING Exhaust Cooling
|
1 |
|
| 12 |
4002316 |
WASHER (6.60 X 17.0 X 1.5SS)
|
1 |
superseded
|
| 13 |
8M0103804 |
SCREW (M6 x 12 MM) Stainless Steel
|
1 |
|
| 14 |
8M0143836 |
BUSHING Shift Shaft
|
1 |
|
| 15 |
8M0069690 |
SCREW (M10 X 1.5 X 60)
|
8 |
|
| 16 |
8M0050520 |
TUBE Water, X-Long
|
1 |
|
| 16 |
8M0050571 |
TUBE Water, Long
|
1 |
|
| 17 |
8M0029215 |
WATER TUBE
|
1 |
|
| 18 |
8M0035476 |
GROMMET Water Tube
|
1 |
|
| 19 |
8M0042271 |
GUIDE Water Tube
|
1 |
|
| 2 |
8M0070951 |
STUD (M12 x 1.75 x 52)
|
4 |
|
| 20 |
8M0033182 |
SEAL Exhaust Pipe
|
1 |
|
| 21 |
8M0053657 |
PLUG X-Long, Rear Driveshaft Housing
|
1 |
|
| 21 |
8M0053658 |
PLUG Long, Rear Driveshaft Housing
|
1 |
|
| 22 |
8M0057706 |
HOSE ASSEMBLY Speedometer
|
1 |
|
| 23 |
8M0057725 |
LOWER MOUNT ASSEMBLY
|
2 |
|
| 24 |
8M0069689 |
SCREW (M10x1.5x40) Hex Flange
|
8 |
|
| 3 |
8M0102995 |
SCREW (M12)
|
1 |
|
| 4 |
856982 |
WASHER (.500 x .810 x .090) Stainless Steel
|
4 |
|
| 5 |
896895 |
NUT (M12)
|
4 |
|
| 6 |
8M0051768 |
CLAMP Cable .375
|
1 |
|
| 7 |
24836 |
CLIP
|
1 |
|
| 8 |
8M0062365 |
FITTING Straight
|
1 |
|
| 9 |
8M0037204 |
SCREW Nylon, Push-In (.25-20 x .50)
|
2 |
|
