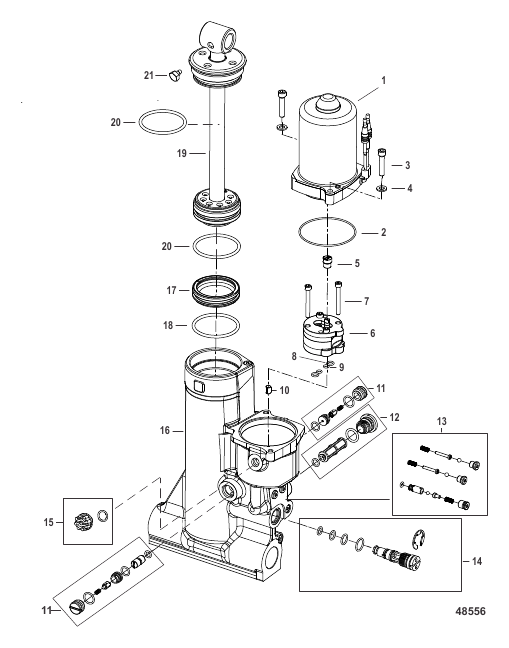

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0060142 |
TRIM CYL REBUILD KIT
|
1 |
|
| - |
8M0057770 |
TRIM CYLINDER SEAL KIT Complete
|
1 |
|
| - |
8M0127334 |
POPPET SEAL KIT
|
1 |
|
| 1 |
8M0060140 |
TRIM ASSEMBLY MOTOR KIT
|
1 |
|
| 10 |
NSS |
NOT SOLD SEPARATE Bushing
|
1 |
|
| 11 |
8M0060126 |
TRIM ASSEMBLY PO CHECK KIT
|
1 |
|
| 12 |
8M0060143 |
TRIM ASSEMBLY FILTER KIT
|
1 |
|
| 13 |
8M0060128 |
RELIEF VALVE KIT
|
1 |
|
| 14 |
8M0060141 |
MANUAL RELEASE KIT
|
1 |
|
| 15 |
811613 |
PLUG ASSEMBLY
|
1 |
|
| 16 |
NSS |
NOT SOLD SEPARATE
|
1 |
|
| 17 |
8M0060146 |
MEMORY PISTON KIT
|
1 |
|
| 18 |
NSS |
NOT SOLD SEPARATE O-ring, Component of 8M0060142
|
1 |
|
| 19 |
8M0060145 |
SHOCK ROD ASSEMBLY
|
1 |
|
| 2 |
NSS |
NOT SOLD SEPARATE O-ring
|
1 |
|
| 20 |
NSS |
NOT SOLD SEPARATE O-ring, Component of 8M0060142
|
2 |
|
| 21 |
8M0050058 |
SCREW 5/16-24 X .5
|
1 |
superseded
|
| 3 |
82494830 |
SCREW (M6 x 30)
|
2 |
|
| 4 |
400256 |
LOCKWASHER (M6)
|
2 |
|
| 5 |
8M0090403 |
COUPLING Drive
|
1 |
|
| 6 |
8M0060127 |
TRIM ASSEMBLY PUMP KIT
|
1 |
|
| 7 |
NSS |
NOT SOLD SEPARATE Screw
|
2 |
|
| 8 |
NSS |
NOT SOLD SEPARATE O-ring
|
2 |
|
| 9 |
NSS |
NOT SOLD SEPARATE O-ring
|
2 |
|
