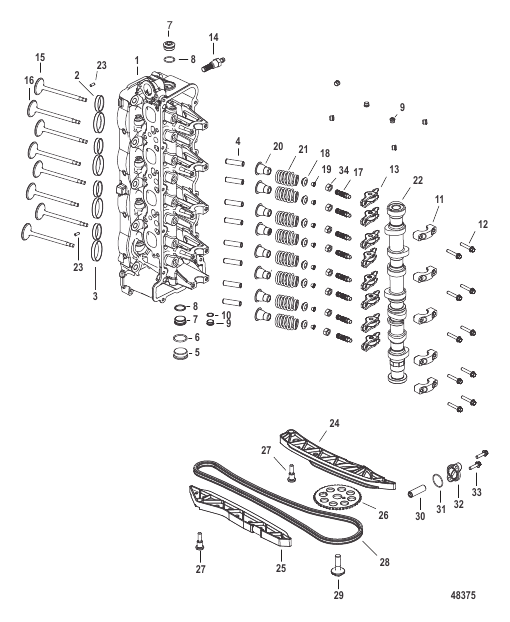

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0098629 |
CYLINDER HEAD ASSEMBLY
|
1 |
superseded
|
| 1 |
8M0057648 |
CYLINDER HEAD Bare
|
1 |
|
| 10 |
NSS |
NOT SOLD SEPARATE O-ring, M1.5 X 7
|
1 |
|
| 11 |
NSS |
NOT SOLD SEPARATE
|
4 |
|
| 12 |
892454035 |
BOLT (M6 x 36)
|
10 |
superseded
|
| 13 |
8M0032524 |
ROLLER FINGER FOLLOWER ASSY
|
1 |
|
| 14 |
8M0058214 |
FITTING Water Strainer
|
1 |
|
| 15 |
8M0098634 |
VALVE Exhaust
|
4 |
|
| 16 |
8M0098635 |
VALVE Intake
|
4 |
|
| 17 |
8M0047625 |
STUD Ball End M10 X 1
|
8 |
|
| 18 |
8M0037758 |
RETAINER Valve
|
8 |
|
| 19 |
8M0035317 |
KEY Valve Retainer 2 per valve
|
16 |
|
| 2 |
8M0029981 |
VALVE SEAT Exhaust
|
4 |
|
| 20 |
NSS |
NOT SOLD SEPARATE
|
8 |
|
| 21 |
8M6001704 |
SPRING Valve
|
8 |
|
| 22 |
8M0057653 |
CAMSHAFT ASSEMBLY
|
1 |
superseded
|
| 23 |
8M0084726 |
PIN Dowel
|
2 |
|
| 24 |
8M0035600 |
BLADE Timing Chain
|
1 |
|
| 25 |
8M0035484 |
GUIDE Fixed, Timing Chain
|
1 |
|
| 26 |
880550 |
SPROCKET
|
1 |
superseded
|
| 27 |
8M0086569 |
SCREW Shoulder (M8 x 1.25)
|
2 |
|
| 28 |
8M0126057 |
CHAIN Cam
|
1 |
|
| 29 |
8M0021532 |
SCREW (M12 x 40 MM) Left Hand Thread
|
1 |
superseded
|
| 3 |
8M0029982 |
VALVE SEAT Intake
|
4 |
|
| 30 |
8M0057657 |
TENSIONER ASSEMBLY Timing Chain
|
1 |
|
| 31 |
898836 |
O-RING Brown
|
1 |
superseded
|
| 32 |
8M0064752 |
END CAP Cam Tensioner
|
1 |
|
| 33 |
8M0103807 |
SCREW (M6 x 25 mm) Stainless Steel
|
2 |
|
| 34 |
8M0047686 |
NUT M10 X 1
|
8 |
|
| 4 |
8M0029980 |
VALVE GUIDE
|
8 |
|
| 5 |
8M0087454 |
PLUG (30 MM)
|
1 |
|
| 6 |
NSS |
NOT SOLD SEPARATE O-ring, M2.5 X 7
|
1 |
|
| 7 |
8M0087453 |
PLUG (24 MM)
|
2 |
|
| 8 |
NSS |
NOT SOLD SEPARATE O-ring, M2 X 21
|
2 |
|
| 9 |
8M0087446 |
PLUG (10 MM)
|
7 |
|
