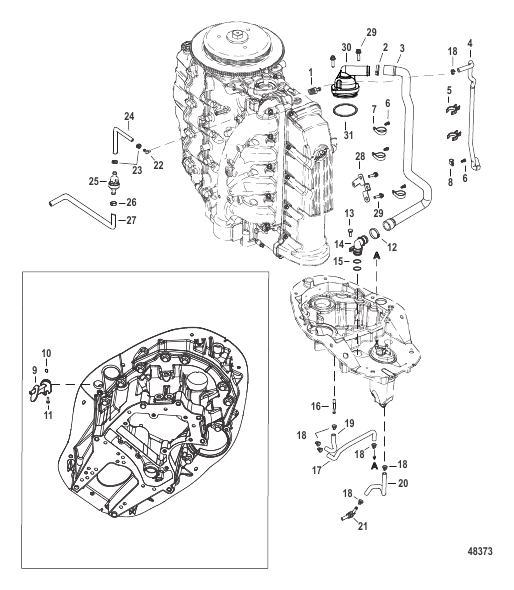

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0058214 |
FITTING Water Strainer
|
1 |
|
| 10 |
38101 |
O-RING (.674 x .103)
|
1 |
|
| 11 |
8M0103805 |
SCREW (M6 x 16mm) Stainless Steel
|
1 |
|
| 12 |
888988011 |
CLAMP (38.1 MM)
|
1 |
|
| 13 |
8M0103807 |
SCREW (M6 x 25 mm) Stainless Steel
|
1 |
|
| 14 |
885518A02 |
FITTING ASSEMBLY
|
1 |
|
| 15 |
62701 |
O-RING
|
2 |
|
| 16 |
8M0038205 |
FITTING Straight
|
1 |
|
| 17 |
8M0028130 |
HOSE FSM, Water Inlet
|
1 |
|
| 18 |
816311T |
TIE STRAP (8.00 Inches)
|
5 |
|
| 19 |
8M0035248 |
HOSE Drain
|
1 |
|
| 2 |
888988001 |
CLAMP (36.1 mm)
|
1 |
superseded
|
| 20 |
8M0045298 |
HOSE Sprayer
|
1 |
|
| 21 |
8M0050013 |
FITTING Exhaust Cooling
|
1 |
|
| 22 |
8M0035658 |
FITTING 90° with sealant
|
1 |
|
| 23 |
888988022 |
CLAMP
|
2 |
|
| 24 |
8M0057620 |
HOSE Flush
|
1 |
|
| 25 |
8M0102826 |
HOSE ASSEMBLY Flushing
|
1 |
|
| 26 |
855697 |
CLAMP
|
1 |
superseded
|
| 27 |
8M0057599 |
TUBING (8 ID X 14 OD X 840 MM)
|
1 |
|
| 28 |
8M0048537 |
BRACKET Hose Clip
|
1 |
|
| 29 |
8M0103807 |
SCREW (M6 x 25 mm) Stainless Steel
|
4 |
|
| 3 |
8M0028132 |
HOSE Thermostat
|
1 |
|
| 30 |
892864T06 |
THERMOSTAT AND HOUSING ASSEMBLY Thermostat
|
1 |
superseded
|
| 31 |
8M0005958 |
O-RING
|
1 |
|
| 4 |
8M0028275 |
HOSE Tell Tale
|
1 |
|
| 5 |
892833 |
CLIP
|
2 |
|
| 6 |
8M0037204 |
SCREW Nylon, Push-In (.25-20 x .50)
|
4 |
|
| 7 |
8M0035891 |
CLIP Hose
|
3 |
|
| 8 |
8M0037098 |
CLIP Hose
|
1 |
superseded
|
| 9 |
8M0057702 |
TELLTALE
|
1 |
|
