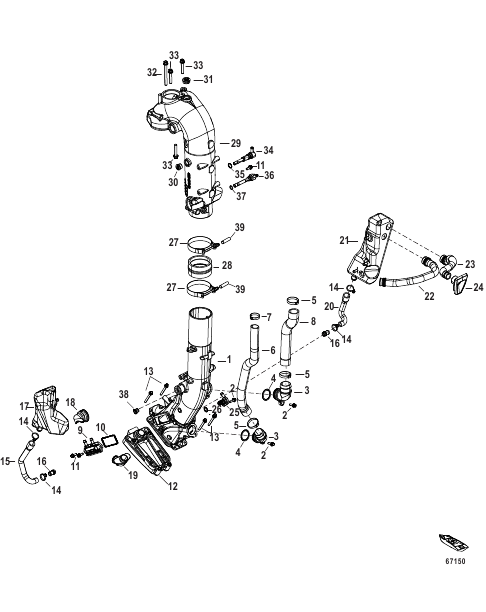

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0142971 |
GASKET SET Powerhead
|
1 |
|
| 1 |
8M0142728 |
PIPE Exhaust
|
1 |
|
| 10 |
8M0142720 |
SEAL
|
1 |
|
| 11 |
8M0103805 |
SCREW (M6 x 16mm) Stainless Steel
|
3 |
|
| 12 |
8M0142721 |
GROMMET Exhaust
|
1 |
|
| 13 |
8M0142726 |
SCREW (M6)
|
4 |
|
| 14 |
816311T |
TIE STRAP (8.00 Inches)
|
4 |
|
| 15 |
8M0142738 |
HOSE Drain-Port
|
1 |
|
| 16 |
8M0142729 |
FITTING
|
2 |
|
| 17 |
8M0142734 |
MUFFLER ASSEMBLY Port
|
1 |
|
| 18 |
8M0142740 |
GROMMET
|
1 |
|
| 19 |
8M0142732 |
FITTING ELBOW
|
1 |
|
| 2 |
8M0103806 |
SCREW (M6 x 20 MM) Stainless Steel
|
3 |
|
| 20 |
8M0142739 |
HOSE Drain-Starboard
|
1 |
|
| 21 |
8M0142735 |
MUFFLER ASSEMBLY Starboard
|
1 |
|
| 22 |
8M0142741 |
HOSE Crossover, Idle Relief
|
1 |
|
| 23 |
8M0142737 |
HOSE Idle Relief
|
1 |
|
| 24 |
8M0142736 |
GROMMET
|
1 |
|
| 25 |
8M0142730 |
FITTING
|
1 |
superseded
|
| 26 |
201951 |
O-RING (.487 x .103)
|
1 |
|
| 27 |
8M0142541 |
CLAMP (93.7 MM DIA)
|
2 |
superseded
|
| 28 |
8M0142538 |
COUPLING
|
1 |
superseded
|
| 29 |
8M0142535 |
MANIFOLD Exhaust
|
1 |
|
| 3 |
8M0142731 |
FITTING ELBOW
|
2 |
|
| 30 |
8M0087451 |
PLUG (18MM)
|
1 |
|
| 31 |
8M0087453 |
PLUG (24 MM)
|
1 |
|
| 32 |
8M0142533 |
SCREW (M8 x 85)
|
1 |
|
| 33 |
88552645 |
SCREW (M8X45)
|
3 |
|
| 34 |
8M0142534 |
FITTING Sprayer
|
1 |
|
| 35 |
892446 |
O-RING (14 X 1.78 MM)
|
1 |
|
| 36 |
8M0142536 |
FITTING Sprayer
|
1 |
|
| 37 |
863006 |
O-RING (10.82 x 1.78)
|
1 |
|
| 38 |
8M0142499 |
REDUCER Lower Relief Muffler
|
1 |
|
| 39 |
8M0148727 |
CAP Vinyl
|
2 |
|
| 4 |
86614 |
O-RING (1.049 x .103)
|
2 |
|
| 5 |
888988011 |
CLAMP (38.1 MM)
|
3 |
|
| 6 |
8M0142727 |
TUBE Water Outlet
|
1 |
|
| 7 |
8M0028753 |
CLAMP Oetiker (31.6 Diameter)
|
1 |
|
| 8 |
8M0142725 |
TUBE Water Inlet
|
1 |
|
| 9 |
8M0142719 |
STRAINER ASSEMBLY
|
1 |
|
