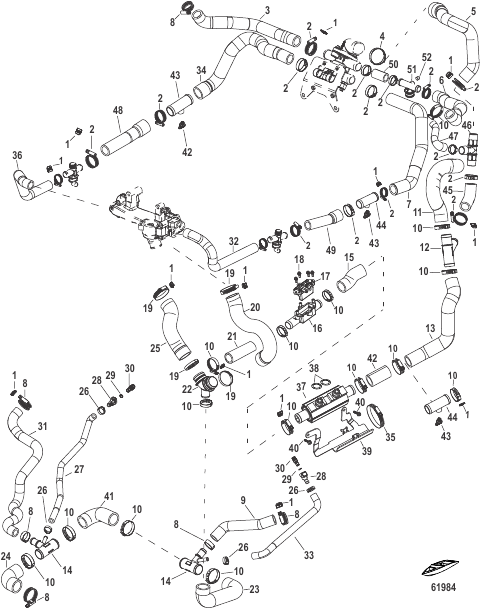

Raw Water Cooling Cooling Hoses

Parts (52)

#	Part Number	Description	Qty	Status
1	8M0074364	ПРОБКА COVER Hose Clamp	AR
10	815504222	ЗАЖИМ Червячная передача (диаметр 1.98) CLAMP Worm Gear (1.98 DIameter)	AR	superseded
11	8M0097315	РУКАВ Steering Cooler to Y Fitting HOSE Steering Cooler to Y Fitting	1
12	8M2003728	Y-ОБРАЗНЫЙ ФИТИНГ Y-FITTING	1
13	8M0097316	РУКАВ Y Fitting to Drain Fitting HOSE Y Fitting to Drain Fitting	1
14	8M0088893	ФИТИНГ Drain FITTING Drain	2
15	8M0099294	РУКАВ Drain Fitting to Strainer HOSE Drain Fitting to Strainer	1
16	8M0095457	СЕТЧАТЫЙ ФИЛЬТР В СБОРЕ STRAINER ASSEMBLY	1
17	8M0097249	КРЫШКА   COVER	1
18	8M0086279	ВИНТ (M6) SCREW (M6)	4
19	815504232	ЗАЖИМ Червячная передача (диаметр 2.50) CLAMP Worm Gear (2.50 Diameter)	4
2	815504216	ЗАЖИМ Червячная передача (диаметр 1.56) CLAMP Worm Gear (1.56 Diameter)	AR
20	8M0117029	РУКАВ Y Fitting to Crossover HOSE Y Fitting to Crossover	1
21	8M0087038	РУКАВ Strainer to Distribution Housing HOSE Strainer to Distribution Housing	1
22	8M0107045	ФИТИНГ Y FITTING Y	1
23	8M0098992	РУКАВ Drain Fitting to Y Fitting HOSE Drain Fitting to Y Fitting	1
24	8M0080675	РУКАВ Distribution Housing to Drain Fitting HOSE Distribution Housing to Drain Fitting	1
25	8M0117030	РУКАВ Y Fitting to Circulation Pump HOSE Y Fitting to Circulation Pump	1
26	815504210	ЗАЖИМ Червячная передача CLAMP Worm Gear	4
27	8M0035079	РУКАВ Starboard Block Drain HOSE Starboard Block Drain	1
28	862225	ФИТИНГ FITTING	2
29	627021	УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.070) O-RING (.301 x .070)	2
3	8M0099692	РУКАВ Connects to Upper Poppet Valve HOSE Connects to Upper Poppet Valve	1
30	862603	ФИТИНГ FITTING	2	superseded
31	8M0035110	РУКАВ Exhaust Manifold to Drain Fitting HOSE Exhaust Manifold to Drain Fitting	1	superseded
32	8M0098457	РУКАВ Crossover to Port Manifold HOSE Crossover to Port Manifold	1
33	8M0099107	РУКАВ Port Block Drain HOSE Port Block Drain	1
34	8M0099528	РУКАВ Connects to Poppet Valve; Starboard Bottom HOSE Connects to Poppet Valve; Starboard Bottom	1
35	815504244	ЗАЖИМ Червячная передача Cooler CLAMP Worm Gear Cooler	1
36	8M0118130	РУКАВ Crossover to Manifold HOSE Crossover to Manifold	1
37	8M0107033	ОХЛАДИТЕЛЬ МАСЛА OIL COOLER	1
38	8M2001117	УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.489 x 0.070)   O-RING (.489 X .070)	2
39	8M0105201	КРОНШТЕЙН BRACKET	1
4	815504232	ЗАЖИМ Червячная передача (диаметр 2.50) CLAMP Worm Gear (2.50 Diameter)	1
40	8M0082256	ВИНТ (M6 x 1) SCREW (M6 x 1)	2	superseded
41	8M0098984	РУКАВ Drain Fitting to Drain Fitting HOSE Drain Fitting to Drain Fitting	1
42	8M0097774	РУКАВ Cooler to T Fitting HOSE Cooler to T Fitting	1
43	806608A02	УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue	2	superseded
44	861505	ФИТИНГ FITTING	3
45	8M0097146	РУКАВ Y Fitting to T Fitting HOSE Y Fitting to T Fitting	1
46	863478	ФИТИНГ Тройник FITTING Tee	1
47	8M0098642	РУКАВ T fitting to Fitting Assembly HOSE T fitting to Fitting Assembly	1
48	8M0099611	РУКАВ Drain Fitting to Manifold Drain Fitting HOSE Drain Fitting to Manifold Drain Fitting	1
49	8M0097783	РУКАВ Drain Fitting to Manifold Drain Fitting HOSE Drain Fitting to Manifold Drain Fitting	1
5	8M0095723	РУКАВ Y Fitting to Poppet Valve Cover HOSE Y Fitting to Poppet Valve Cover	1
50	8M0096712	РУКАВ Poppet to Fitting HOSE Poppet to Fitting	1
51	8M2012295	ФИТИНГИ В СБОРЕ FITTING ASSEMBLY	1	superseded
52	73379	ПРОБКА (.250-18)   PLUG (.250-18)	1	superseded
6	8M0095813	РУКАВ Connects to Upper Poppet Valve HOSE Connects to Upper Poppet Valve	1
7	8M0098532	РУКАВ Connects to Lower Poppet Valve HOSE Connects to Lower Poppet Valve	1
8	815504212	ЗАЖИМ Червячная передача CLAMP Worm Gear	AR
9	8M0035110	РУКАВ Manifold to T Fitting HOSE Manifold to T Fitting	1	superseded
