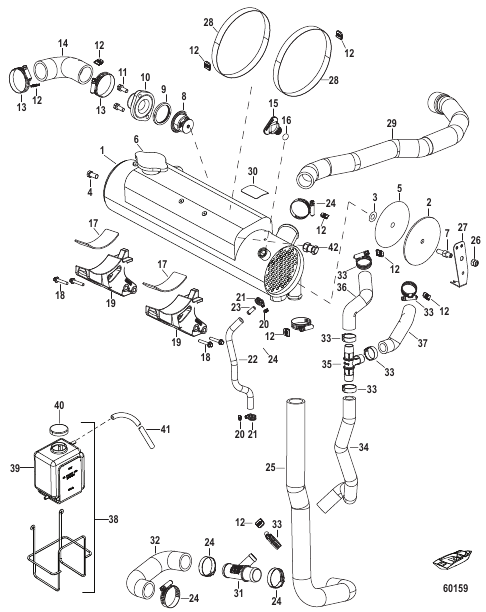

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0114809 |
ТЕПЛООБМЕННИК В СБОРЕ HEAT EXCHANGER ASSEMBLY |
1 | superseded |
| 10 | 807075A1 |
КРЫШКА COVER Thermostat |
1 | |
| 11 | 29198 |
ВИНТ И СТОПОРНАЯ ШАЙБА (0.312-18 x 0.875) SCREW AND LOCKWASHER (.312-18 x .875) |
2 | |
| 12 | 8M0074364 |
ПРОБКА COVER Hose Clamp |
AR | |
| 13 | 815504228 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 | |
| 14 | 8M0088806 |
РУКАВ Thermostat to Exchanger HOSE Thermostat to Exchanger |
1 | |
| 15 | 806608A02 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
1 | superseded |
| 16 | 26802 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.424 x 0.103) O-RING (.424 x .103) |
1 | |
| 17 | 8M0101816 |
НАКЛАДКА Heat Exchanger PAD Heat Exchanger |
2 | |
| 18 | 8M0107994 |
ВИНТ Шестигранный фланец М8 SCREW M8 Hex Flange |
4 | superseded |
| 19 | 8M0104886 |
КРОНШТЕЙН Теплообменник BRACKET Heat Exchanger |
2 | |
| 2 | 8M0097745 |
КОЛПАЧОК END CAP |
2 | |
| 20 | 8M0074363 |
ПРОБКА CAP |
2 | |
| 21 | 815504105 |
ЗАЖИМ Червячная передача (11-18 мм) CLAMP Worm Gear (11-18 mm) |
2 | superseded |
| 22 | 8M0086594 |
РУКАВ Fuel Module to Heat Exchanger HOSE Fuel Module to Heat Exchanger |
1 | |
| 23 | 8M0085864 |
ФИТИНГ FITTING |
1 | |
| 24 | 815504222 |
ЗАЖИМ Червячная передача (диаметр 1.98) CLAMP Worm Gear (1.98 DIameter) |
6 | superseded |
| 25 | 8M0098937 |
РУКАВ Distribution Housing to Heat Exchanger HOSE Distribution Housing to Heat Exchanger |
1 | |
| 26 | 82670912 |
ГАЙКА (0.375-16), нержавеющая сталь NUT (.375-16) Stainless Steel |
1 | |
| 27 | 8M0081037 |
КРОНШТЕЙН Air Actuator BRACKET Air Actuator |
1 | |
| 28 | 8M0106603 |
ЗАЖИМ Heat Exchanger CLAMP Heat Exchanger |
2 | |
| 29 | 8M0090805 |
РУКАВ Exchanger to Poppet Valve HOSE Exchanger to Poppet Valve |
1 | |
| 3 | 8M0039163 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (3/8 x 1/8) O-RING (3/8 x 1/8) |
2 | |
| 30 | 8M0104882 |
НАБОР НАКЛЕЕК Drain, Maintenance, and Specifications DECAL SET Drain, Maintenance, and Specifications |
1 | |
| 31 | 862993 |
ФИТИНГ Y, (2) 1-1/4" Ниппели шлангов / (1) 3/4" Ниппель шланга Drain FITTING Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb Drain |
1 | |
| 32 | 8M0098936 |
РУКАВ Distribution Housing to Drain Fitting HOSE Distribution Housing to Drain Fitting |
1 | |
| 33 | 815504212 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
6 | |
| 34 | 8M0101508 |
РУКАВ Drain Fitting to Y Fitting HOSE Drain Fitting to Y Fitting |
1 | |
| 35 | 863464 |
ФИТИНГ FITTING |
1 | |
| 36 | 8M0101506 |
РУКАВ Exhaust Elbow to T Fitting HOSE Exhaust Elbow to T Fitting |
1 | |
| 37 | 8M0101507 |
РУКАВ Exhaust Elbow to T Fitting HOSE Exhaust Elbow to T Fitting |
1 | |
| 38 | 71587A10 |
КОМПЛЕКТ ДЛЯ ВОССТАНОВЛЕНИЯ Охлаждающая жидкость RECOVERY KIT Coolant |
1 | |
| 39 | 71587A11 |
БАЧОК Пластик BOTTLE Plastic |
1 | |
| 4 | 94247 |
ВИНТ (0.375-16 x 0.750), нержавеющая сталь SCREW (.375-16 x .750) Stainless Steel |
1 | |
| 40 | 72058 |
ПРОБКА CAP Bottle |
1 | |
| 41 | 1983389 |
РУКАВ HOSE |
1 | |
| 5 | 8M0097747 |
УПЛОТНЕНИЕ SEAL |
2 | |
| 6 | 8148791 |
ПРОБКА Pressure CAP Pressure |
1 | |
| 7 | 8M0029252 |
ШПИЛЬКА STUD HEX HD 3/8-16 |
1 | |
| 8 | 864493 |
ТЕРМОСТАТ 77°C (170°F) THERMOSTAT 77°C (170°F) |
1 | |
| 9 | 8071341 |
УПЛОТНЕНИЕ SEAL Thermostat |
1 |
