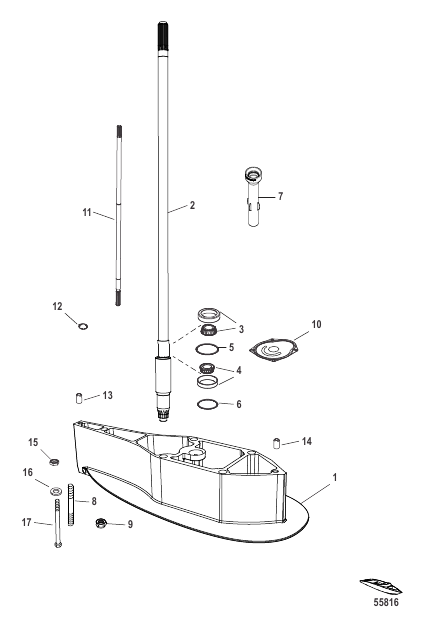

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0105090 |
EXTENSION KIT Driveshaft Housing
|
1 |
|
| 1 |
8M0105088 |
SPACER Driveshaft Housing X-Long
|
1 |
|
| 10 |
866233001 |
FACEPLATE
|
1 |
|
| 11 |
8M0031504 |
SHIFT SHAFT X-Long
|
1 |
superseded
|
| 12 |
8M0030784 |
WASHER Keyed
|
1 |
|
| 13 |
43044 |
PIN Dowel - Without Hole (.375 x .625)
|
1 |
|
| 14 |
8M0084244 |
PIN Dowel, .375 x .620
|
1 |
|
| 15 |
896895 |
NUT (M12)
|
4 |
|
| 16 |
856982 |
WASHER (.500 x .810 x .090) Stainless Steel
|
5 |
|
| 17 |
857137 |
SCREW (M12 x 160)
|
1 |
|
| 2 |
8M0094340 |
DRIVESHAFT X-Long
|
1 |
|
| 3 |
33138A1 |
BEARING ASSEMBLY Taper Roller
|
1 |
|
| 4 |
77420A1 |
BEARING ASSEMBLY Roller
|
1 |
superseded
|
| 5 |
8M0063267 |
SHIM SET
|
1 |
|
| 6 |
8M0063268 |
SHIM SET
|
1 |
|
| 7 |
8M0029215 |
WATER TUBE
|
1 |
|
| 8 |
8M0008047 |
STUD (M12 x 179)
|
4 |
|
| 9 |
87364 |
NUT
|
1 |
|
