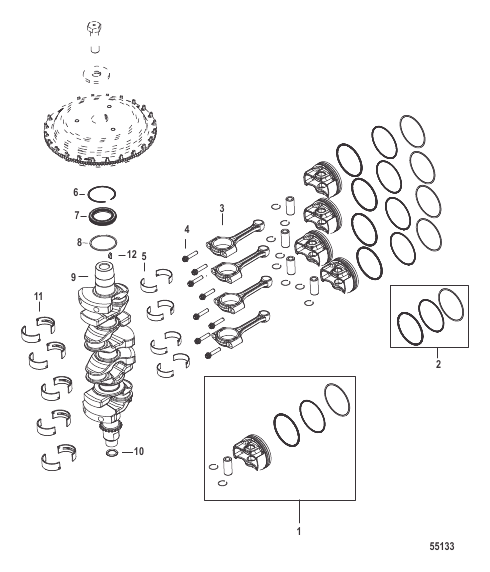

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0100259 |
PISTON ASSEMBLY
|
4 |
|
| 1 |
8M0166300 |
PISTON ASSEMBLY Oversized, .02
|
4 |
|
| 1 |
8M0166301 |
PISTON ASSEMBLY Oversized .03
|
4 |
|
| 10 |
8M0034912 |
O-RING 3.78 X 21.32
|
1 |
|
| 11 |
8M0090779 |
MAIN BEARING Orange
|
AR |
|
| 11 |
8M0090797 |
MAIN BEARING White
|
AR |
|
| 11 |
8M0091378 |
MAIN BEARING Blue
|
AR |
|
| 11 |
8M0091379 |
MAIN BEARING Green
|
AR |
|
| 12 |
91800 |
KEY Woodruff
|
1 |
|
| 2 |
8M0090783 |
RING SET - PISTON
|
4 |
|
| 2 |
8M0166304 |
PISTON RING SET Oversized .02
|
4 |
|
| 2 |
8M0166305 |
PISTON RING SET Oversized .03
|
4 |
|
| 3 |
8M0107011 |
CONNECTING ROD ASSEMBLY
|
4 |
|
| 4 |
8M6002637 |
BOLT Connecting Rod
|
8 |
superseded
|
| 5 |
8M0090780 |
CONNECTING ROD BEARING Orange
|
AR |
|
| 5 |
8M0091376 |
CONNECTING ROD BEARING White
|
AR |
|
| 5 |
8M0091377 |
CONNECTING ROD BEARING Blue
|
AR |
|
| 6 |
8M0057585 |
RING Retaining
|
1 |
|
| 7 |
8M6002225 |
SEAL Top Main Bearing
|
1 |
|
| 8 |
8M0057586 |
SPACER Seal
|
1 |
|
| 9 |
8M0090777 |
CRANKSHAFT ASSEMBLY
|
1 |
|
