| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0098628 |

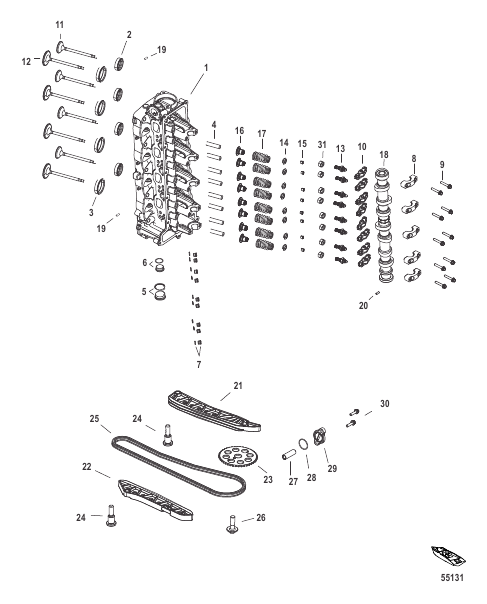

CYLINDER HEAD ASSEMBLY [2B192012] & Below
|
1 |
superseded
|
| - |
8M0121260 |
CYLINDER HEAD ASSEMBLY [2B192013] & Up
|
1 |
superseded
|
| 1 |
8M0091291 |
CYLINDER HEAD ASSEMBLY Bare
|
1 |
|
| 10 |
8M6106000 |
ROLLER FINGER FOLLOWER
|
8 |
|
| 11 |
8M0098633 |
VALVE Exhaust
|
4 |
|
| 12 |
8M0098632 |
VALVE Intake
|
4 |
|
| 13 |
8M0073719 |
STUD Ball End, (M9 X 1)
|
8 |
|
| 14 |
8M0054536 |
RETAINER Valve
|
8 |
|
| 15 |
8M0054537 |
KEY Valve
|
16 |
|
| 16 |
8M6105000 |
SEAL ASSEMBLY Valve Stem
|
8 |
superseded
|
| 17 |
8M6102000 |
SPRING Valve
|
8 |
|
| 18 |
8M0090775 |
CAMSHAFT ASSEMBLY [2B192012] & Below
|
1 |
superseded
|
| 18 |
8M0121261 |
CAMSHAFT ASSEMBLY [2B192013] & Up
|
1 |
superseded
|
| 19 |
8M0084726 |
PIN Dowel
|
2 |
|
| 2 |
8M0056611 |
SEAT Exhaust Valve
|
4 |
|
| 20 |
8M0058695 |
PIN Dowel
|
1 |
|
| 21 |
8M0090800 |
CHAIN BLADE
|
1 |
|
| 22 |
8M0090799 |
CHAIN GUIDE
|
1 |
|
| 23 |
880550 |
SPROCKET
|
1 |
superseded
|
| 24 |
8M0086569 |
SCREW Shoulder (M8 x 1.25)
|
2 |
|
| 25 |
8M0090806 |
CHAIN Cam Drive
|
1 |
superseded
|
| 26 |
8M0021532 |
SCREW (M12 x 40 MM)
|
1 |
superseded
|
| 27 |
8M0057657 |
TENSIONER ASSEMBLY Timing Chain
|
1 |
|
| 28 |
898836 |
O-RING Brown
|
1 |
superseded
|
| 29 |
8M0064752 |
END CAP Cam Tensioner
|
1 |
|
| 3 |
8M0056610 |
SEAT Intake Valve
|
4 |
|
| 30 |
8M0103807 |
SCREW (M6 x 25 mm) Stainless Steel
|
2 |
|
| 31 |
8M0072563 |
NUT HEX
|
8 |
|
| 4 |
8M0054533 |
GUIDE Valve
|
8 |
|
| 5 |
8M0047997 |
PLUG (30 MM)
|
1 |
superseded
|
| 6 |
8M0047996 |
PLUG (24 MM)
|
2 |
superseded
|
| 7 |
8M0087446 |
PLUG (10 MM)
|
9 |
|
| 8 |
NSS |
NOT SOLD SEPARATE
|
4 |
|
| 9 |
892454035 |
BOLT (M6 x 36)
|
10 |
superseded
|
