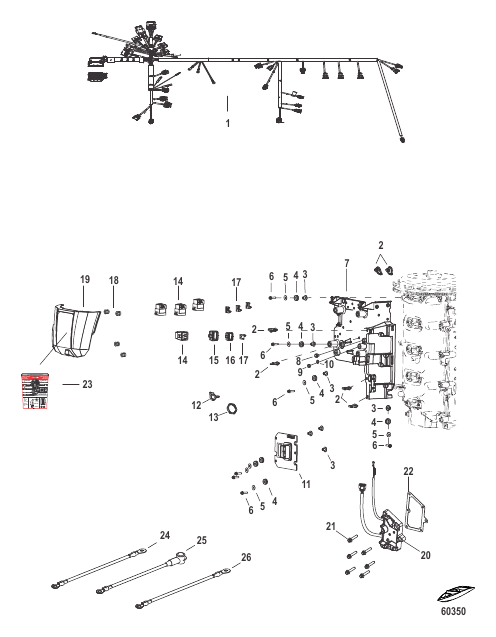

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0088060 |
WIRING HARNESS - MAIN
|
1 |
|
| 10 |
26993 |
LOCKWASHER (.312)
|
1 |
superseded
|
| 11 |
8M0114284 |
ECM 115HP Pro XS 4S
|
1 |
superseded
|
| 12 |
858954 |
CLIP (.625)
|
1 |
|
| 13 |
889664 |
NUT (1.500-18) Black Nylon
|
1 |
|
| 14 |
882751 |
RELAY
|
4 |
superseded
|
| 15 |
8M0047885 |
FUSE COVER With Spares
|
1 |
|
| 16 |
858754 |
COVER Fuse
|
1 |
|
| 17 |
8M6001733 |
CLIP - RELAY, DOUBLE NAIL
|
4 |
|
| 18 |
821555001 |
GROMMET
|
4 |
superseded
|
| 19 |
8M0097173 |
COVER Electrical Plate
|
1 |
superseded
|
| 2 |
899145 |
CLIP Tie Strap
|
6 |
|
| 20 |
8M0088351 |
VOLTAGE REGULATOR
|
1 |
superseded
|
| 21 |
8M0103808 |
SCREW (M6 x 30 mm) Stainless Steel
|
6 |
|
| 22 |
8M0072790 |
GASKET Voltage Regulator
|
1 |
|
| 23 |
8M0107394 |
DECAL Maintenance Schedule
|
1 |
|
| 24 |
8M2100378 |
HARNESS Starter
|
1 |
|
| 25 |
88439A35 |
CABLE ASSEMBLY Battery - Positive
|
1 |
|
| 26 |
88439A26 |
CABLE ASSEMBLY Battery - Negative
|
1 |
|
| 3 |
856954 |
BUSHING
|
7 |
|
| 4 |
834985 |
GROMMET
|
7 |
superseded
|
| 5 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
7 |
|
| 6 |
8M0103807 |
SCREW (M6 x 25 mm) Stainless Steel
|
7 |
|
| 7 |
8M0092349 |
PLATE - ELECTRICAL
|
1 |
|
| 8 |
40011145 |
SCREW (M8 x 10) Stainless Steel
|
1 |
|
| 9 |
400213 |
NUT (M8) Stainless Steel
|
1 |
|
