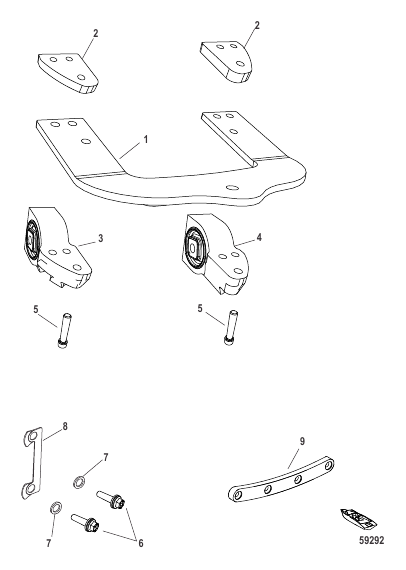

Tie Bar Kit Rear Mount (Factory Installed)
Parts (10)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Factory Installed System by Mercury Racing NOT SOLD SEPARATE Factory Installed System by Mercury Racing |
1 | |
| 1 | 8M0110314 |
УСТАНОВОЧНАЯ ПЛАСТИНА MOUNTING PLATE |
1 | |
| 2 | 8M0110315 |
ПЛАСТИНА Retainer PLATE Retainer |
2 | |
| 3 | 8M0110312 |
ОПОРА В СБОРЕ Сзади по левому борту MOUNT ASSEMBLY Rear Port |
1 | |
| 4 | 8M0110313 |
ОПОРА В СБОРЕ Сзади по правому борту MOUNT ASSEMBLY Rear Starboard |
1 | |
| 5 | 8M2003719 |
ВИНТ (M12 x 1.75 x 60) SCREW (M12X1.75X60) |
6 | |
| 6 | 8M0108770 |
ВИНТ (M8 x 1.25 x 30) 4 screws per application Note, screw comes in a pack of 5 pcs. SCREW (M8X1.25X30) 4 screws per application Note, screw comes in a pack of 5 pcs. |
1 | |
| 7 | 895853 |
ШАЙБА WASHER |
4 | |
| 8 | 893409 |
ФИКСАТОР RETAINER |
2 | superseded |
| 9 | 8M0097026 |
ИЗНОСОСТОЙКАЯ НАКЛАДКА WEAR PAD |
2 |
