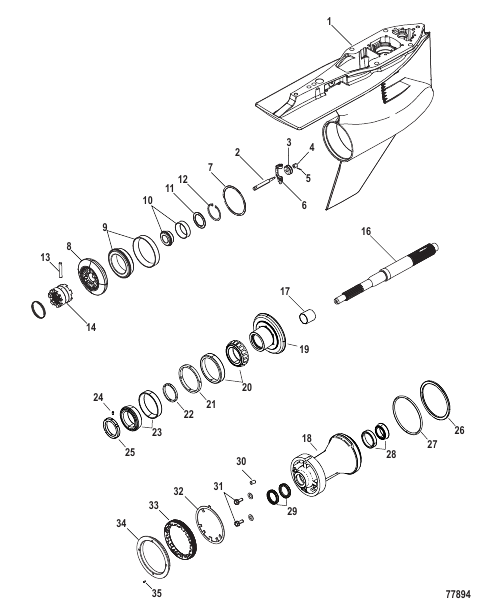

Gear Housing 1.75:1, Prop Shaft Counter Rotation, 5.44 Torpedo, Design-II, Tapered Forward Bearing
Parts (44)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0215263 |
GEAR HOUSING ASSEMBLY Complete, Silver (Long) (1.75:1) GEAR HOUSING ASSEMBLY Complete, Silver (Long) (1.75:1) |
1 | superseded |
| - | 8M0215264 |
GEAR HOUSING ASSEMBLY Complete, Silver (Counter Rotation X-Long)(1.75:1) (X-Long) (1.75:1) GEAR HOUSING ASSEMBLY Complete, Silver (Counter Rotation X-Long)(1.75:1) (X-Long) (1.75:1) |
1 | superseded |
| - | 8M0215265 |
GEAR HOUSING ASSEMBLY Complete, Silver (XX-Long) (1.75:1) GEAR HOUSING ASSEMBLY Complete, Silver (XX-Long) (1.75:1) |
1 | superseded |
| - | 8M0215259 |
GEAR HOUSING ASSEMBLY Complete, Silver (Camber Long)(1.75:1) GEAR HOUSING ASSEMBLY Complete, Silver (Camber Long)(1.75:1) |
1 | superseded |
| - | 8M0215260 |
GEAR HOUSING ASSEMBLY Complete, Silver (Camber X-Long)(1.75:1) GEAR HOUSING ASSEMBLY Complete, Silver (Camber X-Long)(1.75:1) |
1 | superseded |
| - | 8M0215261 |
GEAR HOUSING ASSEMBLY Complete, Silver (Camber XX-Long)(1.75:1) GEAR HOUSING ASSEMBLY Complete, Silver (Camber XX-Long)(1.75:1) |
1 | superseded |
| 1 | 8M0117251 |
GEAR HOUSING ASSEMBLY Basic, Silver GEAR HOUSING ASSEMBLY Basic, Silver |
1 | superseded |
| 1 | 8M0117282 |
GEAR HOUSING ASSEMBLY Basic, Silver Camber GEAR HOUSING ASSEMBLY Basic, Silver Camber |
1 | superseded |
| 10 | 884325T01 |
БЛОК ПОДШИПНИКА Ролик – конический BEARING ASSEMBLY Roller-Tappered |
1 | superseded |
| 11 | 8M0053823 |
УПОРНАЯ ШАЙБА WASHER Thrust, (1.50 ID x 2.046 OD) |
1 | |
| 12 | 8M0051043 |
СТОПОРНОЕ КОЛЬЦО RING Retaining |
1 | |
| 13 | 8M0045493 |
ШТИФТ PIN Cross |
1 | |
| 14 | 8M0053113 |
МУФТА СЦЕПЛЕНИЯ [2B549490] & Below CLUTCH [2B549490] & Below |
1 | |
| 14 | 8M0142871 |
МУФТА СЦЕПЛЕНИЯ Скользящий, 6-кулачковый [2B549491] & Up CLUTCH Sliding 6 Jaw [2B549491] & Up |
1 | |
| 15 | 8M0050575 |
ПРУЖИНА SPRING Cross |
1 | |
| 16 | 8M0103300 |
ВАЛ ГРЕБНОГО ВИНТА 1.25" 1.75:1 Ratio PROPELLER SHAFT 1.25 Inch 1.75:1 Ratio |
1 | superseded |
| 17 | 8M0064306 |
ПРОСТАВКА SPACER Thrust |
A/R | |
| 18 | 8M0204764 |
CARRIER ASSEMBLY Bearing CARRIER ASSEMBLY Bearing |
1 | |
| 19 | 8M0146659 |
НАБОР ШЕСТЕРЕН Передняя ведущая шестерня 12/21 GEAR SET Forward Gear Pinion 12/21 |
1 | |
| 2 | 8M0053114 |
ЗОЛОТНИК В СБОРЕ SPOOL ASSEMBLY |
1 | superseded |
| 20 | 8M0199861 |
BEARING Roller Taper (Cup/Cone) BEARING Roller Taper (Cup/Cone) |
1 | |
| 21 | 8M0142875 |
ПРОСТАВКА SPACER |
1 | |
| 22 | 8M0199863 |
SPACER SPACER |
1 | |
| 23 | 8M0199864 |
BEARING Roller Taper (Cup/Cone) BEARING Roller Taper (Cup/Cone) |
1 | |
| 24 | 8M0066130 |
УСТАНОВОЧНЫЙ ВИНТ С КОРОТКИМ ЦИЛИНДРИЧЕСКИМ КОНЦОМ SCREW- HALF DOG POINT SET |
1 | |
| 25 | 8M0064178 |
КОНТРГАЙКА LOCK NUT |
1 | |
| 26 | 8M0161546 |
THRUST RING THRUST RING |
1 | |
| 27 | 8M0000190 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (4.475 x 0.210) O-RING (4.475 x .210) |
1 | |
| 28 | 8M0148319 |
ПОДШИПНИК Стакан/конус BEARING Roller Taper Cup/Cone |
1 | |
| 29 | 888483 |
УПЛОТНЕНИЕ Масло SEAL Oil |
2 | superseded |
| 3 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SPOOL NOT SOLD SEPARATE SPOOL |
1 | |
| 30 | 8M0109164 |
ШТИФТ PIN 3/8 Dia x .625 LG |
1 | |
| 31 | 8M0071653 |
ВИНТ Специальный SCREW Special, .375-16 UNC |
1 | |
| 32 | 8M0108527 |
ШАЙБА Транцевая плита WASHER Tab |
1 | |
| 33 | 8M0162798 |
RETAINER Bearing Carrier RETAINER Bearing Carrier |
1 | |
| 34 | 8M0180306 |
COVER Torpedo COVER Torpedo |
1 | |
| 34 | 8M0180308 |
COVER KIT COVER KIT |
1 | |
| 35 | 8M0036819 |
УСТАНОВОЧНЫЙ ВИНТ (10-32) SET SCREW (10-32) |
1 | |
| 4 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SLEEVE NOT SOLD SEPARATE SLEEVE |
1 | |
| 5 | 469501 |
ШПЛИНТ COTTER PIN |
1 | |
| 6 | 8M0046215 |
КОЛЕНЧАТЫЙ ВАЛ, рычаг переключения передач Палец шарнира 1/4 CRANK, Shifter 1/4 Pivot Pin |
1 | superseded |
| 7 | 8M0063270 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 8 | 8M0053121 |
КОМПЛЕКТ ШЕСТЕРЕН Reverse 1.75:1 Ratio GEAR ASSEMBLY Reverse Reverse 1.75:1 Ratio |
1 | |
| 9 | 884323T01 |
БЛОК ПОДШИПНИКА Ролик BEARING ASSEMBLY Roller |
1 | superseded |
