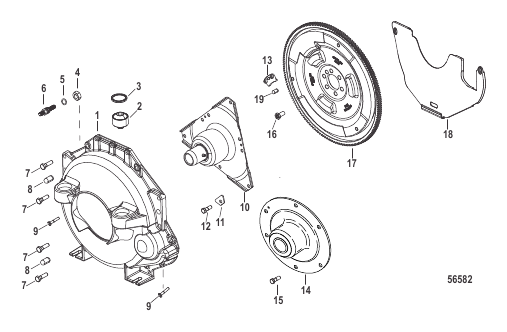

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0095439 |
HOUSING ASSEMBLY Flywheel
|
1 |
|
| 10 |
18643A5 |
COUPLING ASSEMBLY Alpha
|
1 |
|
| 11 |
13510 |
WASHER Alpha
|
3 |
|
| 12 |
14883 |
SCREW (.375-16 x 1.12) Alpha
|
3 |
superseded
|
| 13 |
18644 |
BUMPER Rubber Alpha
|
3 |
|
| 14 |
861523A9 |
COUPLER ASSEMBLY Engine - Short Aluminum Hub Bravo
|
1 |
superseded
|
| 15 |
863480 |
SCREW (.375-16 x 1.125) Bravo
|
6 |
|
| 16 |
8M0076509 |
SCREW (.4375 x 20)
|
6 |
superseded
|
| 17 |
8M0095946 |
FLYWHEEL ASSEMBLY Alpha
|
1 |
superseded
|
| 17 |
8M0109480 |
FLYWHEEL ASSEMBLY Alpha and Bravo
|
1 |
superseded
|
| 18 |
807260A2 |
COVER KIT Flywheel
|
1 |
|
| 19 |
NSS |
NOT SOLD SEPARATE PIN
|
1 |
|
| 2 |
8M0032688 |
MOUNT Rubber
|
2 |
superseded
|
| 3 |
8M0087147 |
SPACER
|
2 |
|
| 4 |
40125100 |
NUT (M10)
|
2 |
|
| 5 |
400248 |
LOCKWASHER (M10)
|
2 |
|
| 6 |
861577 |
STUD Double Ended Metric (M10)
|
2 |
|
| 7 |
40001197 |
SCREW (M10 x 35)
|
4 |
|
| 8 |
8M0092110 |
PIN Dowel
|
2 |
|
| 9 |
76596 |
SCREW (.250-20 x 1.250)
|
2 |
|
| NS |
74036 |
FITTING Grease Alpha
|
1 |
superseded
|
