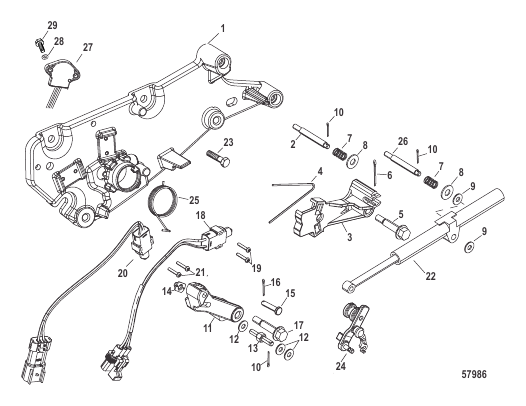

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0097162 |
BRACKET KIT Shift
|
1 |
|
| 10 |
210711 |
COTTER PIN
|
3 |
|
| 11 |
8M0078904 |
LEVER ASSEMBLY Shift
|
1 |
|
| 12 |
35462 |
WASHER (.2656 x .625 x .0625) Stainless Steel
|
3 |
|
| 13 |
865393A02 |
STUD KIT (.250-28 x 1.90) With Cotter Pin
|
1 |
|
| 14 |
63341 |
TEE NUT
|
1 |
|
| 15 |
814001 |
PIN Clevis
|
1 |
|
| 16 |
210711 |
COTTER PIN
|
1 |
|
| 17 |
865148 |
SHOULDER SCREW (.312-18 x 1.843) Stainless Steel
|
1 |
superseded
|
| 18 |
8M0095575 |
SWITCH ASSEMBLY Shift Anticipate
|
1 |
|
| 19 |
865147 |
SCREW (#6-32 x .750) Stainless Steel
|
2 |
superseded
|
| 2 |
865149A02 |
STUD With Cotter Pin
|
1 |
|
| 20 |
8M0095577 |
SWITCH ASSEMBLY Neutral
|
1 |
|
| 21 |
865147 |
SCREW (#6-32 x .750) Stainless Steel
|
2 |
superseded
|
| 22 |
813995A1 |
GUIDE ASSEMBLY Spring
|
1 |
|
| 23 |
657461 |
SCREW AND LOCKWASHER (.250-20 x .625)
|
3 |
|
| 24 |
8M0101621 |
THROTTLE ARM ASSEMBLY
|
1 |
|
| 25 |
8M0072630 |
SPRING
|
1 |
|
| 26 |
865154A02 |
STUD KIT (.250-20/.250-28 x 2.120) (Included in Bracket Kit)
|
1 |
|
| 27 |
8M0095576 |
HARNESS ASSEMBLY Demand Sensor
|
1 |
|
| 28 |
89302 |
WASHER (.203 x .406 x .040)
|
2 |
|
| 29 |
852368 |
SCREW (#10-24 x .750)
|
2 |
|
| 3 |
865433A02 |
LEVER ASSEMBLY Actuator, With Cotter Pin
|
1 |
|
| 4 |
864907T |
SPRING
|
1 |
|
| 5 |
865148 |
SHOULDER SCREW (.312-18 x 1.843) Stainless Steel
|
1 |
superseded
|
| 6 |
328571 |
COTTER PIN
|
2 |
superseded
|
| 7 |
98880 |
SPRING
|
2 |
superseded
|
| 8 |
56720 |
WASHER (.330 x .750 x .060) Stainless Steel
|
2 |
|
| 9 |
35462 |
WASHER (.2656 x .625 x .0625) Stainless Steel
|
2 |
|
