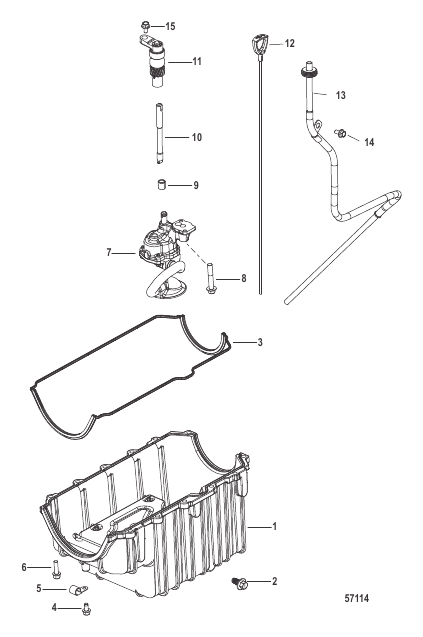

Oil Pan and Pump
Parts (16)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0095517 |
ЛОНГ-БЛОК В СБОРЕ LONGBLOCK ASSEMBLY |
1 | superseded |
| 1 | 8M0095948 |
ПОДДОН Масло PAN Oil |
1 | |
| 10 | 8M6001892 |
ВАЛ SHAFT |
1 | superseded |
| 11 | 8M0079424 |
ПРИВОД Масляный насос DRIVER Oil Pump |
1 | superseded |
| 12 | 8M0095331 |
ЩУП DIPSTICK |
1 | superseded |
| 13 | 8M0095135 |
ТРУБКА ИЗМЕРИТЕЛЬНОГО ЩУПА DIPSTICK TUBE |
1 | |
| 14 | 8M0106012 |
ВИНТ (M6 x 1-12) SCREW (M6 x 1-12) |
1 | |
| 15 | 8M0090499 |
ВИНТ (M8 x 23.5) SCREW (M8 x 23.5) |
1 | |
| 2 | 8M0081260 |
ВИНТ M12 x 1.75 Oil Drain SCREW M12 x 1.75 Oil Drain |
1 | |
| 3 | 8M0082410 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 4 | 8M0087842 |
ВИНТ M8 SCREW M8 |
1 | superseded |
| 5 | 814634 |
ЗАЖИМ CLAMP |
1 | |
| 6 | 8M0082282 |
ВИНТ (M8 x 1.25) SCREW (M8 x 1.25) |
12 | |
| 7 | 8M0095947 |
НАСОС В СБОРЕ Масло PUMP ASSEMBLY Oil |
1 | superseded |
| 8 | 8M0079605 |
ВИНТ (M10 x 1.5 x 59) SCREW (M10 x 1.5 x 59) |
1 | |
| 9 | 8M6001893 |
ФИКСАТОР RETAINER |
1 |
