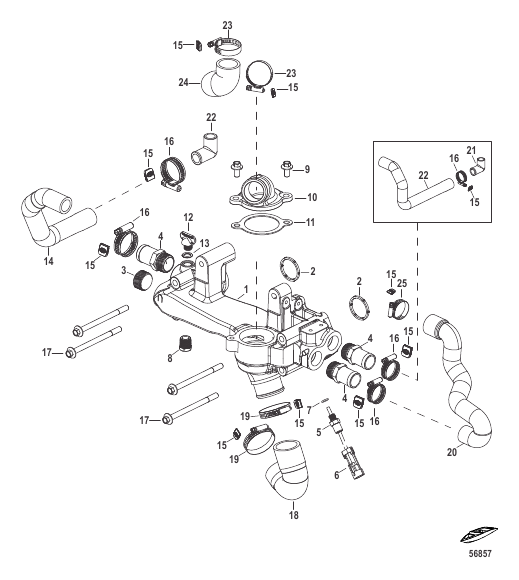

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0099058 |
CROSSOVER
|
1 |
superseded
|
| 10 |
8M0078403 |
CAP
|
1 |
|
| 11 |
8M0079167 |
GASKET
|
1 |
|
| 12 |
806608A02 |
PLUG ASSEMBLY (.500-13) Blue
|
1 |
superseded
|
| 13 |
26802 |
O-RING (.424 x .103)
|
1 |
|
| 14 |
8M0073900 |
HOSE Crossover to Starboard Manifold
|
1 |
|
| 15 |
8M0074364 |
COVER Hose Clamp
|
AR |
|
| 16 |
815504216 |
CLAMP Worm Gear (1.56 Diameter)
|
5 |
|
| 17 |
40095110 |
SCREW (M8 x 110)
|
4 |
|
| 18 |
8M2023903 |
HOSE Crossover to Circulating Pump
|
1 |
|
| 19 |
815504232 |
CLAMP Worm Gear (2.50 Diameter)
|
2 |
|
| 2 |
8M0081836 |
SEAL
|
2 |
|
| 20 |
8M0088736 |
HOSE Crossover to Thermostat Housing
|
1 |
|
| 21 |
36305T |
ELBOW
|
2 |
|
| 22 |
8M0094253 |
HOSE Crossover to Port Manifold
|
1 |
|
| 23 |
815504224 |
CLAMP Worm Gear
|
2 |
|
| 24 |
8M0078831 |
HOSE Exchanger to Crossover
|
1 |
|
| 25 |
815504222 |
CLAMP Worm Gear (1.98 DIameter)
|
1 |
superseded
|
| 3 |
428611 |
FITTING Pipe - Brass (.750-14)
|
1 |
superseded
|
| 4 |
866725 |
FITTING Straight (.750-14)
|
3 |
|
| 5 |
885342002 |
SENSOR ASSEMBLY
|
1 |
superseded
|
| 6 |
830796A1 |
CONNECTOR ASSEMBLY
|
1 |
|
| 7 |
896699 |
O-RING (1.78 mm x .08 mm)
|
1 |
|
| 8 |
32803 |
PLUG Pipe (.375-18) Brass
|
1 |
superseded
|
| 9 |
4009516 |
SCREW (M8 x 16)
|
2 |
superseded
|
