Parts Catalog

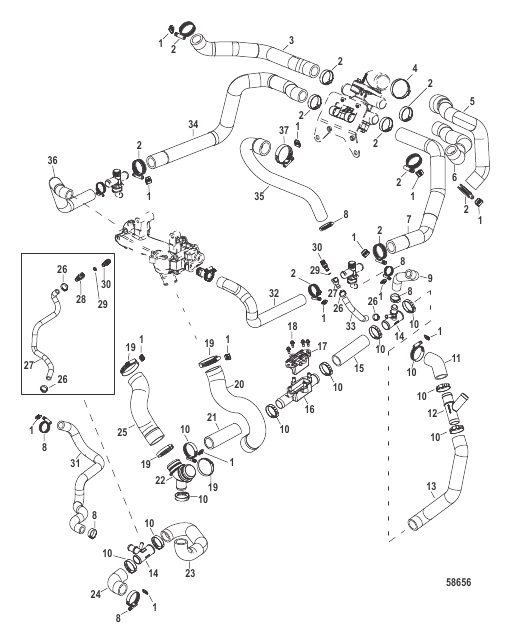

Raw Water Cooling Cooling Hoses

Parts (37)

#	Part Number	Description	Qty	Status
1	8M0074364	ПРОБКА COVER Hose Clamp	AR
10	815504222	ЗАЖИМ Червячная передача (диаметр 1.98) CLAMP Worm Gear (1.98 DIameter)	12	superseded
11	8M0082286	РУКАВ Steering Cooler to Y Fitting HOSE Steering Cooler to Y Fitting	1	superseded
12	8M2003728	Y-ОБРАЗНЫЙ ФИТИНГ Y-FITTING	1
13	8M0086924	РУКАВ Y Fitting to Drain Fitting HOSE Y Fitting to Drain Fitting	1
14	8M0088893	ФИТИНГ Drain FITTING Drain	2
15	8M0087261	РУКАВ Drain Fitting to Strainer HOSE Drain Fitting to Strainer	1
16	8M0095457	СЕТЧАТЫЙ ФИЛЬТР В СБОРЕ STRAINER ASSEMBLY	1
17	8M0097249	КРЫШКА COVER	1
18	8M0086279	ВИНТ (M6) SCREW (M6)	4
19	815504232	ЗАЖИМ Червячная передача (диаметр 2.50) CLAMP Worm Gear (2.50 Diameter)	4
2	815504216	ЗАЖИМ Червячная передача (диаметр 1.56) CLAMP Worm Gear (1.56 Diameter)	9
20	8M2023913	РУКАВ Y Fitting to Crossover HOSE Y Fitting to Crossover	1
21	8M0087038	РУКАВ Strainer to Distribution Housing HOSE Strainer to Distribution Housing	1
22	8M0107045	ФИТИНГ Y FITTING Y	1
23	8M2023909	РУКАВ Drain Fitting to Y Fitting HOSE Drain Fitting to Y Fitting	1
24	8M0080675	РУКАВ Distribution Housing to Drain Fitting HOSE Distribution Housing to Drain Fitting	1
25	8M2023914	РУКАВ Y Fitting to Circ. Pump HOSE Y Fitting to Circ. Pump	1	superseded
26	815504210	ЗАЖИМ Червячная передача CLAMP Worm Gear	4
27	8M0080748	РУКАВ Starboard Drain Fitting HOSE Starboard Drain Fitting	1
28	862225	ФИТИНГ FITTING	2
29	627021	УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.070) O-RING (.301 x .070)	2
3	8M2023900	РУКАВ Connects to Upper Poppet Valve HOSE Connects to Upper Poppet Valve	1
30	862603	ФИТИНГ FITTING	2	superseded
31	8M0090099	РУКАВ Exhaust Manifold to Drain Fitting HOSE Exhaust Manifold to Drain Fitting	1
32	8M0088868	РУКАВ Crossover to Port Manifold HOSE Crossover to Port Manifold	1
33	8M0086911	РУКАВ Drain Fitting HOSE Drain Fitting	1
34	8M2023901	РУКАВ Connects to Poppet Valve; Stbd. Bottom HOSE Connects to Poppet Valve; Stbd. Bottom	1
35	807661	РУКАВ Transom to Cooler Alpha Only HOSE Transom to Cooler Alpha Only	1
36	8M0078393	РУКАВ HOSE	1	superseded
37	815504220	ЗАЖИМ Червячная передача CLAMP Worm Gear	1
4	815504226	ЗАЖИМ Червячная передача CLAMP Worm Gear	1	superseded
5	8M2023916	РУКАВ Y Fitting to Poppet Valve Cover HOSE Y Fitting to Poppet Valve Cover	1
6	8M0078725	РУКАВ Connects to Upper Poppet Valve HOSE Connects to Upper Poppet Valve	1	superseded
7	8M0078557	РУКАВ Connects to Lower Poppet Valve HOSE Connects to Lower Poppet Valve	1
8	815504212	ЗАЖИМ Червячная передача CLAMP Worm Gear	5
9	8M0086961	РУКАВ Port Drain to Drain Fitting HOSE Port Drain to Drain Fitting	1
