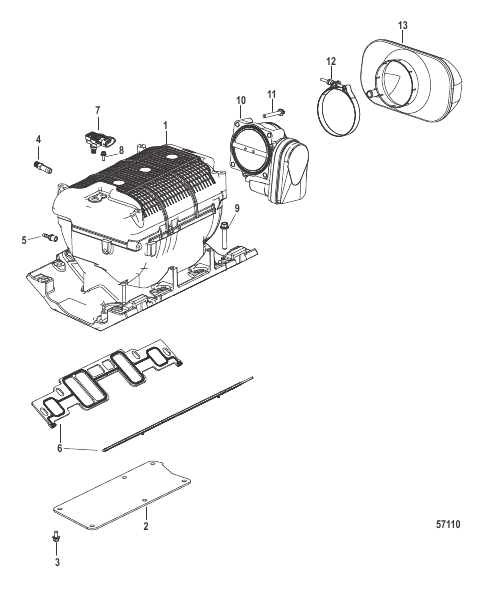

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0096924 |
MANIFOLD ASSEMBLY Intake
|
1 |
superseded
|
| 10 |
8M0046460 |
THROTTLE BODY ASSEMBLY
|
1 |
|
| 11 |
88552550 |
SCREW (M6 x 50 MM) Stainless Steel
|
4 |
|
| 12 |
863393 |
CLAMP Design I
|
1 |
|
| 12 |
8M0103048 |
CLAMP Design II
|
1 |
|
| 13 |
8M0045238 |
FLAME ARRESTOR Metal Flange Design I
|
1 |
superseded
|
| 13 |
8M0109788 |
FLAME ARRESTOR KIT Rubber Flange Design II
|
1 |
superseded
|
| 2 |
NSS |
NOT SOLD SEPARATE Shield
|
1 |
|
| 3 |
88552512 |
SCREW (M6 x 12 MM) Stainless Steel
|
6 |
superseded
|
| 4 |
897722 |
FITTING Straight Crankcase Vent Valve (PCV)
|
1 |
|
| 5 |
859092 |
FITTING To Fuel Regulator
|
1 |
|
| 6 |
8M0078533 |
GASKET
|
2 |
superseded
|
| 7 |
8M6002029 |
SENSOR Intake Manifold Temperature/Pressure Temperature / Manifold Pressure
|
1 |
|
| 8 |
88552516 |
SCREW (M6 x 16 MM) Stainless Steel
|
1 |
superseded
|
| 9 |
88552645 |
SCREW (M8X45)
|
8 |
|
