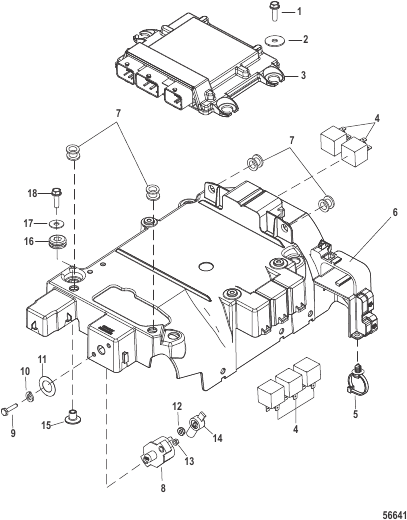

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
897445501 |
SCREW (M6 x 20 MM)
|
3 |
|
| 10 |
72554 |
DECAL Circuit Breaker
|
1 |
|
| 11 |
68219 |
NUT (#10-32) Stainless Steel
|
2 |
|
| 12 |
826709106 |
NUT (#10-32) Stainless Steel
|
2 |
superseded
|
| 13 |
89919 |
BOOT Insulator - Black
|
2 |
|
| 14 |
856954 |
BUSHING
|
4 |
|
| 15 |
834985 |
GROMMET
|
4 |
superseded
|
| 16 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
4 |
|
| 17 |
88552525 |
SCREW (M6 x 25 MM) Stainless Steel
|
4 |
superseded
|
| 2 |
35280 |
WASHER (.255 x .620 x .030) Stainless Steel
|
3 |
|
| 3 |
8M0097176 |
PCM Propulsion Control Module 250 HP A EC (DTM)
|
1 |
|
| 3 |
8M0097177 |
PCM Propulsion Control Module 250 HP A Non-EC (DTM)
|
1 |
|
| 3 |
8M0097178 |
PCM Propulsion Control Module 250 HP B Non-EC (DTS)
|
1 |
|
| 3 |
8M0097179 |
PCM Propulsion Control Module 250 HP B EC (DTS)
|
1 |
|
| 3 |
8M0097180 |
PCM Propulsion Control Module 250 HP B EC (DTM)
|
1 |
|
| 3 |
8M0097181 |
PCM Propulsion Control Module 250 HP B Non-EC (DTM)
|
1 |
|
| 3 |
8M0104328 |
PCM Propulsion Control Module 200 HP A EC (DTM)
|
1 |
|
| 3 |
8M0104329 |
PCM Propulsion Control Module 200 HP A Non-EC (DTM)
|
1 |
|
| 4 |
8M0057697 |
CUBE RELAY
|
5 |
superseded
|
| 5 |
899145 |
CLIP Tie Strap
|
1 |
|
| 6 |
8M0095476 |
BRACKET Electrical
|
1 |
|
| 7 |
8M0096302 |
GROMMET
|
4 |
|
| 8 |
11178A01 |
BREAKER Circuit - 50 Ampere
|
1 |
|
| 9 |
45862 |
SCREW (#10-32 x .875)
|
2 |
|
| NS |
816311 |
TIE STRAP (8.00 Inches)
|
10 |
superseded
|
