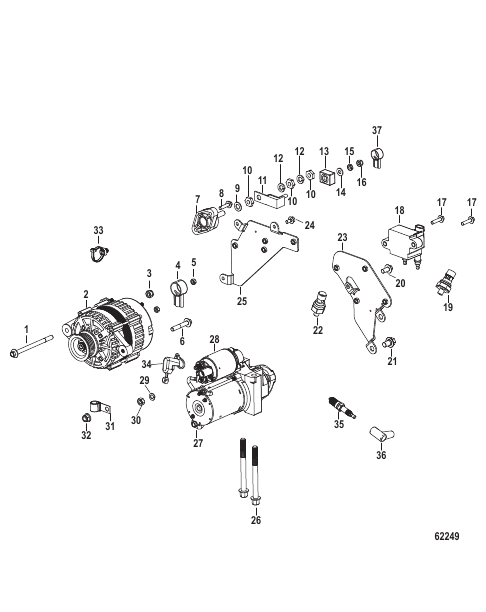

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
40095110 |
SCREW (M8 x 110)
|
1 |
|
| 10 |
8M0089455 |
NUT
|
3 |
superseded
|
| 11 |
8M6002021 |
FUSE HOLDER
|
2 |
|
| 12 |
58643 |
LOCKWASHER (.375)
|
2 |
|
| 13 |
8M6001960 |
FUSE 90 Amp - Purple
|
1 |
|
| 14 |
35044 |
WASHER (.281 x .625 x .065) Stainless Steel
|
1 |
|
| 15 |
94330 |
NUT (.250-20) Brass
|
1 |
|
| 16 |
8267118 |
NUT (.250-20)
|
1 |
|
| 17 |
4010625 |
SCREW (M6 x 25) Stainless Steel
|
6 |
superseded
|
| 18 |
8M0044991 |
IGNITION COIL Ignition Dual Output
|
3 |
|
| 19 |
8M6000623 |
SENSOR Water Pressure Water Pressure (50 PSI)
|
1 |
superseded
|
| 2 |
8M0095472 |
ALTERNATOR ASSEMBLY
|
1 |
|
| 20 |
4010716 |
SCREW (M8 x 16)
|
1 |
|
| 21 |
8M0083541 |
SCREW (M10 x 16)
|
2 |
|
| 22 |
8M6000634 |
PRESSURE SENSOR Oil Pressure
|
1 |
superseded
|
| 23 |
8M0095474 |
BRACKET Coil
|
1 |
|
| 24 |
8M0106012 |
SCREW (M6 x 1-12)
|
3 |
|
| 25 |
8M0095473 |
BRACKET Coil
|
1 |
|
| 26 |
861788 |
SCREW (M10 x 1.5)
|
2 |
|
| 27 |
8M0095471 |
STARTER ASSEMBLY
|
1 |
|
| 28 |
8M6003698 |
SOLENOID
|
1 |
|
| 29 |
26993 |
LOCKWASHER (.312)
|
1 |
superseded
|
| 3 |
401368 |
NUT (M8) Stainless Steel
|
1 |
|
| 30 |
400213 |
NUT (M8) Stainless Steel
|
1 |
|
| 31 |
47483 |
J CLIP
|
1 |
|
| 32 |
826365 |
NUT (M8)
|
1 |
|
| 33 |
899145 |
CLIP Tie Strap
|
1 |
|
| 34 |
8M2023920 |
BOOT
|
1 |
|
| 35 |
8M0095454 |
SPARK PLUG
|
6 |
|
| 36 |
8M0095475 |
CABLE KIT Ignition
|
1 |
|
| 37 |
8M0076059 |
INSULATOR Hot Stud
|
1 |
|
| 4 |
8M0084147 |
INSULATOR
|
1 |
superseded
|
| 5 |
400212 |
NUT (M6) Stainless Steel
|
2 |
|
| 6 |
40011153 |
SCREW (M8 x 45) Stainless Steel
|
1 |
|
| 7 |
8M0077643 |
HOT STUD ASSEMBLY
|
1 |
|
| 8 |
82130025 |
SCREW (M6 x 25)
|
2 |
|
| 9 |
34931 |
WASHER (.406 x .734 x .063) Stainless Steel
|
1 |
|
| NS |
8M0095579 |
HARNESS ASSEMBLY Transom
|
1 |
|
| NS |
8M0095979 |
HARNESS Power
|
1 |
|
| NS |
8M0095980 |
HARNESS Ground
|
1 |
|
