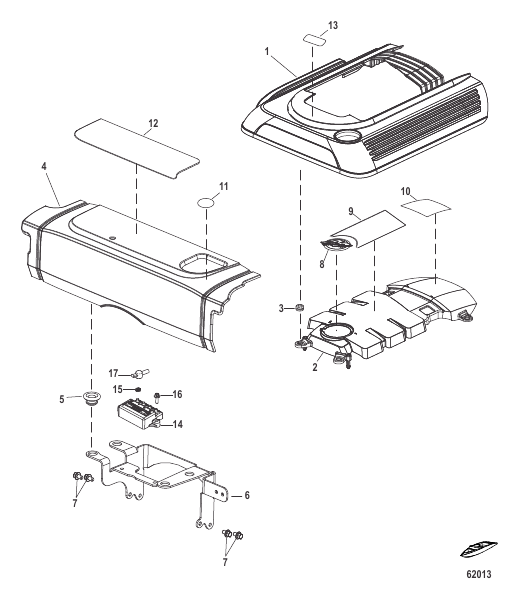

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0100517 |
MERCATHODE CONTROLLER MerCathode RWC
|
1 |
|
| 1 |
8M0095484 |
COVER Engine
|
1 |
|
| 10 |
8M0085343 |
DECAL Rear Center Cover
|
1 |
|
| 10 |
8M0085344 |
DECAL Rear Center Cover Seacore
|
1 |
superseded
|
| 11 |
NSS |
NOT SOLD SEPARATE DECAL, No Step
|
1 |
|
| 12 |
8M0085355 |
DECAL Specifications Alpha 250 RWC
|
1 |
superseded
|
| 12 |
8M0085356 |
DECAL Specifications Bravo 250 RWC
|
1 |
superseded
|
| 12 |
8M0085370 |
DECAL Specifications 200 RWC
|
1 |
superseded
|
| 13 |
8M0085340 |
DECAL 250 Hp
|
1 |
superseded
|
| 13 |
8M0085341 |
DECAL Chrome
|
1 |
|
| 14 |
NSS |
NOT SOLD SEPARATE Controller RWC
|
1 |
|
| 15 |
68219 |
NUT (#10-32) Stainless Steel RWC
|
4 |
|
| 16 |
4010516 |
SCREW (M5 x 16) Stainless Steel RWC
|
2 |
|
| 17 |
86606 |
BOOT Insulator - Black RWC
|
4 |
|
| 2 |
8M0095483 |
COVER Intake
|
1 |
superseded
|
| 3 |
828249 |
GROMMET
|
4 |
|
| 4 |
8M0095456 |
COVER RWC
|
1 |
|
| 5 |
8M2001671 |
GROMMET RWC
|
4 |
|
| 6 |
8M0095455 |
BRACKET
|
1 |
|
| 7 |
892454010 |
SCREW (M6 x 10)
|
4 |
superseded
|
| 8 |
8M0043703 |
DECAL M-Icon, 66 MM, Black
|
1 |
|
| 9 |
8M0085345 |
DECAL Center Cover 4.5L
|
1 |
superseded
|
| 9 |
8M0085346 |
DECAL Center Cover 4.5L Seacore
|
1 |
superseded
|
| NS |
8M0085349 |
DECAL Emissions Control Technology
|
1 |
|
| NS |
8M0085360 |
DECAL Remove Cover
|
1 |
|
| NS |
8M0042965 |
DECAL CARB 4 Star
|
1 |
|
| NS |
8M0096310 |
HARNESS Mercathode 3 Wire RWC
|
1 |
|
