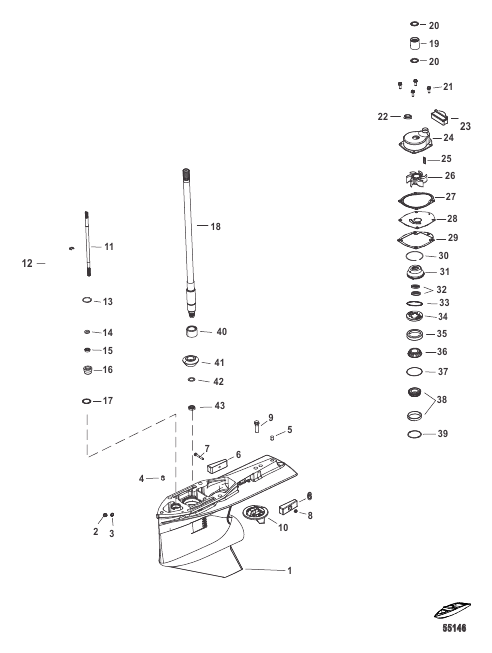

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0088072 |
GEARCASE Complete Long
|
1 |
|
| - |
8M0088074 |
GEARCASE Complete X-Long
|
1 |
|
| - |
8M0090442 |
SKEG
|
1 |
|
| - |
8M0094529 |
COMPLETE WATER PUMP REPAIR KIT
|
1 |
|
| - |
8M0094530 |
REPAIR KIT Water Pump Impeller
|
1 |
disc.
|
| - |
8M0088080 |
GEARCASE SEAL KIT
|
1 |
|
| - |
8M0061040 |
REPAIR KIT Water Pump-Upper
|
1 |
|
| 1 |
8M0091538 |
GEARCASE Basic
|
1 |
|
| 10 |
8M0091534 |
TRIM TAB
|
1 |
superseded
|
| 11 |
8M0069658 |
SHIFT SHAFT Lower, Long
|
1 |
|
| 11 |
8M0053078 |
SHIFT SHAFT Lower, X-Long
|
1 |
|
| 12 |
29641 |
E RING
|
1 |
|
| 13 |
8M0029306 |
RING Retaining
|
1 |
|
| 14 |
77674 |
WASHER (.35 x .75 x .12)
|
1 |
|
| 15 |
8164641 |
SEAL Oil
|
1 |
superseded
|
| 16 |
813696A2 |
BUSHING ASSEMBLY
|
1 |
|
| 17 |
45258 |
O-RING (.987 x .103)
|
1 |
|
| 18 |
8M0090831 |
DRIVESHAFT Long
|
1 |
|
| 18 |
8M0094341 |
DRIVESHAFT X-Long
|
1 |
|
| 19 |
8M0036238 |
COUPLING Water Pump
|
1 |
superseded
|
| 2 |
79953A04 |
PLUG ASSEMBLY (.375-16 x .250)
|
1 |
|
| 20 |
21836 |
O-RING (.796 x .139)
|
2 |
superseded
|
| 21 |
1993720 |
SCREW (M6 x 20)
|
4 |
superseded
|
| 22 |
8M2014338 |
SEAL Face
|
1 |
superseded
|
| 23 |
8M0010459 |
FILLER BLOCK
|
1 |
|
| 24 |
817275A1 |
HOUSING KIT Water Pump
|
1 |
|
| 25 |
8M0032833 |
KEY
|
1 |
superseded
|
| 26 |
43026T2 |
IMPELLER
|
1 |
|
| 27 |
8172771 |
GASKET Water Pump, Upper
|
1 |
|
| 28 |
8172761 |
FACEPLATE
|
1 |
superseded
|
| 29 |
8M0050720 |
GASKET
|
1 |
superseded
|
| 3 |
830749 |
SEAL
|
1 |
superseded
|
| 30 |
880719 |
RING Retaining
|
1 |
|
| 31 |
8M0057748 |
OIL SEAL CARRIER ASSEMBLY
|
1 |
|
| 32 |
89238 |
SEAL Oil
|
2 |
|
| 33 |
896523 |
O-RING (2.175 x .103)
|
1 |
superseded
|
| 34 |
853651 |
RETAINER
|
1 |
|
| 35 |
33138A1 |
BEARING ASSEMBLY Taper Roller
|
1 |
|
| 36 |
NSS |
NOT SOLD SEPARATE
|
1 |
|
| 37 |
8M0063267 |
SHIM SET
|
1 |
|
| 38 |
77420A1 |
BEARING ASSEMBLY Roller
|
1 |
superseded
|
| 39 |
8M0063268 |
SHIM SET
|
1 |
|
| 4 |
8M0084244 |
PIN Dowel, .375 x .620
|
1 |
|
| 40 |
8M0090828 |
BEARING Needle Roller
|
1 |
|
| 41 |
NSS |
NOT SOLD SEPARATE
|
1 |
|
| 42 |
92721 |
WASHER (.965 x .630)
|
1 |
|
| 43 |
8M0071654 |
NUT (.625-18 HX)
|
1 |
|
| 5 |
43044 |
PIN Dowel - Without Hole (.375 x .625)
|
1 |
|
| 6 |
826134Q |
ANODE
|
2 |
|
| 7 |
4000333 |
SCREW (M6 x 40)
|
1 |
|
| 8 |
401386 |
NUT (M6) Stainless Steel
|
1 |
|
| 9 |
806327 |
SCREW (.437-14 x 1.750)
|
1 |
superseded
|
