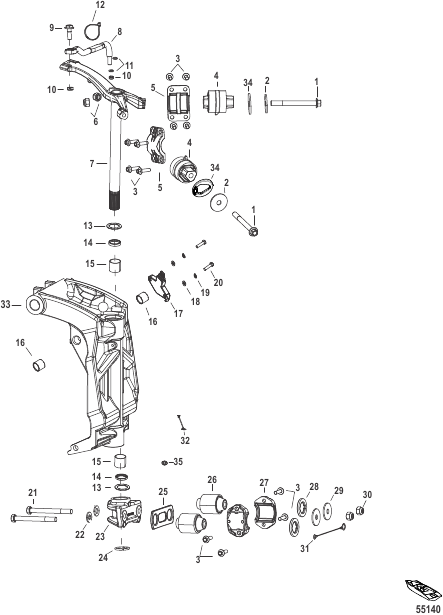

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0088194 |
SCREW (M12 X 120) Hex Flg HD
|
2 |
superseded
|
| 10 |
8M0042636 |
NUT (.375-24) Brass
|
2 |
superseded
|
| 11 |
37828 |
WASHER (.390 x .625 x .062) Stainless Steel
|
2 |
|
| 12 |
816311T |
TIE STRAP (8.00 Inches)
|
1 |
|
| 13 |
816432 |
THRUST WASHER
|
2 |
|
| 14 |
8M0034870 |
SEAL Swivel Tube
|
2 |
|
| 15 |
8M0034861 |
BUSHING Swivel Tube Pivot
|
2 |
superseded
|
| 16 |
821207 |
BUSHING
|
2 |
|
| 17 |
8M0094923 |
SENSOR ASSEMBLY Trim
|
1 |
|
| 18 |
89302 |
WASHER (.203 x .406 x .040)
|
2 |
|
| 19 |
26996 |
LOCKWASHER (#10) Stainless Steel
|
2 |
|
| 2 |
8M0056839 |
WASHER Upper Mount Snubber
|
2 |
|
| 20 |
852368 |
SCREW (#10-24 x .750)
|
2 |
|
| 21 |
40003111 |
SCREW (M12 x 120) Hex HD
|
2 |
|
| 22 |
8M0157383 |
WASHER (26.9 MM x 13.5 MM x 2.7)
|
2 |
|
| 23 |
8M0091533 |
YOKE Bottom
|
1 |
superseded
|
| 24 |
67684 |
RING Retaining
|
1 |
|
| 25 |
8M0084888 |
SNUBBER
|
1 |
|
| 26 |
8M0056573 |
LOWER MOUNT ASSEMBLY
|
2 |
|
| 27 |
8M0056181 |
COVER Lower Mount
|
2 |
|
| 28 |
8M0082052 |
WASHER Snubber
|
2 |
|
| 29 |
8M0075817 |
WASHER (.50 X 1.75 X .125)
|
2 |
|
| 3 |
4010730 |
SCREW (M8 x 30)
|
12 |
superseded
|
| 30 |
897926 |
NUT (M12), Nylon Insert
|
2 |
|
| 31 |
88238A20 |
CABLE ASSEMBLY Ground
|
1 |
|
| 32 |
8M0079640 |
CABLE ASSEMBLY
|
1 |
|
| 33 |
8M0088881 |
SWIVEL BRACKET ASSEMBLY
|
1 |
superseded
|
| 34 |
8M0082326 |
WASHER Snubber
|
1 |
|
| 35 |
73286 |
SCREW (.250-20 x .500) Stainless Steel
|
1 |
|
| 4 |
8M0056774 |
UPPER MOUNT ASSEMBLY
|
2 |
|
| 4 |
8M0096243 |
MOUNTS - UPPER SeaPro
|
2 |
|
| 5 |
8M0056564 |
COVER Upper Mount
|
2 |
|
| 6 |
8M0088290 |
NUT (M12 X 1.75) Hex
|
1 |
|
| 7 |
8M0091530 |
SWIVEL TUBE ASSEMBLY
|
1 |
superseded
|
| 8 |
92876A12 |
LINK ROD ASSEMBLY
|
1 |
|
| 9 |
849838 |
SCREW (.375-24 x 1.250)
|
1 |
|
