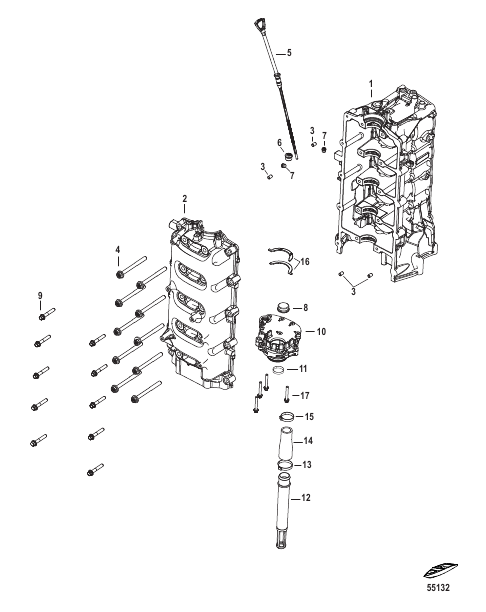

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0090807 |
OIL PICKUP ASSEMBLY
|
1 |
|
| - |
8M0059003 |
LONG BLOCK ASSEMBLY 115, 80 Jet [2B192012] & Below
|
1 |
superseded
|
| - |
8M0122427 |
LONG BLOCK ASSEMBLY 115, 80 Jet [2B192013] & Up
|
1 |
|
| - |
8M0058847 |
LONG BLOCK ASSEMBLY (75 -100 HP) 65 Jet
|
1 |
superseded
|
| - |
8M0090765 |
SHORT BLOCK ASSEMBLY
|
1 |
|
| 1 |
8M0091361 |
CYLINDER BLOCK ASSEMBLY
|
1 |
|
| 10 |
8M0090808 |
OIL PUMP ASSEMBLY
|
1 |
superseded
|
| 11 |
8M6001577 |
O-RING M6 X 46
|
1 |
|
| 12 |
8M0048484 |
OIL PICKUP TUBE ASSEMBLY
|
1 |
disc.
|
| 13 |
8M6000385 |
CLAMP (39.6 MM)
|
1 |
superseded
|
| 14 |
8M0078615 |
HOSE - OIL PICKUP
|
1 |
|
| 15 |
8M6003156 |
CLAMP (34 mm)
|
1 |
|
| 16 |
8M6002402 |
BEARING - THRUST
|
2 |
|
| 17 |
88552545 |
SCREW (M6 x 45 MM) Stainless Steel
|
4 |
superseded
|
| 2 |
NSS |
NOT SOLD SEPARATE
|
1 |
|
| 3 |
893540 |
PIN Dowel, 8x12 long
|
4 |
|
| 4 |
8M0059955 |
SCREW (M10 X 1.5 X 110)
|
10 |
|
| 5 |
8M0060353 |
OIL DIPSTICK ASSEMBLY
|
1 |
|
| 6 |
8M0047995 |
PLUG (18 MM)
|
1 |
superseded
|
| 7 |
8M0048146 |
PLUG (10MM)
|
2 |
superseded
|
| 8 |
8M0047997 |
PLUG (30 MM)
|
1 |
superseded
|
| 9 |
895810050 |
SCREW (M8 x 50)
|
10 |
superseded
|
