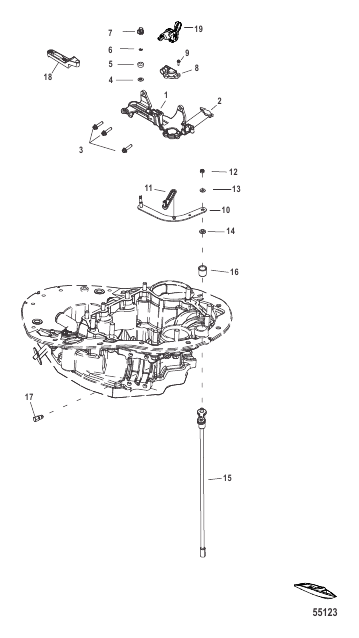

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0058458 |
BRACKET ASSEMBLY Shift Link
|
1 |
|
| 10 |
8M0075152 |
LINK Shift
|
1 |
|
| 11 |
8M0058943 |
LEVER Sensor
|
1 |
|
| 12 |
401386 |
NUT (M6) Stainless Steel
|
1 |
|
| 13 |
35462 |
WASHER (.2656 x .625 x .0625) Stainless Steel
|
1 |
|
| 14 |
8M0035249 |
BUSHING (6.452 MM ID) Flanged
|
1 |
superseded
|
| 15 |
8M0060213 |
SHIFT SHAFT ASSEMBLY
|
1 |
superseded
|
| 16 |
8M0063632 |
BUSHING Flanged
|
1 |
|
| 17 |
888823001 |
SHIFT DETENT ASSEMBLY
|
1 |
|
| 18 |
8M0104795 |
SPACER, SHIFT BRACKET Jet Outboards Only
|
1 |
|
| 19 |
8M0071176 |
LATCH Control Cable
|
1 |
|
| 2 |
899044 |
LATCH
|
1 |
|
| 3 |
88552525 |
SCREW (M6 x 25 MM) Stainless Steel
|
3 |
superseded
|
| 4 |
8M0050560 |
WASHER
|
1 |
|
| 5 |
8M0031453 |
ROLLER
|
1 |
|
| 6 |
27290 |
RING Retaining
|
1 |
|
| 7 |
8M0076452 |
RETAINER ASSEMBLY
|
1 |
superseded
|
| 8 |
8M0181784 |
SENSOR Shift Position
|
1 |
|
| 9 |
4001186 |
SCREW (M4 X 13) Hex Wash HD SS
|
1 |
|
