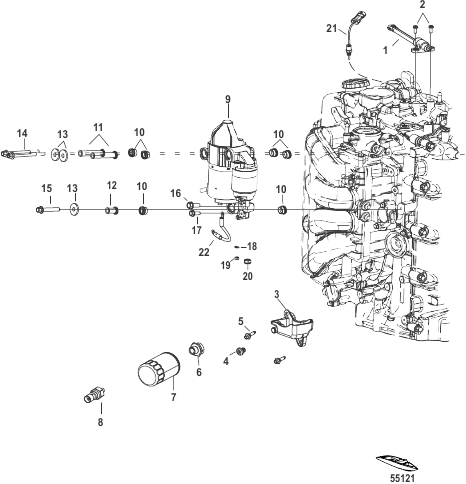

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0082988 |
SENSOR Crankshaft Position
|
1 |
|
| 10 |
8M0070367 |
MOUNT - TUBULAR 8MM
|
6 |
superseded
|
| 11 |
8M0070369 |
SPACER (8.3 I.D. X 11.8 O.D.)
|
2 |
|
| 12 |
8M0070368 |
SPACER (8.3 I.D. X 11.8 O.D.)
|
1 |
|
| 13 |
43430 |
WASHER
|
3 |
|
| 14 |
8M0071509 |
BOLT (M8 X 80) HEX FLG
|
2 |
superseded
|
| 15 |
88552645 |
SCREW (M8X45)
|
1 |
|
| 16 |
40011148 |
SCREW (M8 x 20)
|
1 |
superseded
|
| 17 |
40011126 |
SCREW (M6 x 13) Stainless Steel
|
1 |
|
| 18 |
400255 |
LOCKWASHER (M5)
|
1 |
|
| 19 |
400211 |
NUT (M5) Stainless Steel
|
1 |
|
| 2 |
40011106 |
SCREW (M5 x 13) Stainless Steel
|
2 |
|
| 20 |
401388 |
NUT (M8) Stainless Steel
|
1 |
|
| 21 |
885342002 |
SENSOR ASSEMBLY
|
1 |
superseded
|
| 22 |
8M0056666 |
GROUND STRAP Starter
|
1 |
|
| 3 |
8M0090816 |
TRAY - OIL DRIP
|
1 |
|
| 4 |
8M0049906 |
PLUG Oil Tray
|
1 |
superseded
|
| 5 |
8M0012661 |
SCREW M6 x 14 HEX FLG SS
|
2 |
|
| 6 |
8M0071039 |
FITTING - OIL FILTER
|
1 |
|
| 7 |
8M0162829 |
FILTER Oil Mercury Precision Parts
|
1 |
|
| 7 |
8M0065103 |
FILTER Oil Quicksilver
|
1 |
superseded
|
| 8 |
8M6000634 |
PRESSURE SENSOR
|
1 |
superseded
|
| 9 |
8M0088064 |
STARTER MOTOR
|
1 |
superseded
|
